889038 - Gravely 50" Deck for Pro-Master 300 Mower (SN: 000101 - 010999) Mower Spindles Parts Diagram

50" Deck for Pro-Master 300 Mower

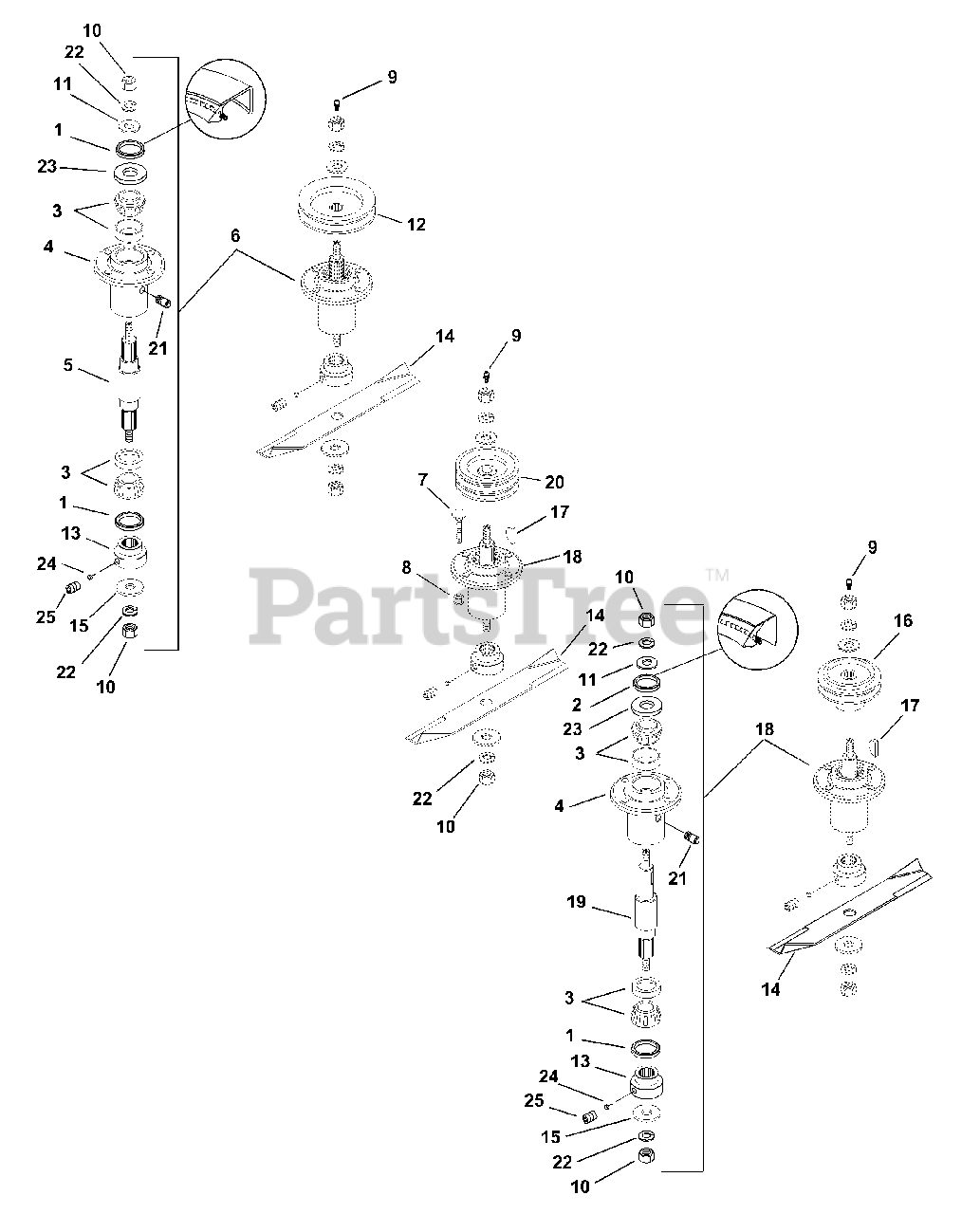

Mower Spindles Parts Diagram

  • Title

1

Gravely 05613000

Seal 1.987 x 1.375 x .313

$17.99

$

In Stock, Qty 19

0

2

Gravely 05611400

Seal 1.987 x 1.500 x .313

$16.99

$

In Stock, only 4 left!

0

3

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

4

Gravely 08894500

Bearing Housing

$

$

Not available

5

Gravely 08898600

Spindle Shaft
(Superseded to 58802800)

$87.99

$

In Stock, Qty 6

0

6

Gravely 58802300

Service Kit Spindle Assembly
(Superseded to 58803600)

$273.99

$

In Stock, only 4 left!

0

7

062242

Bolt-Round Head Square Neck .38-16 x 1.50

$

$

Not available

8

065358

Nut-Locking-Nyl .38-16

$

$

Not available

9

Gravely 411010

Fitting-Lube .125
(Superseded to 07012500)

$4.99

$

In Stock, only 2 left!

0

10

065356

Nut-Hex .625-11 Grade 2

$

$

Not available

11

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .150
(Superseded to 06427400)

$2.99

$

In Stock, Qty 9

0

12

Gravely 08895100

Sheave 60" Mower

$171.99

$

Usually ships in 4-12 days

0

12

Gravely 08894900

Sheave 50" Mower
(Superseded to 58803500)

$122.99

$

Usually ships in 4-12 days

0

13

Gravely 08886500

Hub

$65.99

$

Usually ships in 4-12 days

0

14

Gravely 08979651

Blade, 60" Mower
(Superseded to 08979600)

$35.99

$

In Stock, only 3 left!

0

14

Gravely 08779251

Blade, 50" Mower
(Superseded to 08779200)

$26.99

$

In Stock, only 1 left!

0

15

Gravely 06435200

Washer-Flat .640 x 1.81 x .250
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 08895800

Sheave 60" Mower

$224.99

$

Usually ships in 4-12 days

0

16

Gravely 08895000

Sheave 50" Mower
(Superseded to 08895500)

$

$

Not available

17

Gravely 124553

Key-Woodruff .25 x .88
(Superseded to 06608900)

$3.99

$

In Stock, Qty 15

0

18

Gravely 58802400

Service Kit Spindle Assembly
(Superseded to 58803600)

$273.99

$

In Stock, only 4 left!

0

19

Gravely 08898500

Spindle Shaft
(Superseded to 58802900)

$128.99

$

In Stock, only 2 left!

0

20

Gravely 08896100

Sheave 60" Mower

$303.99

$

Usually ships in 4-12 days

0

20

Gravely 08896600

Sheave 50" Mower

$

$

Not available

21

Gravely 08896800

Relief Fitting Grease

$14.99

$

Usually ships in 4-12 days

0

22

Gravely 06309500

Washer-Locking .625 x .156

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$3.49

$

In Stock, Qty 20+

0

24

Gravely 03191400

Plug

$7.49

$

Usually ships in 4-12 days

0

25

Gravely 06005400

Screw-Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0
