890002 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

60" Deck for Pro-Master 400 Mower

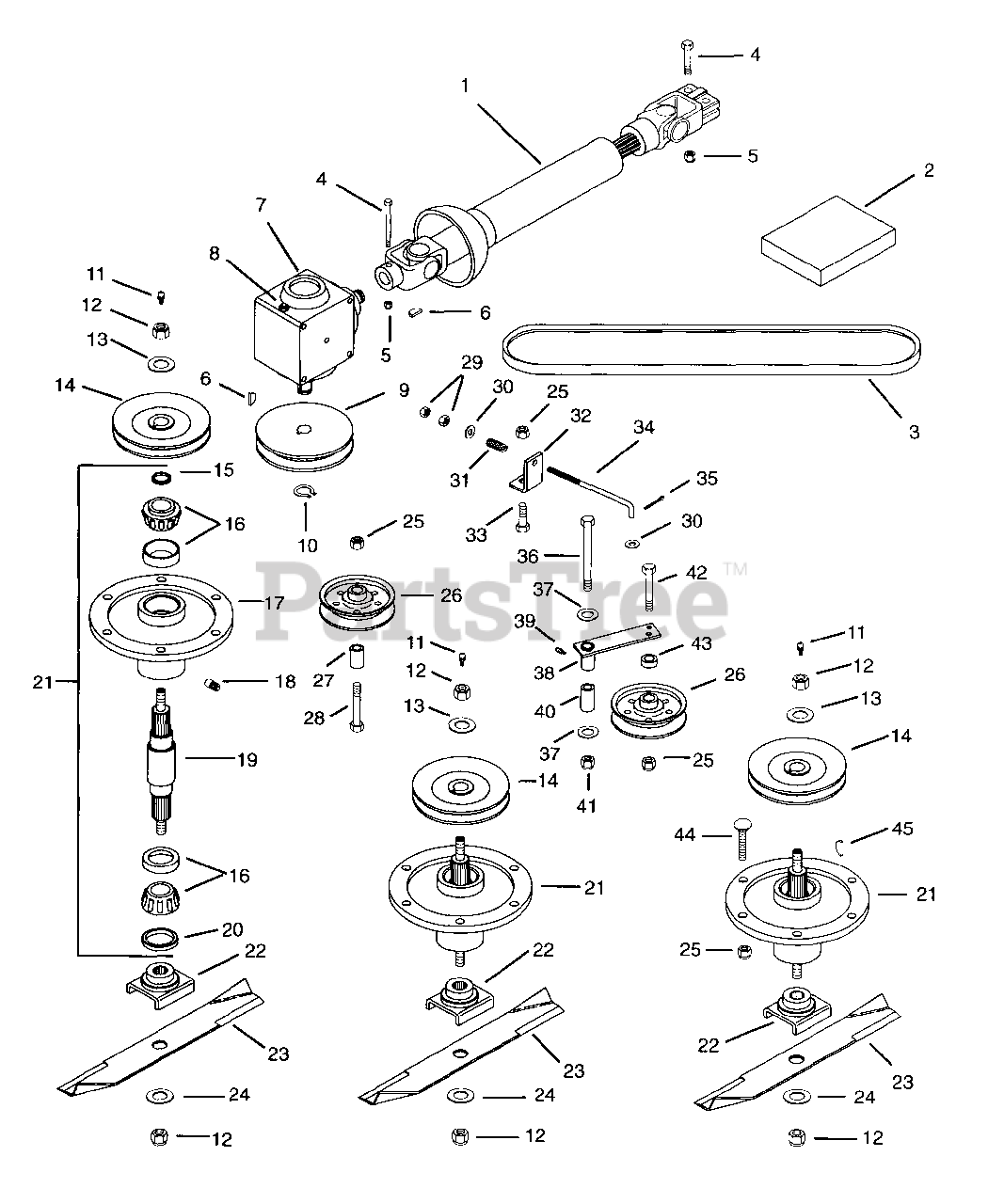

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 09052600

Universal Joint Assembly

$494.99

$

Usually ships in 4-12 days

0

2

Gravely 024560

Kit, Repair U-Joint
(Superseded to 03155800)

$

$

Not available

3

Gravely 07230600

V-Belt A-Section

Note: Model (001)

$96.99

$

In Stock, only 1 left!

0

Gravely 07230500

V-Belt

Note: Models (002,003)

$125.99

$

In Stock, only 1 left!

0

4

Gravely 180089

Bolt-Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 124551

Key-Woodruff .25 x .88
(Superseded to 06608800)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 08956151

Gear Box, Right Angle

$

$

Not available

8

Gravely 048596

Plug, 1/8 Vent
(Superseded to 08984600)

$

$

Not available

9

Gravely 07322800

Sheave, Mower Gearbox

Note: Model (001)

$

$

Not available

Gravely 044896

Sheave, Gearbox
(Superseded to 08957500)

Note: Models (002,003)

$

$

Not available

10

Gravely 022080

Ring-Retaining-External .821 x .078
(Superseded to 05713900)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$4.99

$

In Stock, only 2 left!

0

12

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .150
(Superseded to 06427400)

$2.99

$

In Stock, Qty 9

0

14

Gravely 08893900

Sheave

Note: Model (001)

$

$

Not available

Gravely 08896500

Weldment Sheave

Note: Models (002,003)

$89.99

$

Usually ships in 4-12 days

0

15

Gravely 039971

Seal 1.987 x 1.500 x .313
(Superseded to 05611400)

$16.99

$

In Stock, only 4 left!

0

16

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

17

Gravely 08894500

Bearing Housing

$

$

Not available

18

08296800

Relief Fitting

$

$

Not available

19

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$128.99

$

In Stock, only 4 left!

0

20

Gravely 018447

Seal, 1.206 x 1.785 x .468
(Superseded to 05613200)

$17.99

$

In Stock, only 4 left!

0

21

Gravely 58801700

Service Kit Spindle Assembly
(Superseded to 58803600)

$273.99

$

In Stock, only 4 left!

0

22

Gravely 08798700

Weldment Blade Cradle

$127.99

$

Usually ships in 4-12 days

0

23

Gravely 052928

Blade, Mulching 50" Mower
(Superseded to 08866800)

Note: Model (001)

$33.99

$

In Stock, Qty 20+

0

Gravely 052929

Blade, Mulching 60" Mower
(Superseded to 08866900)

Note: Models (002,003)

$37.99

$

In Stock, Qty 20+

0

24

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$40.99

$

In Stock, Qty 6

0

27

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, Qty 9

0

28

Gravely 180134

Bolt-Hex.38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

30

Gravely 120394

Washer-Flat-Steel .406 x .812 x .062
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$16.99

$

In Stock, only 4 left!

0

32

Gravely 031346

Support, Spring
(Superseded to 08905100)

$17.99

$

Usually ships in 4-12 days

0

33

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 046264

Rod, Idler
(Superseded to 08656800)

$65.99

$

Usually ships in 4-12 days

0

35

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

36

Gravely 05945700

Bolt-Hex .50-13 x 3.375
(Superseded to 05901703)

$6.49

$

In Stock, only 4 left!

0

37

Gravely 120389

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06441000)

$3.49

$

In Stock, only 3 left!

0

38

Gravely 046809

Weldment, Idler Pivot
(Superseded to 08979400)

$156.99

$

In Stock, only 1 left!

0

39

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

40

Gravely 031363

Spacer .505 x.855 x 2.50
(Superseded to 08826500)

$52.99

$

Usually ships in 4-12 days

0

41

Gravely 435507

Nut-Locking .50-13 Grade 5
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

42

Gravely 180128

Bolt-Hex .38 x 1.75 Grade 5
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

43

Gravely 031368

Spacer .516 x .875 x .300
(Superseded to 09036100)

$37.99

$

Usually ships in 4-12 days

0

44

Gravely 06205600

Bolt-Round Head Square Neck .38-16 x 1.50
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

45

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 15

0
