890002 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

60" Deck for Pro-Master 400 Mower

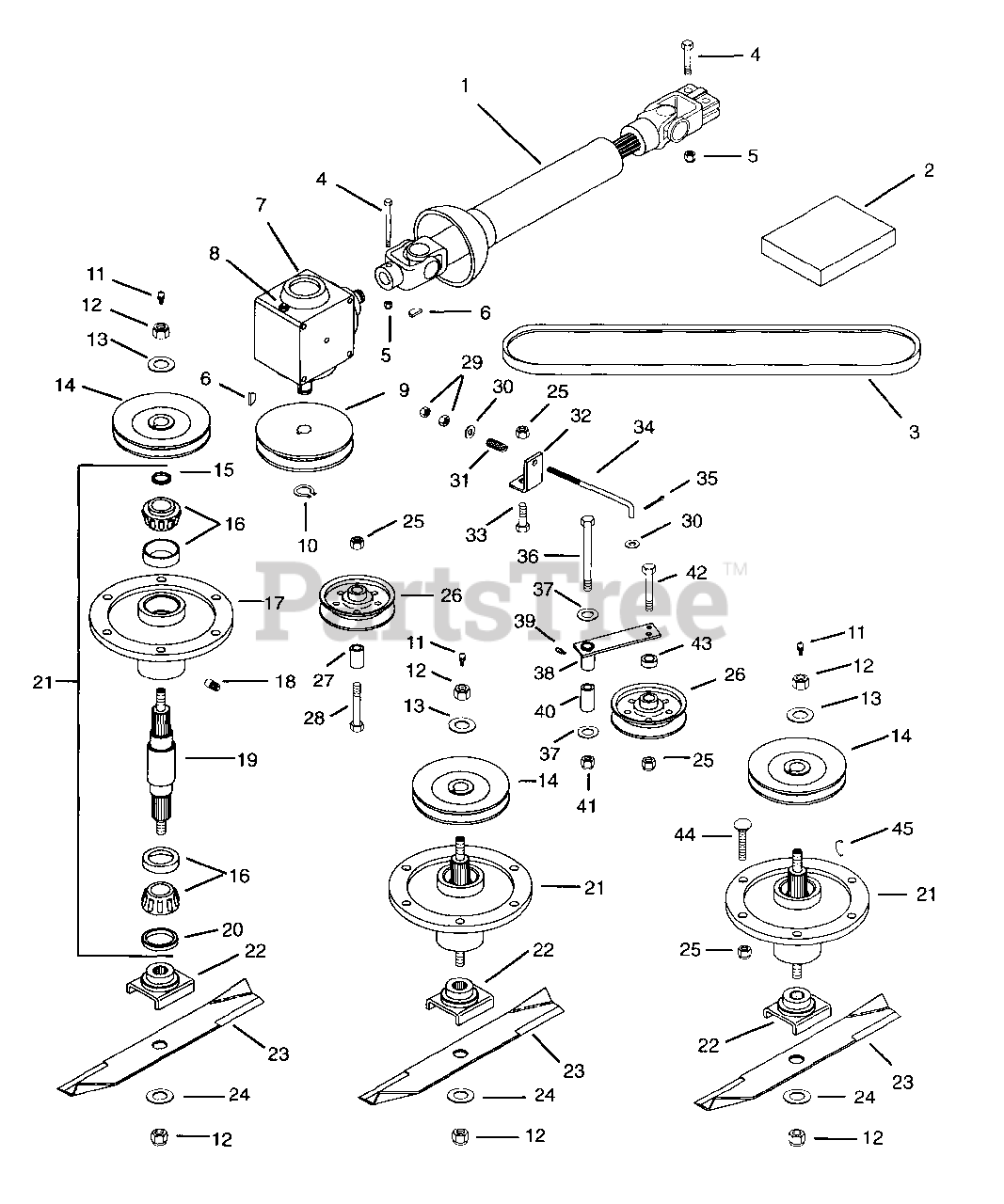

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 09052600

UNIVERSAL JOINT ASS'Y

$494.99

$

Usually ships in 4-12 days

0

2

Gravely 024560

JOURNAL CROSS & BEARING ASSEMB
(Superseded to 03155800)

$

$

Not available

3

Gravely 07230600

V-BELT, HA-RAW EDGE

Note: Model (001)

$101.99

$

Usually ships in 4-12 days

0

Gravely 07230500

V-BELT, HB-RAW EDGE

Note: Models (002,003)

$

$

Not available

4

Gravely 180089

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$2.99

$

In Stock, Qty 9

0

5

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

6

Gravely 124551

KEY-WDRF .25X.875 HRD #A
(Superseded to 06608800)

$4.99

$

In Stock, Qty 11

0

7

Gravely 08956151

GEARBOX, RIGHT ANGLE 1:1

$

$

Not available

8

Gravely 048596

PLUG,1/8 VENT
(Superseded to 08984600)

$

$

Not available

9

Gravely 07322800

SHEAVE, MWR GEARBOX

Note: Model (001)

$

$

Not available

Gravely 044896

SHEAVE,GEARBOX
(Superseded to 08957500)

Note: Models (002,003)

$

$

Not available

10

Gravely 022080

RG-RTNG-EXT .821X.078
(Superseded to 05713900)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$5.49

$

In Stock, Qty 11

0

12

Gravely 124589

NUT-HEX .62-11 YWZC
(Superseded to 06535600)

$3.49

$

In Stock, only 3 left!

0

13

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$3.49

$

In Stock, Qty 6

0

14

Gravely 08893900

SHEAVE

Note: Model (001)

$

$

Not available

Gravely 08896500

WELD'M SHEAVE

Note: Models (002,003)

$94.99

$

Usually ships in 4-12 days

0

15

Gravely 039971

SEAL 1.987 X1.500 X.313
(Superseded to 05611400)

$17.99

$

In Stock, only 3 left!

0

16

Gravely 038199

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$30.99

$

In Stock, Qty 15

0

17

Gravely 08894500

BEARING HOUSING

$

$

Not available

18

Gravely 08896800

RELIEF FITTING-GREASE

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 034603

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802900)

$134.99

$

In Stock, Qty 6

0

20

Gravely 018447

SEAL 1.206X1.785X.486
(Superseded to 05613200)

$18.99

$

In Stock, only 3 left!

0

21

Gravely 58801700

SERVICE KIT SPINDLE ASSEMBLY
(Superseded to 58803600)

$286.99

$

In Stock, Qty 7

0

22

Gravely 08798700

WELD'M BLADE CRADLE

$133.99

$

Usually ships in 4-12 days

0

23

Gravely 052928

BLD,MULCHING 50" MWR
(Superseded to 08866800)

Note: Model (001)

$34.99

$

In Stock, Qty 13

0

Gravely 052929

BLADE, MULCHING (20.50")
(Superseded to 08866900)

Note: Models (002,003)

$38.99

$

In Stock, Qty 6

0

24

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 021060

PLY-IDLER 4.00X.380
(Superseded to 07314800)

$43.99

$

In Stock, Qty 10

0

27

Gravely 038696

BSHG-SLV .407X.625X.750 PL
(Superseded to 05525700)

$7.99

$

In Stock, Qty 20+

0

28

Gravely 180134

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$17.99

$

In Stock, only 3 left!

0

32

Gravely 031346

SPRT,SPRING "B"
(Superseded to 08905100)

$18.99

$

Usually ships in 4-12 days

0

33

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 046264

ROD,IDLER
(Superseded to 08656800)

$68.99

$

Usually ships in 4-12 days

0

35

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 05945700

BLT-HEX .50-13 X 4.00
(Superseded to 05901703)

$6.99

$

In Stock, only 1 left!

0

37

Gravely 120389

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$4.99

$

In Stock, only 3 left!

0

38

Gravely 046809

WLDMT,IDLER PIVOT
(Superseded to 08979400)

$164.99

$

Usually ships in 4-12 days

0

39

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

40

Gravely 031363

SPACER .505X.855X2.50
(Superseded to 08826500)

$55.99

$

Usually ships in 4-12 days

0

41

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

42

Gravely 180128

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0

43

Gravely 031368

SPACER .516X.875X.300
(Superseded to 09036100)

$39.99

$

Usually ships in 4-12 days

0

44

Gravely 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$5.49

$

In Stock, Qty 20+

0

45

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$4.99

$

In Stock, Qty 9

0
