890005 - Gravely 50" Deck for Pro-Master 400 Mower (SN: 000101 & Above) 50" MOWER DECK - SIDE DISCHARGE Parts Diagram

50" Deck for Pro-Master 400 Mower

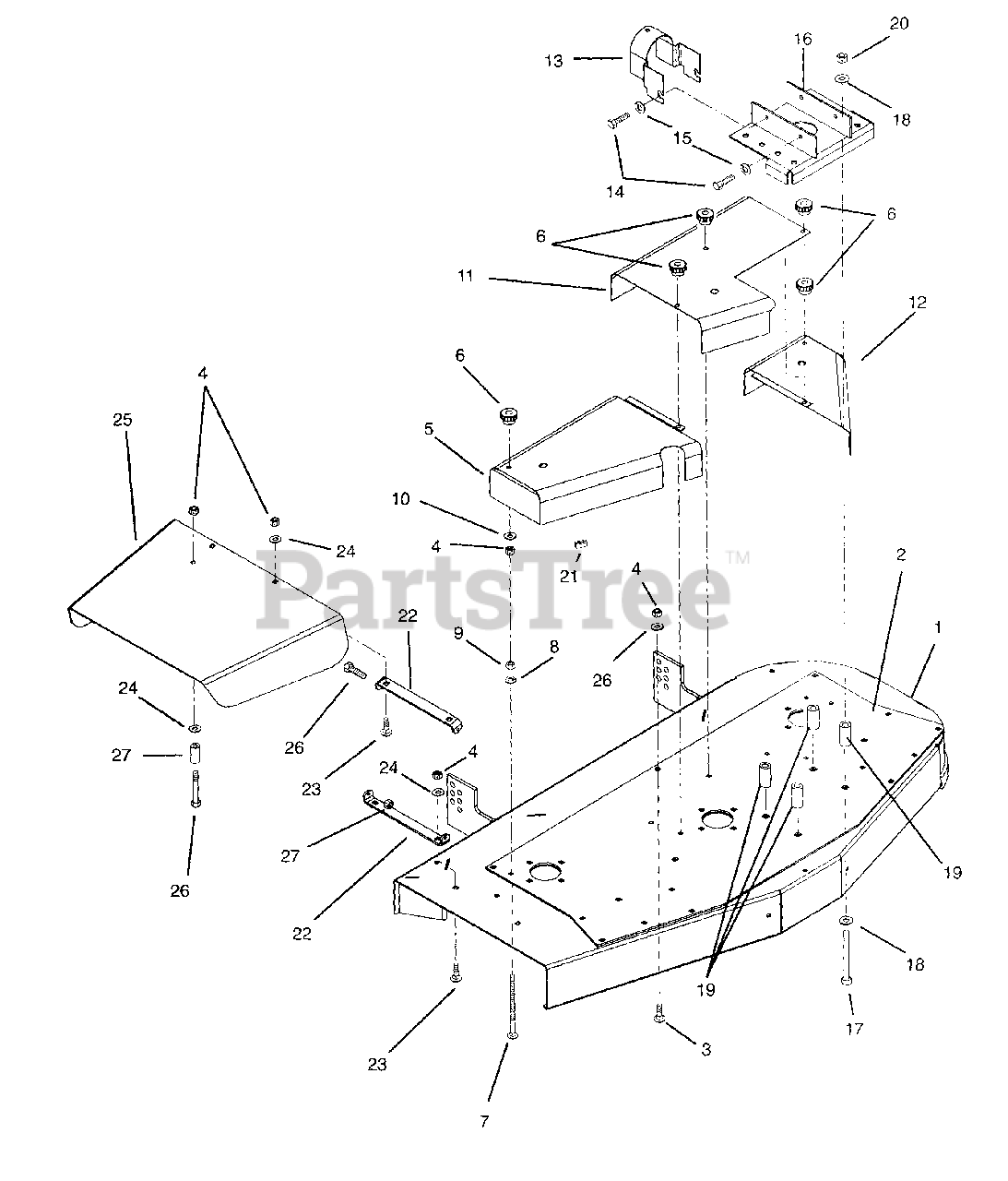

50" MOWER DECK - SIDE DISCHARGE Parts Diagram

  • Title

1

Gravely 09075200

WELDMENT, 50" MOWER DECK

$239.99

$

Usually ships in 4-12 days

0

2

Gravely 09077700

PLATE, REINFORCING 50" DECK

$113.99

$

Usually ships in 4-12 days

0

3

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09077400

COVER, BELT RH 50"

$31.99

$

Usually ships in 4-12 days

0

6

Gravely 07526600

KNOB
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06222500

BLT-RDHDSQNKFT.312-18X4.0 G5YZ

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

10

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 09076200

COVER, BELT MIDDLE 50"

$31.99

$

Usually ships in 4-12 days

0

12

Gravely 09077300

COVER, BELT LH 50"

$19.99

$

Usually ships in 4-12 days

0

13

Gravely 09062600

SHIELD, U-JOINT

$

$

Not available

14

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09076400

WLDMT, GEARBOX MOUNT

$68.99

$

Usually ships in 4-12 days

0

17

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

18

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 08981000

SPACER .562X1.00X2.00

$29.99

$

Usually ships in 4-12 days

0

20

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

21

Gravely 00914700

TRIM-BULK

$

$

Not available

22

Gravely 08827600

BRKT,CHUTE
(Superseded to 08827653)

$

$

Not available

23

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 09078800

CHUTE, DISCHARGE 50"

$45.99

$

Usually ships in 4-12 days

0

26

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 16

0

27

Gravely 05525700

BSHG-SLV .407X.625X.750 PL

$7.49

$

In Stock, Qty 19

0
