890006 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) 60" MOWER DECK - SIDE DISCHARGE Parts Diagram

60" Deck for Pro-Master 400 Mower

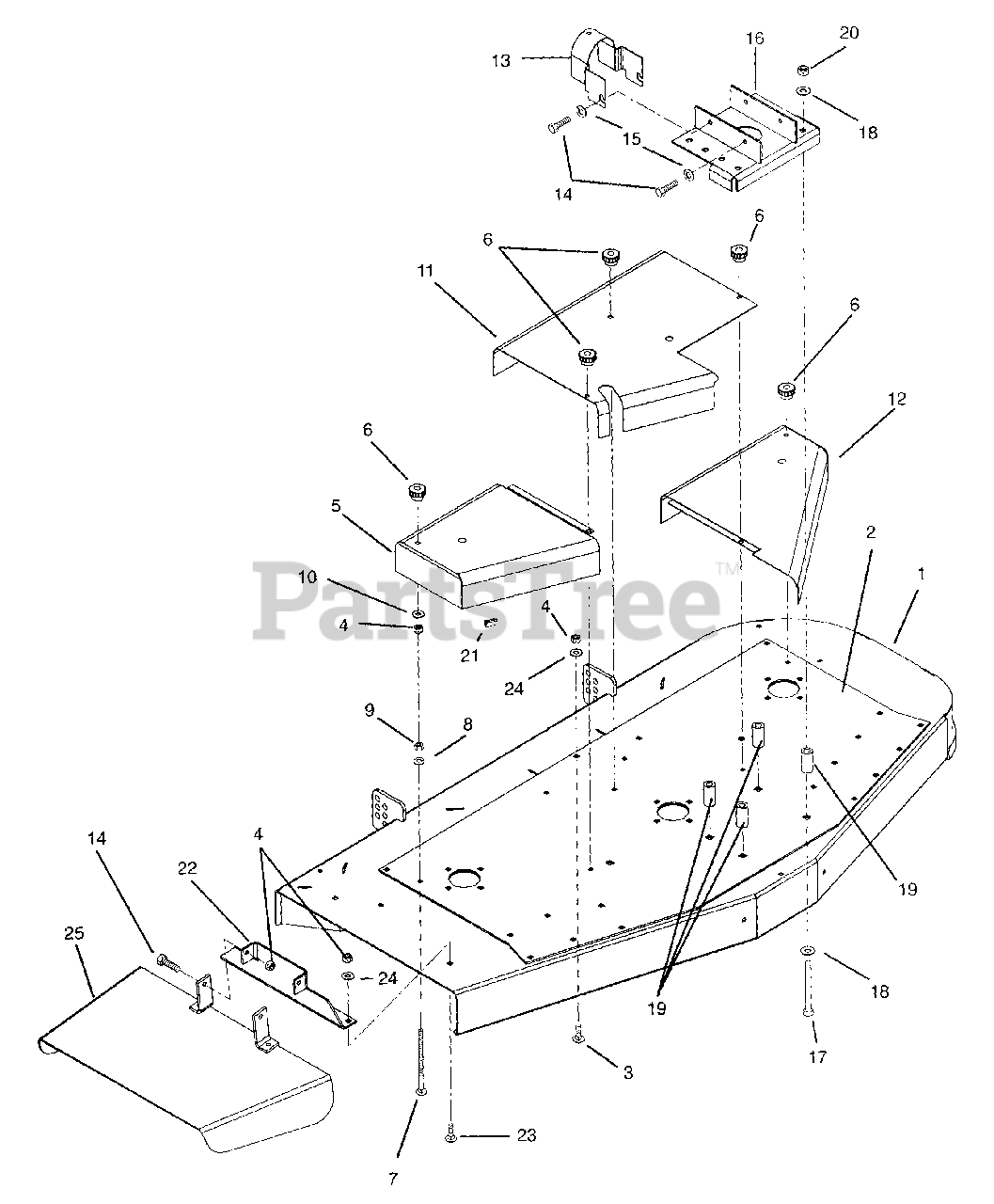

60" MOWER DECK - SIDE DISCHARGE Parts Diagram

  • Title

1

Gravely 09075500

Weldment, 60" Rear Discharge

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 09077600

Plate, Reinforcing 60" Deck

$113.99

$

Usually ships in 4-12 days

0

3

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75 Grade 2
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09077200

Cover, Belt Right Hand 60"

$43.99

$

Usually ships in 4-12 days

0

6

Gravely 07526600

Knob
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

7

Gravely 06222500

Bolt-Round Head Square Neck .312-18 x 4.0

$3.99

$

In Stock, only 4 left!

0

8

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

10

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

11

Gravely 09076100

Cover, Belt Middle 60"

$19.99

$

Usually ships in 4-12 days

0

12

Gravely 09077100

Cover, Belt Left Hand 60"

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 09062600

Shield, U-Joint

$

$

Not available

14

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

16

Gravely 09076400

Weldment, Gearbox

$66.99

$

Usually ships in 4-12 days

0

17

Gravely 05965800

Bolt-Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

18

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 08981000

Spacer .562 x 1.00 x 2.00

$27.99

$

Usually ships in 4-12 days

0

20

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

21

Gravely 00914700

Trim Bumper

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 08990400

Bracket, Discharge Chute

$54.99

$

Usually ships in 4-12 days

0

23

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 2
(Superseded to 06223600)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 09081600

Weldment, Discharge Chute 60"

$68.99

$

Usually ships in 4-12 days

0
