890006 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) MOWER DRIVE Parts Diagram

60" Deck for Pro-Master 400 Mower

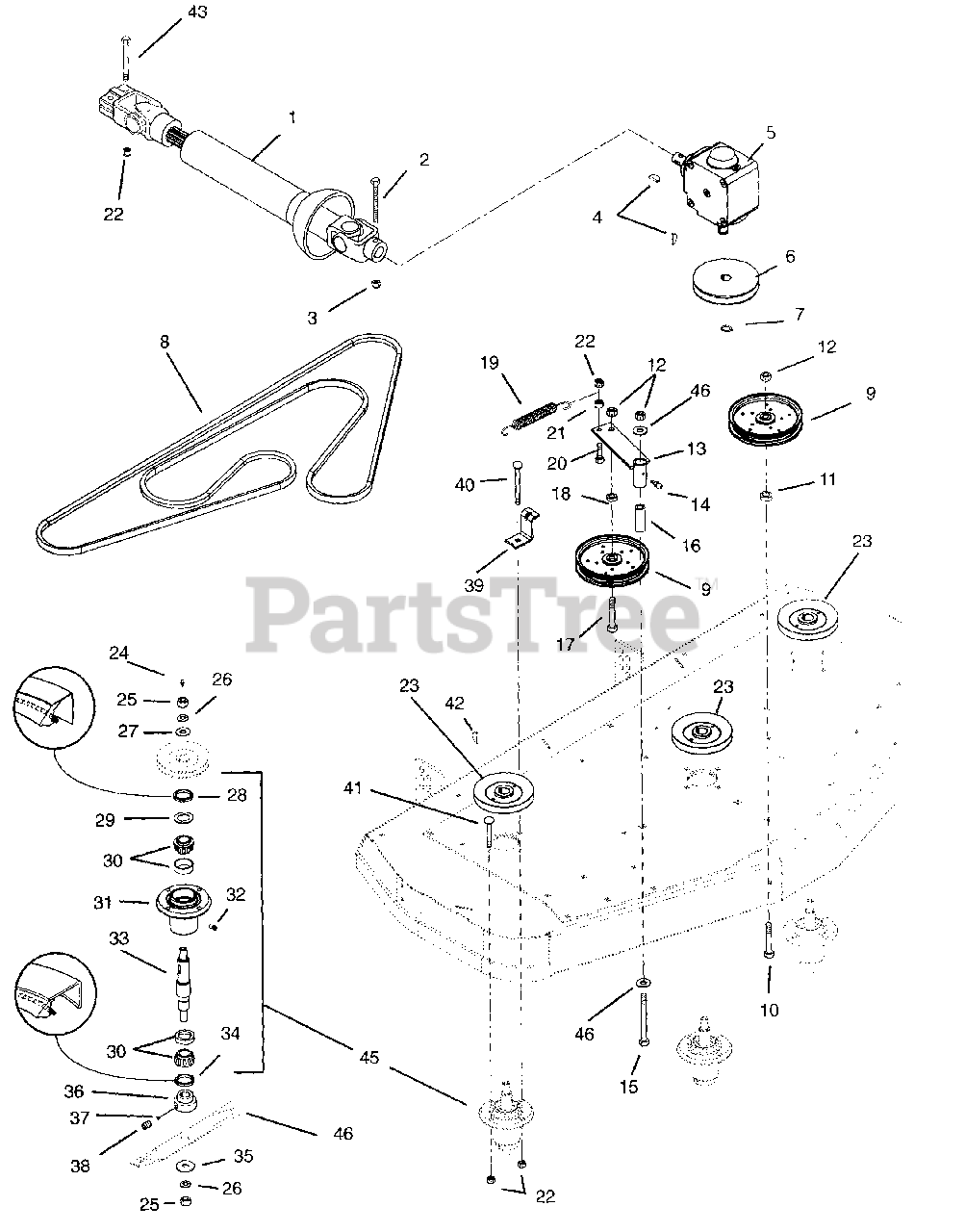

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 09052600

UNIVERSAL JOINT ASS'Y

$494.99

$

Usually ships in 4-12 days

0

2

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$2.99

$

In Stock, Qty 9

0

3

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 06608800

KEY-WDRF .25X.875 HRD #A

$4.99

$

In Stock, Qty 11

0

5

Gravely 09074000

GEARBOX, RIGHT ANGLE 1:1.025
(Superseded to 08956151)

$

$

Not available

6

Gravely 08957500

SHEAVE,GEARBOX

Note: (Models 006, 007)

$

$

Not available

Gravely 07322800

SHEAVE, MWR GEARBOX

Note: (Model 005)

$

$

Not available

7

Gravely 05713900

RG-RTNG-EXT .821X.078

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 07230500

V-BELT, HB-RAW EDGE

Note: (Models 006, 007)

$

$

Not available

Gravely 07230600

V-BELT, HA-RAW EDGE

Note: (Model 005)

$101.99

$

Usually ships in 4-12 days

0

9

Gravely 07316700

IDLER-FLAT-PLY 6.75X.510

Note: (Models 006, 007)

$68.99

$

In Stock, only 3 left!

0

Gravely 07314800

PLY-IDLER 4.00X.380

Note: (Model 005)

$43.99

$

In Stock, Qty 10

0

10

Gravely 05965500

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 08980600

SPACER .562X.975X1.00 ST

$

$

Not available

12

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$5.49

$

In Stock, Qty 17

0

13

Gravely 08979400

WLDMT,IDLER PIVOT

$164.99

$

Usually ships in 4-12 days

0

14

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

15

Gravely 05960100

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 08026500

MAINT. KIT LABEL

$

$

Not available

17

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$4.99

$

In Stock, Qty 19

0

18

Gravely 09036100

SPACER .516X.875X.300

$39.99

$

Usually ships in 4-12 days

0

19

Gravely 08334100

SG-TENS .120 X .845 X 6.50
(Superseded to 08300728)

$29.99

$

In Stock, Qty 20+

0

20

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 08896500

WELD'M SHEAVE

Note: (Models 006, 007)

$94.99

$

Usually ships in 4-12 days

0

Gravely 08893900

SHEAVE

Note: (Model 005)

$

$

Not available

24

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

25

Gravely 06535600

NUT-HEX .62-11 YWZC

$3.49

$

In Stock, only 3 left!

0

26

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.99

$

In Stock, only 2 left!

0

27

Gravely 06427400

WSHR-FL-STL .687X1.312X.15 YWZ

$3.49

$

In Stock, Qty 6

0

28

Gravely 05611400

SEAL 1.987 X1.500 X.313

$17.99

$

In Stock, only 3 left!

0

29

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$4.99

$

In Stock, Qty 20+

0

30

Gravely 21245800

ASM,BEARING CUP&CONE
(Superseded to 00145555)

$30.99

$

In Stock, Qty 15

0

31

Gravely 08894500

BEARING HOUSING

$

$

Not available

32

Gravely 08896800

RELIEF FITTING-GREASE

$14.99

$

Usually ships in 4-12 days

0

33

Gravely 08898500

SPINDLE SHAFT
(Superseded to 58802900)

$134.99

$

In Stock, Qty 6

0

34

Gravely 05613000

SEAL 1.987X1.375X.313

$18.99

$

In Stock, only 2 left!

0

35

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$5.49

$

In Stock, Qty 20+

0

36

Gravely 08886500

HUB

$68.99

$

Usually ships in 4-12 days

0

37

Gravely 03191400

PLUG

$7.99

$

Usually ships in 4-12 days

0

38

Gravely 06005400

SCR-SET .25-20X.25 SKHCUPDL

$4.99

$

In Stock, only 1 left!

0

39

Gravely 09075800

ANCHOR, SPRING
(Superseded to 09245353)

$44.99

$

Usually ships in 4-12 days

0

40

Gravely 06220500

BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$4.99

$

In Stock, Qty 8

0

41

Gravely 06221400

BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

$3.49

$

In Stock, Qty 20+

0

42

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$4.99

$

In Stock, Qty 9

0

43

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

44

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

45

Gravely 68800500

SPINDLE ASSEMBLY
(Superseded to 58803600)

Note: (Contains one ea. of items 28, 29, 31-34; two ea. of item 30)

$286.99

$

In Stock, Qty 7

0

46

Gravely 79000600

BLADE KIT, PM-360 60"

$

$

Not available

Gravely 79000700

BLADE KIT, PM-360 60" CE

$

$

Not available

Gravely 79000800

BLADE KIT, PM-360 50"

$

$

Not available

Gravely 79000900

BLADE KIT, PM-360 50" CE

$

$

Not available
