890006 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) WHEELS, ROLLERS, HEIGHT ADJUSTMENTS Parts Diagram

60" Deck for Pro-Master 400 Mower

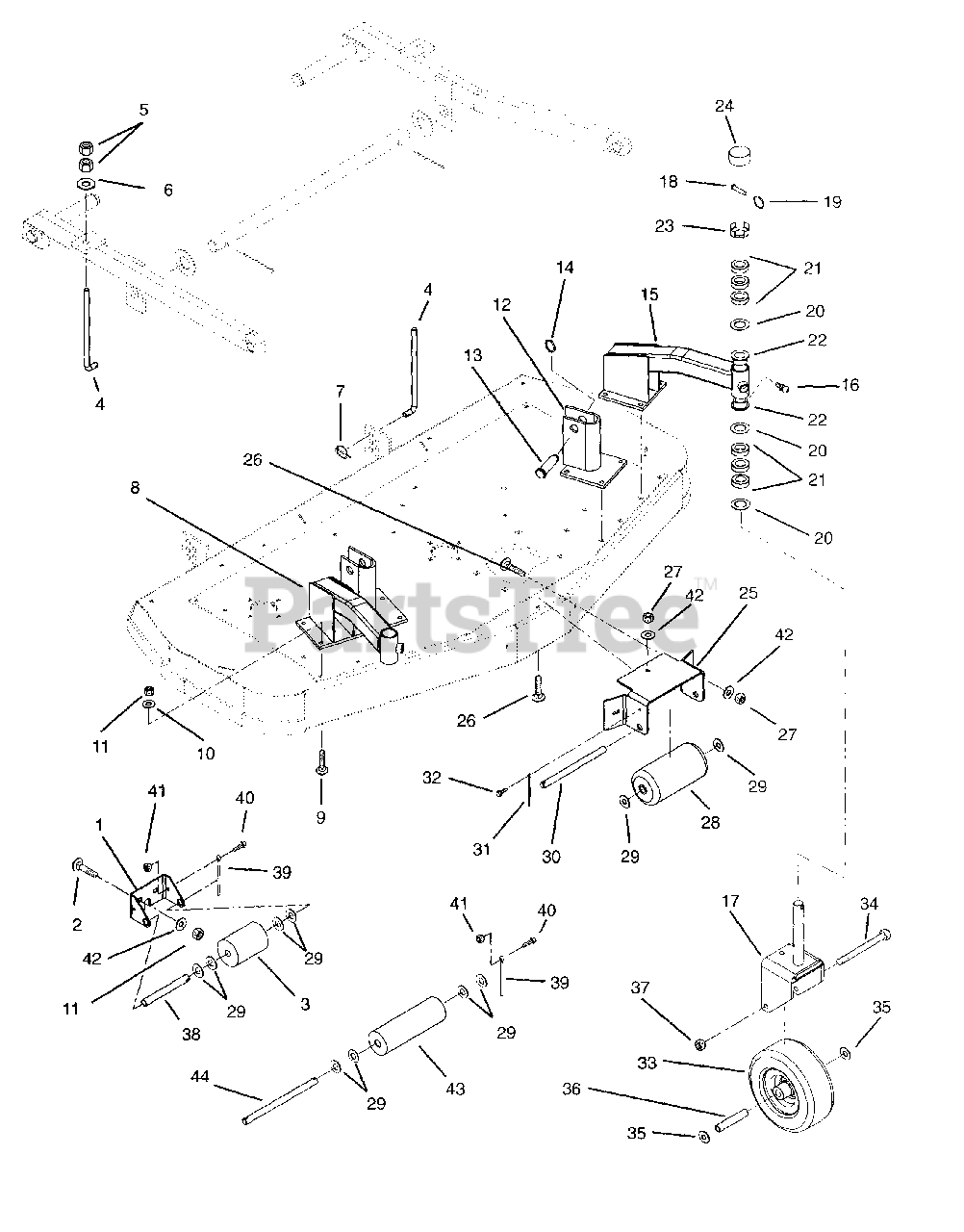

WHEELS, ROLLERS, HEIGHT ADJUSTMENTS Parts Diagram

  • Title

1

Gravely 08966800

Bracket-Roller
(Superseded to 08966853)

Note: (Model 005)

$

$

Not available

2

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75 Grade 2
(Superseded to 06223900)

Note: (Model 005)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 07520100

Roller-Gauge

Note: (Model 005)

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 09080500

Rod, Rear Height Adjuster

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07014500

Pin-Klik 1.000 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 09076300

Right Hand Lift Arm

$74.99

$

Usually ships in 4-12 days

0

9

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2
(Superseded to 06224100)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

Note: (Models 006, 007)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

Note: (Model 005)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09081300

Lift Arm Mount Weldment, Left Hand

Note: (Models 006, 007)

$

$

Not available

12

Gravely 09075700

Weldment, Lift Arm Mount Left Hand 50"

Note: (Model 005)

$68.99

$

Usually ships in 4-12 days

0

13

Gravely 06815200

Pin-Clevis .875 x 3.00

$

$

Not available

14

Gravely 05718100

Ring-Retaining-External 1.062 x 1.25

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 09081400

Support Arm Weldment

Note: (Models 006, 007)

$45.99

$

Usually ships in 4-12 days

0

16

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

17

Gravely 09058200

Weldment, Caster Fork

$187.99

$

Usually ships in 4-12 days

0

18

Gravely 06815300

Pin-Clevis .309 x 1.625 Grade 5

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 05718100

Ring-Retaining-External 1.062 x 1.25

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 06435300

Washer-Hardened-Thrust 1.00 1.55 x .03

$4.99

$

In Stock, only 4 left!

0

21

Gravely 05519500

Bushing-Sleeve 1.04 x 1.75 x .500
(Superseded to 05519553)

$17.99

$

In Stock, Qty 7

0

22

Gravely 05520100

Bushing-Flange 1.020 x 1.385 x .75 x 1.75 Nylon

$10.99

$

In Stock, Qty 20+

0

23

Gravely 01535100

Spindle Cup

$

$

Not available

24

Gravely 00337700

Hub Cap

$2.99

$

In Stock, only 2 left!

0

25

Gravely 09075100

Anti-Scalp Roller Bracket

$22.99

$

In Stock, only 1 left!

0

26

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 09078100

Roller

$47.99

$

In Stock, only 3 left!

0

29

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

Note: (Model 006)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

Note: (Model 005)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

Note: (Model 007)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 09075300

Pin

$38.99

$

In Stock, only 4 left!

0

31

Gravely 06713900

Pin-Cotter .25 x 2.25
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 07147200

Wheel
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

34

Gravely 05964100

Bolt-Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

35

Gravely 06413300

Washer-Hardened-Thrust .760 x 1.25 x .094

$5.99

$

In Stock, only 2 left!

0

36

Gravely 09081500

Bearing .750 x .532 x 3.94

$39.99

$

Usually ships in 4-12 days

0

37

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

38

Gravely 08966900

Rod

Note: (Model 005)

$56.99

$

Usually ships in 4-12 days

0

39

Gravely 06713100

Pin-Cotter .25 x 2.00
(Superseded to 06700213)

Note: (Model 005)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 06713100

Pin-Cotter .25 x 2.00
(Superseded to 06700213)

Note: (Model 006)

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

Note: (Model 005)

$0.99

$

In Stock, Qty 12

0

40

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

Note: (Model 006)

$0.99

$

In Stock, Qty 12

0

41

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

Note: (Model 005)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

Note: (Model 006)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

Note: (Models 006, 007)

$1.49

$

In Stock, Qty 16

0

42

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

Note: (Model 005)

$1.49

$

In Stock, Qty 16

0

43

Gravely 08803300

Roller, Gauge

Note: (Model 006)

$37.99

$

In Stock, only 3 left!

0

44

Gravely 08598800

Shaft, Center Roller

Note: (Model 006)

$60.99

$

In Stock, only 2 left!

0
