890007 - Gravely 60" Deck for Pro-Master 350 Mower (SN: 000101 & Above)

60" Deck for Pro-Master 350 Mower

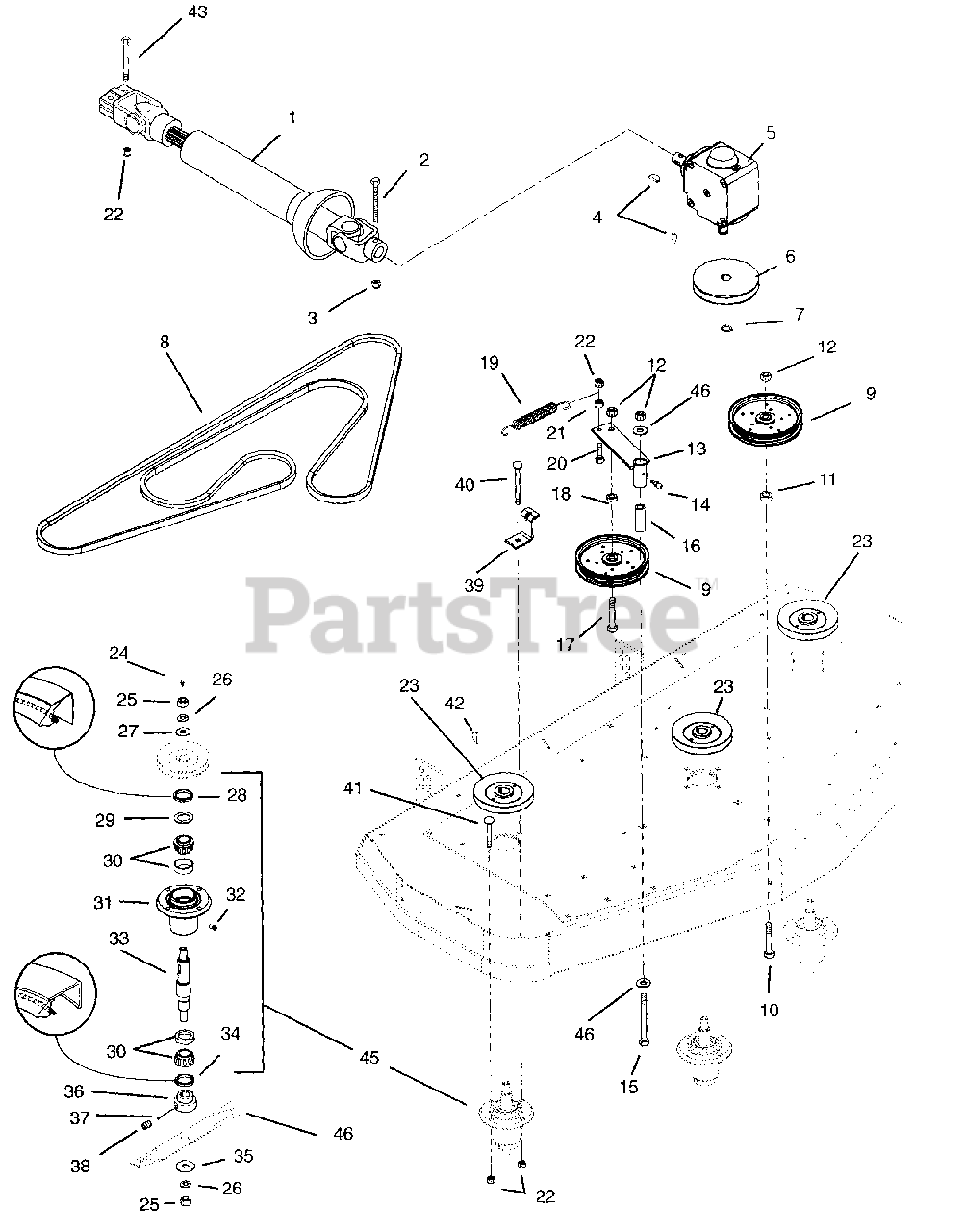

890007 - Gravely 60" Deck for Pro-Master 350 Mower (SN: 000101 & Above) > Parts Diagrams (4) > MOWER DRIVE

  • Title
09052600

1

Universal Joint Assembly

Part# 09052600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $462.16

05963700

2

Bolt-Hex .31-18 x 2.25 Grade 5

Part# 05963700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06529800

3

Nut-Locking-Center .31-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06608800

4

Key-Woodruff .25 x .875

Part# 06608800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

09074000

5

Gearbox, Right Angle 1:1.025

Part# 09074000 (Superseded to 08956151)

OEM Warranty Repair Part for Gravely

Not available

08957500

6

Sheave, Gearbox

Part# 08957500

Note: (Models 006, 007)

OEM Warranty Repair Part for Gravely

Not available

07322800

6

Sheave, Gearbox

Part# 07322800

Note: (Model 005)

OEM Warranty Repair Part for Gravely

Not available

05713900

7

Ring-Retaining-External .821 x .078

Part# 05713900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07230500

8

V-Belt, BRMA 77.50 x .672

Part# 07230500

Note: (Models 006, 007)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $77.09

07230600

8

V-Belt, A-RMA 59.40 x 17/32

Part# 07230600

Note: (Model 005)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $61.43

07316700

9

Idler-Flat-Pulley 6.75 x .510

Part# 07316700

Note: (Models 006, 007)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $62.55

07314800

9

Pulley-Idler 4.00 x .380

Part# 07314800

Note: (Model 005)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $28.84

05965500

10

Bolt-Hex .50-13 x 2.75 Grade 5

Part# 05965500

OEM Warranty Repair Part for Gravely

Not available

08980600

11

Spacer .562 x .975 x 1.00 Steel

Part# 08980600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06536300

12

Nut-Locking-Center .50-13

Part# 06536300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08979400

13

Weldment, Idler Pivot

Part# 08979400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $111.86

07012600

14

Fitting-Lube .25-28 x .256

Part# 07012600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05960100

15

Bolt-Hex .50-13 x 3.75 Grade 5

Part# 05960100

OEM Warranty Repair Part for Gravely

Not available

08026500

16

Spacer .505 x .855 x 2.50

Part# 08026500

OEM Warranty Repair Part for Gravely

Not available

05960000

17

Bolt-Hex .50-13 x 3.25 Grade 5

Part# 05960000

OEM Warranty Repair Part for Gravely

Not available

09036100

18

Spacer .516 x .875 x .300

Part# 09036100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

08334100

19

Spring-Tension .120 x .845 x 6.50

Part# 08334100 (Superseded to 08300507)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

05948700

20

Bolt-Hex .38-16 x 1.00 Grade 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06529400

21

Nut-Hex .38-16

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06529600

22

Nut-Locking-Center .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

08896500

23

Weldment Sheave

Part# 08896500

Note: (Models 006, 007)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $72.50

08893900

23

Sheave

Part# 08893900

Note: (Model 005)

OEM Warranty Repair Part for Gravely

Not available

07012600

24

Fitting-Lube .25-28 x .256

Part# 07012600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06535600

25

Nut-Hex .62-11

Part# 06535600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06309500

26

Washer-Locking .62 x .156

Part# 06309500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06427400

27

Washer-Flat-Steel .687 x 1.312 x .150

Part# 06427400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05611400

28

Seal 1.987 x 1.500 x .313

Part# 05611400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

06416600

29

Washer-Flat-Steel 1.007 x 1.542 x .062

Part# 06416600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.47

21245800

30

Assembly, Bearing Cup and Cone

Part# 21245800

OEM Warranty Repair Part for Gravely

Not available

08894500

31

Bearing Housing

Part# 08894500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $94.97

08896800

32

Relief Fitting-Grease

Part# 08896800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

08898500

33

Shaft Spindle

Part# 08898500 (Superseded to 58802900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $110.63

05613000

34

Seal 1.987 x 1.375 x .313 Cross

Part# 05613000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06435200

35

Washer

Part# 06435200 (Superseded to 06400829)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08886500

36

Hub

Part# 08886500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

03191400

37

Plug

Part# 03191400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.86

06005400

38

Screw Set .25-20 x .25

Part# 06005400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

09075800

39

Anchor, Spring

Part# 09075800 (Superseded to 09245353)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.45

06220500

40

Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5

Part# 06220500 (Superseded to 06224300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06221400

41

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5

Part# 06221400 (Superseded to 06224100)

OEM Warranty Repair Part for Gravely

Not available

06608900

42

Key-Woodruff .25 x 1

Part# 06608900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05957900

43

Bolt-Hex .38-16 x 1.50 Grade 5

Part# 05957900

OEM Warranty Repair Part for Gravely

Not available

06441900

44

Washer-Flat-Steel .531 x 1.06 x .095

Part# 06441900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

68800500

45

Spindle Assembly

Part# 68800500 (Superseded to 58803600)

Note: (Contains one ea. of items 28, 29, 31-34; two ea. of item 30)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36

79000600

46

Blade Kit, PM-360 60"

Part# 79000600

OEM Warranty Repair Part for Gravely

Not available

79000700

46

Blade Kit, PM-360 60" CE

Part# 79000700

OEM Warranty Repair Part for Gravely

Not available

79000800

46

Blade Kit, PM-360 50"

Part# 79000800

OEM Warranty Repair Part for Gravely

Not available

79000900

46

Blade Kit, PM-360 50" CE

Part# 79000900

OEM Warranty Repair Part for Gravely

Not available
