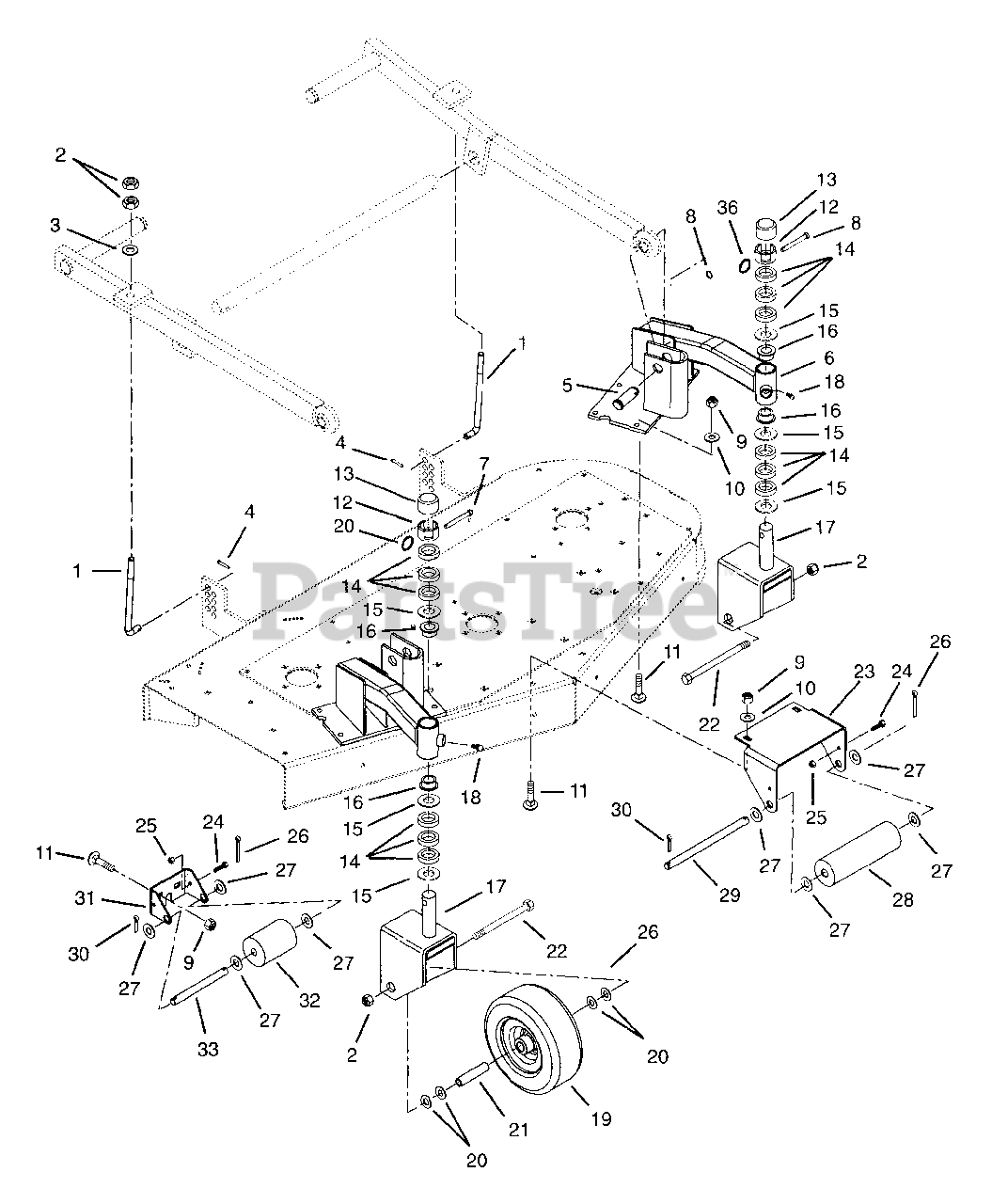

890011 - Gravely 50" Deck for Pro-Master 350 Mower (SN: 000101 & Above) Gauge Wheels, Rollers, And Height Adjustments Parts Diagram

50" Deck for Pro-Master 350 Mower

Gauge Wheels, Rollers, And Height Adjustments Parts Diagram

  • Title

1

Gravely 09052000

ROD, REAR HEIGHT ADJUSTMENT

$52.99

$

Usually ships in 4-12 days

0

2

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0

4

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 06815200

PIN-CLEV .875X3.00 YWZC

$

$

Not available

6

Gravely 09089500

WLDM'T LIFT ARM MT LH 50"

$68.99

$

Usually ships in 4-12 days

0

7

Gravely 06815300

PIN-CLEV .309 X 1.625 YWZC

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 05718000

RG-RTNG-EXT 2.240 X .180 YWZC

$

$

Not available

9

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01535100

SPINDLE CUP

$

$

Not available

13

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05519500

BSHG-SLV 1.04X1.75X.500 ST
(Superseded to 05519553)

$17.99

$

In Stock, only 2 left!

0

15

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.49

$

In Stock, Qty 8

0

16

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

17

Gravely 09058200

WM'T, CASTER FORK

$

$

Not available

18

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

19

Gravely 58903200

KIT,PNEUMATIC TIRE REPLACEMENT

$290.99

$

Usually ships in 4-12 days

0

20

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0

21

Gravely 011950

SPACER .532X.748X3.34
(Superseded to 09023500)

$27.99

$

Usually ships in 4-12 days

0

22

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

23

Gravely 052796

BRKT, GAGE ROLLER
(Superseded to 09012300)

$79.99

$

In Stock, only 2 left!

0

24

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

25

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

26

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

In Stock, only 2 left!

0

27

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

$38.99

$

In Stock, only 3 left!

0

29

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

$61.99

$

Usually ships in 4-12 days

0

30

Gravely 06713000

PIN-CTR .25X1.00 YWZC

$1.99

$

In Stock, only 4 left!

0

31

Gravely 08966853

BRKT., ROLLER (RED)

$

$

Not available

32

Gravely 015351

RLR,GAGE
(Superseded to 07520100)

$27.99

$

Usually ships in 4-12 days

0

33

Gravely 045211

ROD
(Superseded to 08966900)

$58.99

$

Usually ships in 4-12 days

0

34

Gravely 09089600

WLDM'T LIFT ARM MT RH 50"

$68.99

$

Usually ships in 4-12 days

0

36

Gravely 05718100

RG-RTNG-EXT 1.062 X 1.25 YWZC

$7.49

$

Usually ships in 4-12 days

0
