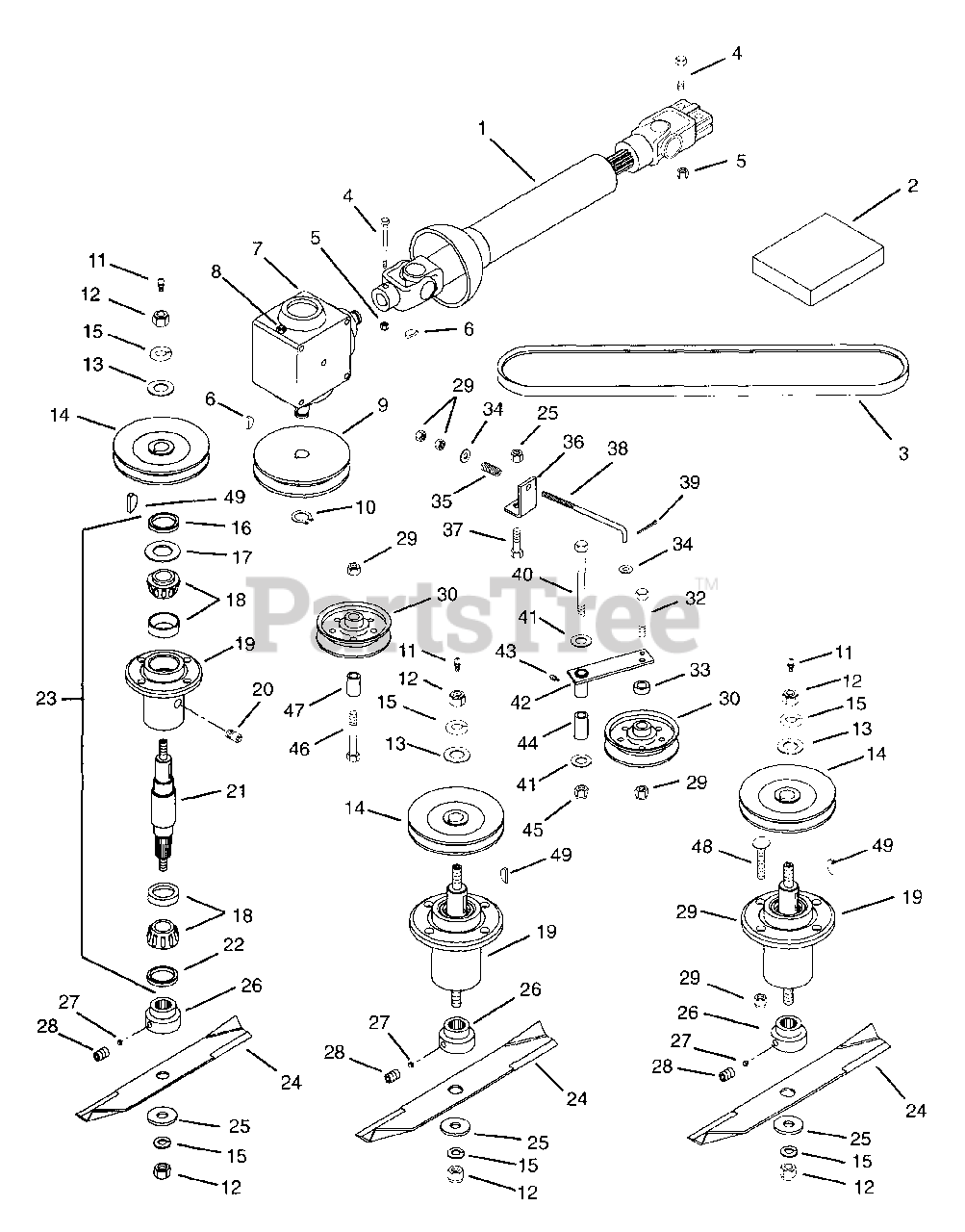

890011 - Gravely 50" Deck for Pro-Master 350 Mower (SN: 000101 & Above) Mower Drive Parts Diagram

50" Deck for Pro-Master 350 Mower

Mower Drive Parts Diagram

  • Title

1

Gravely 09052600

UNIVERSAL JOINT ASS'Y

$494.99

$

Usually ships in 4-12 days

0

2

Gravely 03155800

JOURNAL CROSS & BEARING ASSEMB

$

$

Not available

3

Gravely 07230600

V-BELT, HA-RAW EDGE

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

5

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

6

Gravely 124551

KEY-WDRF .25X.875 HRD #A
(Superseded to 06608800)

$3.99

$

In Stock, Qty 12

0

7

Gravely 08956151

GEARBOX, RIGHT ANGLE 1:1

$

$

Not available

8

Gravely 048596

PLUG,1/8 VENT
(Superseded to 08984600)

$

$

Not available

9

Gravely 07322800

SHEAVE, MWR GEARBOX

$

$

Not available

10

Gravely 022080

RG-RTNG-EXT .821X.078
(Superseded to 05713900)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, Qty 12

0

12

Gravely 06535600

NUT-HEX .62-11 YWZC

$2.99

$

In Stock, only 3 left!

0

13

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$2.99

$

In Stock, Qty 7

0

14

Gravely 08893900

SHEAVE

$

$

Not available

15

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.49

$

In Stock, only 2 left!

0

16

Gravely 05611400

SEAL 1.987 X1.500 X.313

$16.99

$

In Stock, only 4 left!

0

17

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 10

0

18

Gravely 21245800

ASM,BEARING CUP&CONE
(Superseded to 00145555)

$29.99

$

In Stock, Qty 20+

0

19

Gravely 08894500

BEARING HOUSING

$

$

Not available

20

Gravely 08896800

RELIEF FITTING-GREASE

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 58802900

SPINDLE SHAFT SERVICE KIT

$128.99

$

In Stock, Qty 8

0

22

Gravely 018447

SEAL 1.206X1.785X.486
(Superseded to 05613200)

$17.99

$

In Stock, Qty 7

0

23

Gravely 68800500

SPINDLE ASSEMBLY
(Superseded to 58803600)

$273.99

$

In Stock, Qty 8

0

24

Gravely 052928

BLD,MULCHING 50" MWR
(Superseded to 08866800)

$33.99

$

In Stock, Qty 13

0

25

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

26

Gravely 08886500

HUB

$65.99

$

Usually ships in 4-12 days

0

27

Gravely 03191400

PLUG

$7.49

$

Usually ships in 4-12 days

0

28

Gravely 06005400

SCR-SET .25-20X.25 SKHCUPDL

$3.99

$

In Stock, only 1 left!

0

29

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 021060

PLY-IDLER 4.00X.380
(Superseded to 07314800)

$40.99

$

In Stock, Qty 10

0

31

Gravely 038696

BSHG-SLV .407X.625X.750 PL
(Superseded to 05525700)

$7.49

$

In Stock, Qty 17

0

32

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

33

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

34

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

36

Gravely 031346

SPRT,SPRING "B"
(Superseded to 08905100)

$17.99

$

Usually ships in 4-12 days

0

37

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 046264

ROD,IDLER
(Superseded to 08656800)

$65.99

$

Usually ships in 4-12 days

0

39

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

40

Gravely 05960100

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.49

$

In Stock, only 2 left!

0

41

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 9

0

42

Gravely 046809

WLDMT,IDLER PIVOT
(Superseded to 08979400)

$156.99

$

Usually ships in 4-12 days

0

43

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

44

Gravely 031363

SPACER .505X.855X2.50
(Superseded to 08826500)

$52.99

$

Usually ships in 4-12 days

0

45

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

46

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 031368

SPACER .516X.875X.300
(Superseded to 09036100)

$37.99

$

Usually ships in 4-12 days

0

48

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

49

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0
