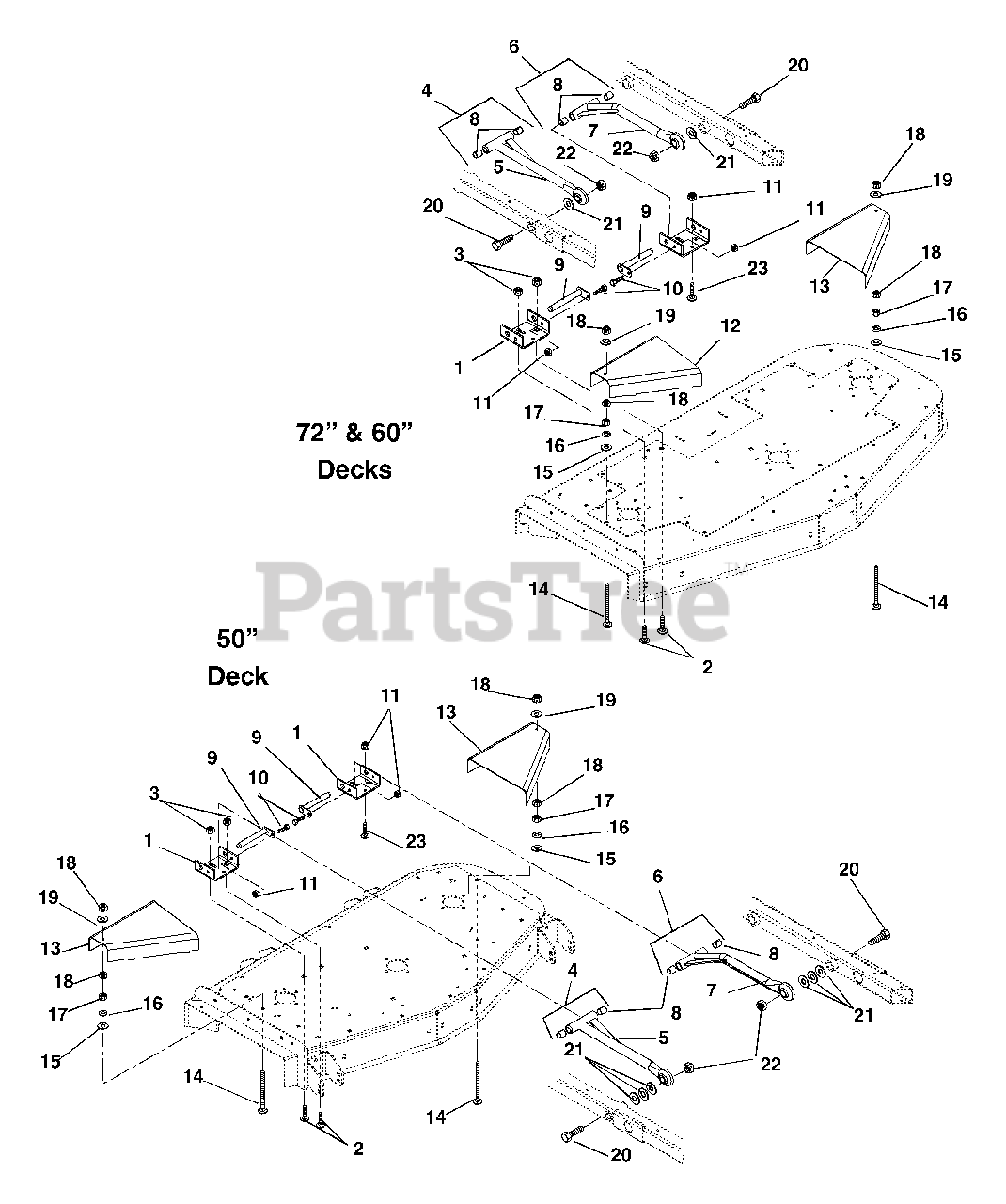

890012 - Gravely 50" Deck for Pro-Master 310 Mower (SN: 000501 & Above) Mounting Arms And Belts Guards Parts Diagram

50" Deck for Pro-Master 310 Mower

Mounting Arms And Belts Guards Parts Diagram

  • Title

1

Gravely 04913953

BRACKET, MOWER MOUNT (REAR)
(Superseded to 09240453)

Note: (Rear)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06215600

BLT-RDHDSQNK .50-13X1.00 G2YW
(Superseded to 06224600)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

4

Gravely 09099300

ASSY, MOWER MOUNTING ARM

Note: (Contains Items 5, 8)

$290.99

$

Usually ships in 4-12 days

0

5

Gravely 09099253

WLDMT, MOWER MOUNTING ARM

$237.99

$

Usually ships in 4-12 days

0

6

Gravely 04906700

ASSY, MOWER MOUNTING ARM LH

Note: (Contains Items 7,8)

$351.99

$

Usually ships in 4-12 days

0

7

Gravely 04913853

WLDMT, MOWER MOUNT ARM

$301.99

$

Usually ships in 4-12 days

0

8

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

9

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

10

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

11

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09240753

GUARD, PULLEY RH
(Superseded to 09240751)

Note: (60" Deck)

$47.99

$

Usually ships in 4-12 days

0

Gravely 09246300

GUARD, PULLEY RH
(Superseded to 09246351)

Note: (50" Deck)

$64.99

$

Usually ships in 4-12 days

0

Gravely 09252553

GUARD, R.H. PULLEY

Note: (72" Deck)

$96.99

$

Usually ships in 4-12 days

0

13

Gravely 09240853

GUARD, PULLEY LH
(Superseded to 09240851)

Note: (60" Deck)

$64.99

$

Usually ships in 4-12 days

0

Gravely 09246200

GUARD, PULLEY LH

Note: (50" Deck)

$

$

Not available

Gravely 09252453

GUARD, L.H. PULLEY

Note: (72" Deck)

$105.99

$

In Stock, only 1 left!

0

14

Gravely 06221300

BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$6.99

$

In Stock, only 2 left!

0

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$8.49

$

In Stock, Qty 12

0

21

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

Note: (60" & 72" Deck)

$4.99

$

In Stock, Qty 6

0

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

Note: (50" Deck)

$4.99

$

In Stock, Qty 6

0

22

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0

23

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0
