890013 - Gravely 60" Deck for Pro-Master 310 Mower (SN: 000101 - 000500) Mower Deck Cover And Castor Wheels Parts Diagram

60" Deck for Pro-Master 310 Mower

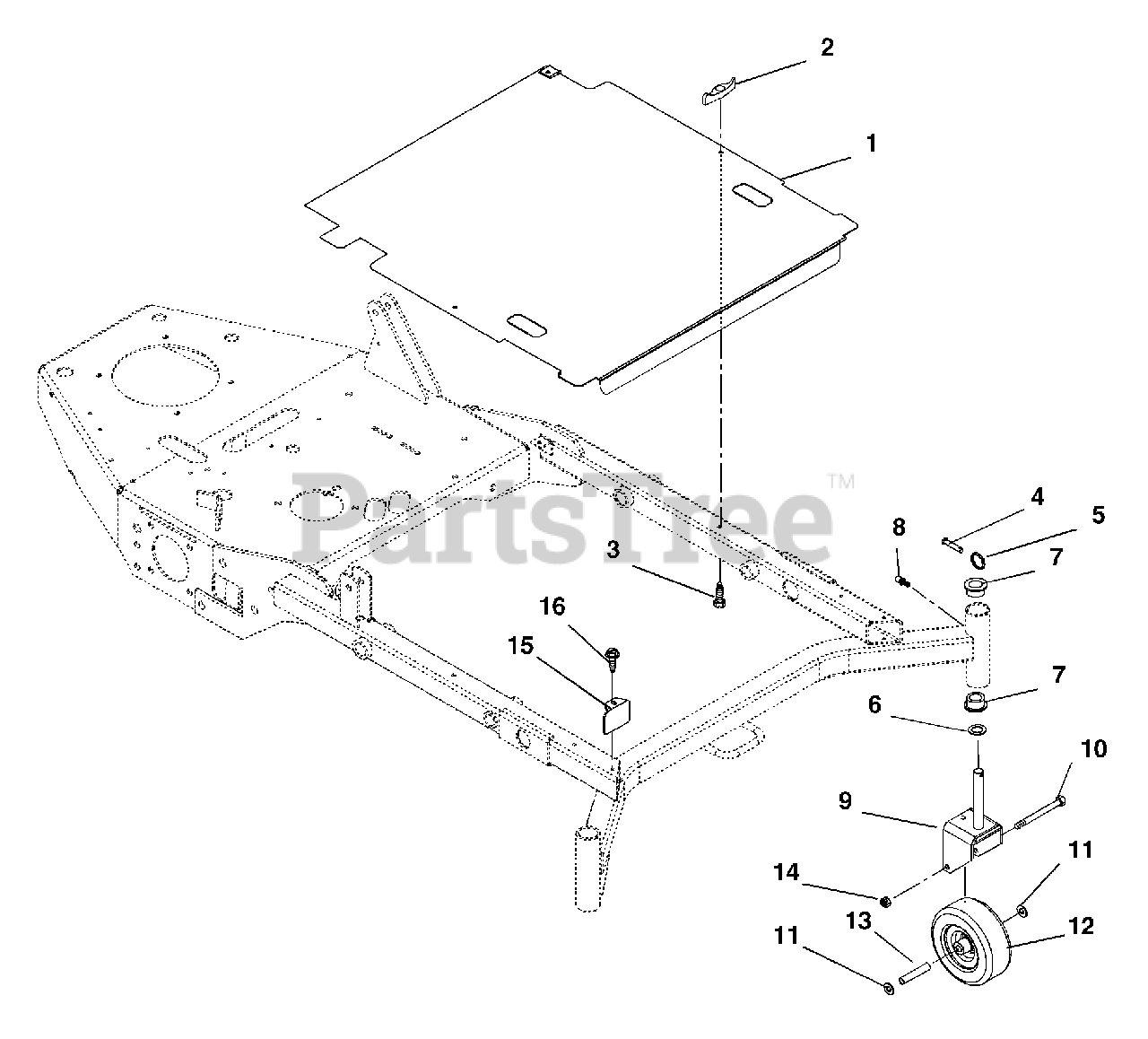

Mower Deck Cover And Castor Wheels Parts Diagram

  • Title

1

Gravely 04909053

Cover, Mower Deck

$355.99

$

Usually ships in 4-12 days

0

2

Gravely 07531700

Knob- Wing .31-18
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

3

Gravely 07064600

Bolt-Rib Neck .31-18 x 2.50

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 047197

Pin-Clevis .31 x 2.62 Grade 5
(Superseded to 06810900)

$

$

Not available

5

Gravely 05718100

Ring-Retaining-External 1.062 x 1.25

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 4 left!

0

7

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75 Nylon
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

8

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

9

Gravely 09058200

Weldment, Caster Fork

$187.99

$

Usually ships in 4-12 days

0

10

Gravely 05964100

Bolt-Hex .50-13 x 5.50 Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 06413300

Washer-Hardened Thrust .760 x 1.25 x .094

$5.99

$

In Stock, only 2 left!

0

12

Gravely 07147200

Wheel Assembly 9.00 x 3.50
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

13

Gravely 09095800

Spacer, .750 x .532 x 4.47

$

$

Not available

14

Gravely 06536300

Nut-Locking-Center .50-16
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

15

Gravely 04912853

Cover, Mower Tube

$16.99

$

Usually ships in 4-12 days

0

16

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
