890014 - Gravely 72" Deck for Pro-Master 310 Mower (SN: 000501 & Above) 72" Deck And Spindles Parts Diagram

72" Deck for Pro-Master 310 Mower

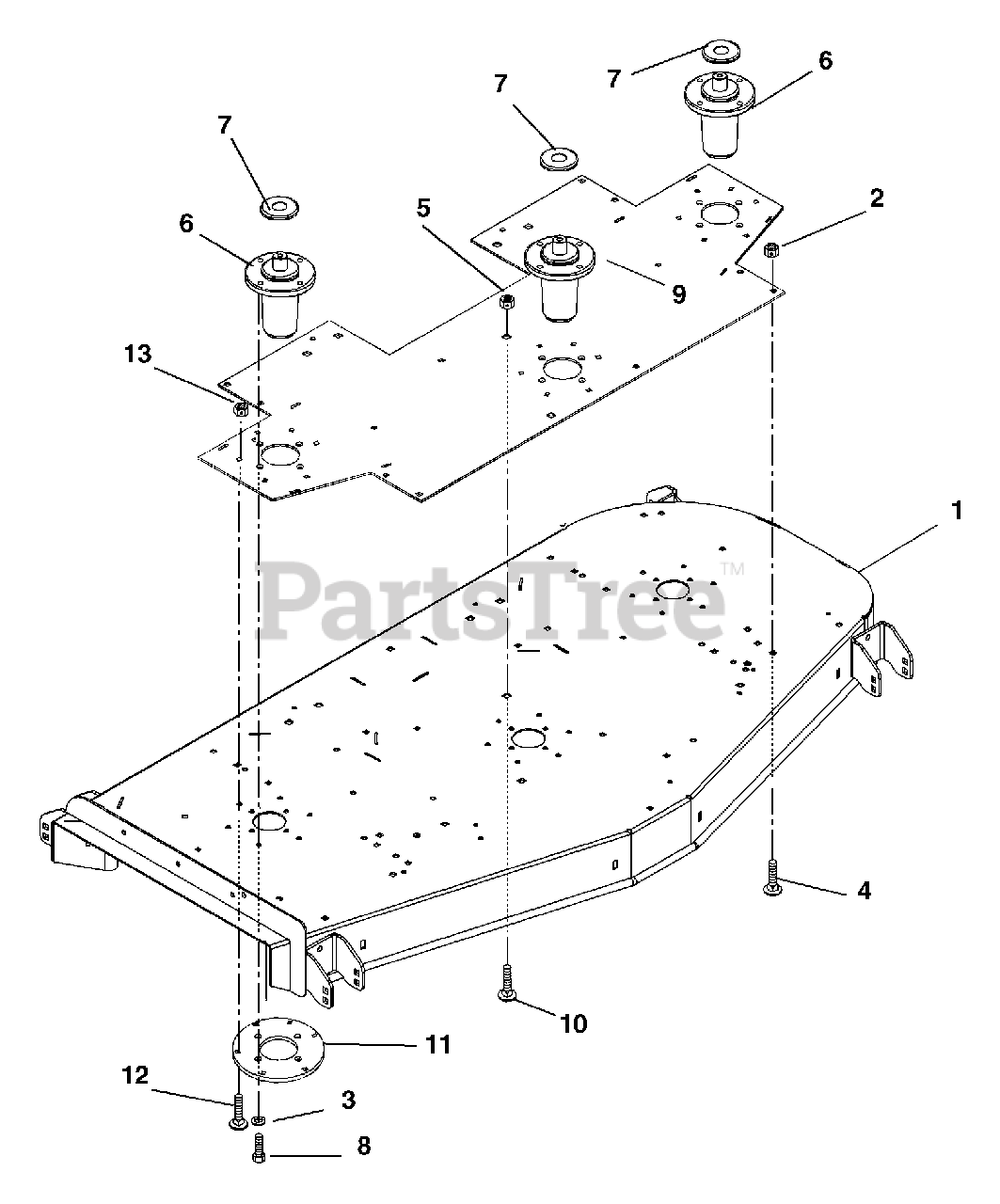

72" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09256853

WLDMT, 72" DECK

Note: (Side Discharge)

$646.99

$

Usually ships in 4-12 days

0

2

Gravely 09216553

PLATE, 72" REINFORCEMENT

$

$

Not available

3

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$5.49

$

In Stock, Qty 20+

0

5

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

Note: (Contains Item 12)

$286.99

$

In Stock, Qty 13

0

7

Gravely 09238200

SLINGER, DUST

$18.99

$

In Stock, only 3 left!

0

8

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 69207500

ASSEMBLY, SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

10

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 09096151

PLATE, SPINDLE REINFORCEMENT

$111.99

$

Usually ships in 4-12 days

0

12

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0
