890014 - Gravely 72" Deck for Pro-Master 310 Mower (SN: 000501 & Above) Rollers Parts Diagram

72" Deck for Pro-Master 310 Mower

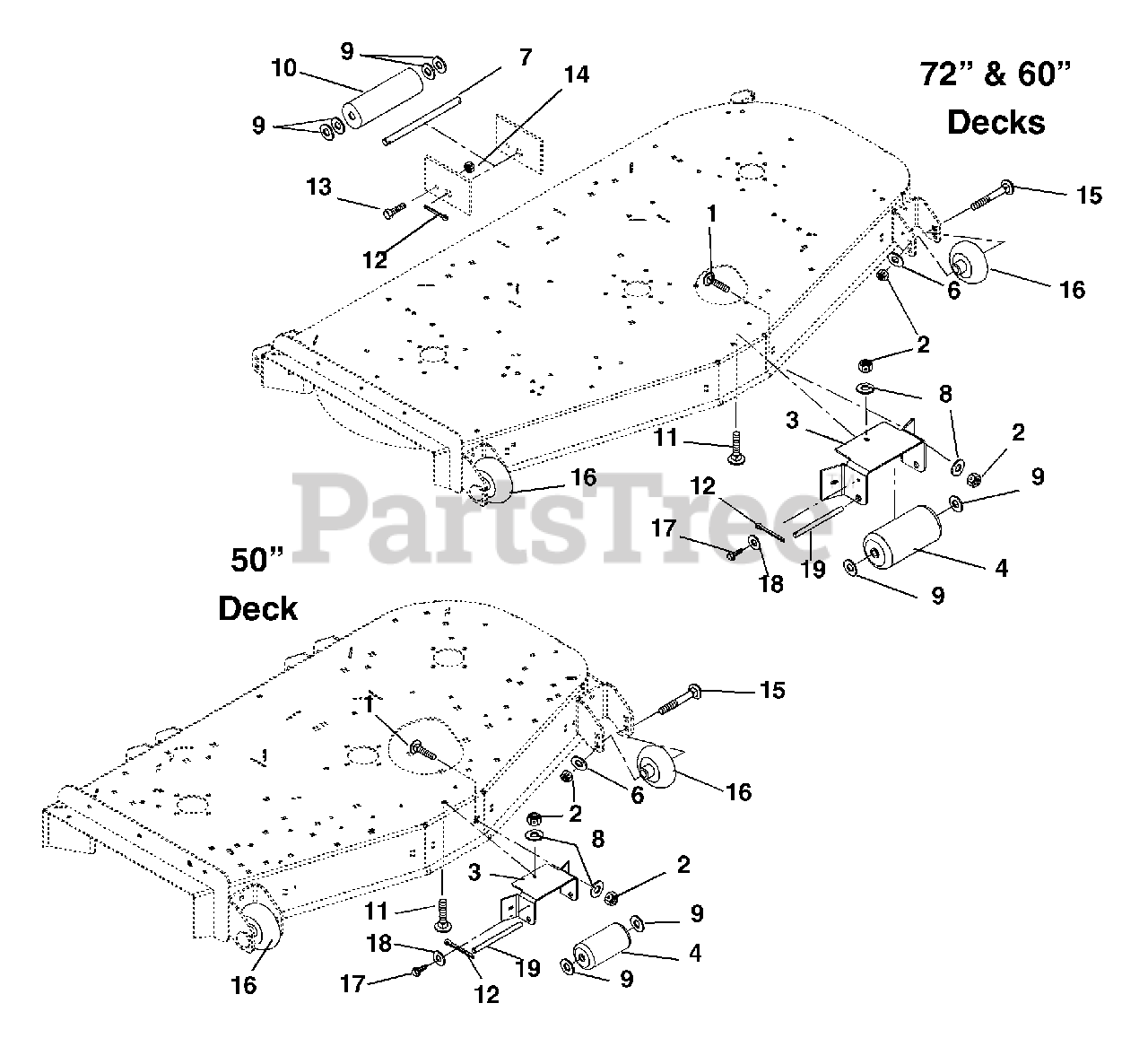

Rollers Parts Diagram

  • Title

1

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 09094953

BRACKET, ANTI SCALP ROLLER

$108.99

$

In Stock, only 1 left!

0

4

Gravely 09078100

ROLLER

$51.99

$

In Stock, only 3 left!

0

5

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

Note: (60" & 72" Deck)

$63.99

$

Usually ships in 4-12 days

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

Note: (72" & 60" Deck)

$3.49

$

In Stock, Qty 20+

0

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

Note: (50" Deck)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

Note: (60" & 72" Deck)

$39.99

$

In Stock, only 3 left!

0

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

Note: (72" & 60" Deck)

$5.49

$

In Stock, only 1 left!

0

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

Note: (50" Deck)

$5.49

$

In Stock, only 1 left!

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (72" & 60" Deck)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (72" & 60" Deck)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

16

Gravely 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 20+

0

17

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09075300

PIN

$42.99

$

In Stock, only 2 left!

0
