890015 - Gravely Grass Bagger for PM310 (SN: 000101 & Above) Blower Assembly & Bagger Adapter Parts Diagram

Grass Bagger for PM310

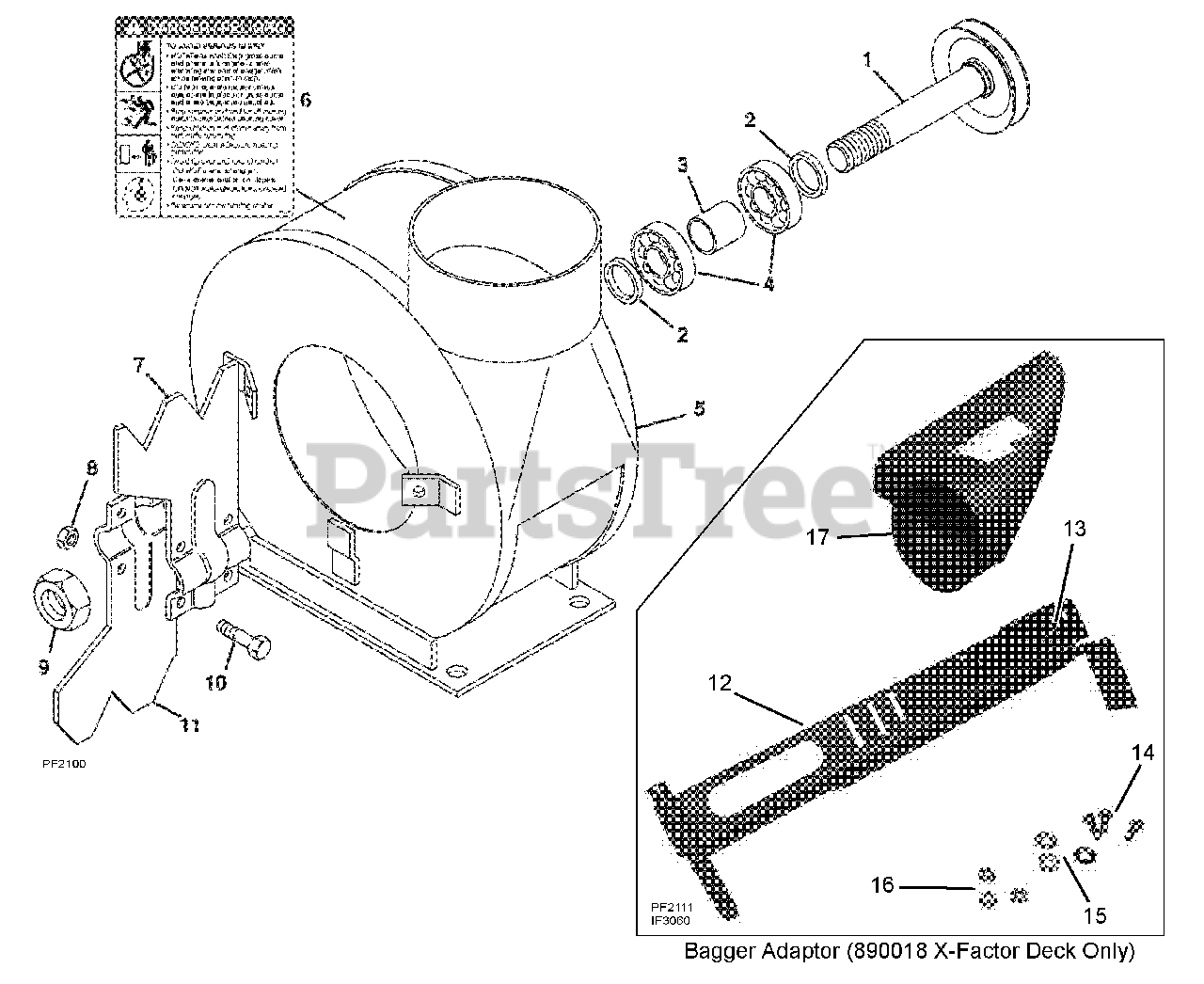

Blower Assembly & Bagger Adapter Parts Diagram

  • Title

1

Gravely 03422100

Weldment-Spindle

$356.99

$

Usually ships in 4-12 days

0

2

Gravely 06418500

Washer-Flat-Steel 1.015 x 1.5 x .125
(Superseded to 06400025)

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 21082200

Spacer

$

$

Not available

4

Gravely 05416000

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

5

Gravely 04914851

Weldment, Fan Housing

$

$

Not available

6

Gravely 05234600

Decal-Danger

$

$

Not available

7

Gravely 03021500

Blade-Fan

$46.99

$

Usually ships in 4-12 days

0

8

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06512000

Nut-Locking-Jam 1.0-14

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 03422000

Blade-Fan

$46.99

$

Usually ships in 4-12 days

0

12

Gravely 02981853

Adapter, PM320 X-Factor Deck

$

$

Not available

13

Gravely 07000037

Plunger Pull Pin 1/2-13

$11.99

$

In Stock, Qty 6

0

14

Gravely 05958000

Hex Bolt, 3/8-16 x 1-1/4 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, only 3 left!

0

15

Gravely 06435900

Washer, Flat Steel 7/16 x 1
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06545500

Nut, Nulon Locking, 3/8-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 04916000

Boot, 60" Bagger

$

$

Not available
