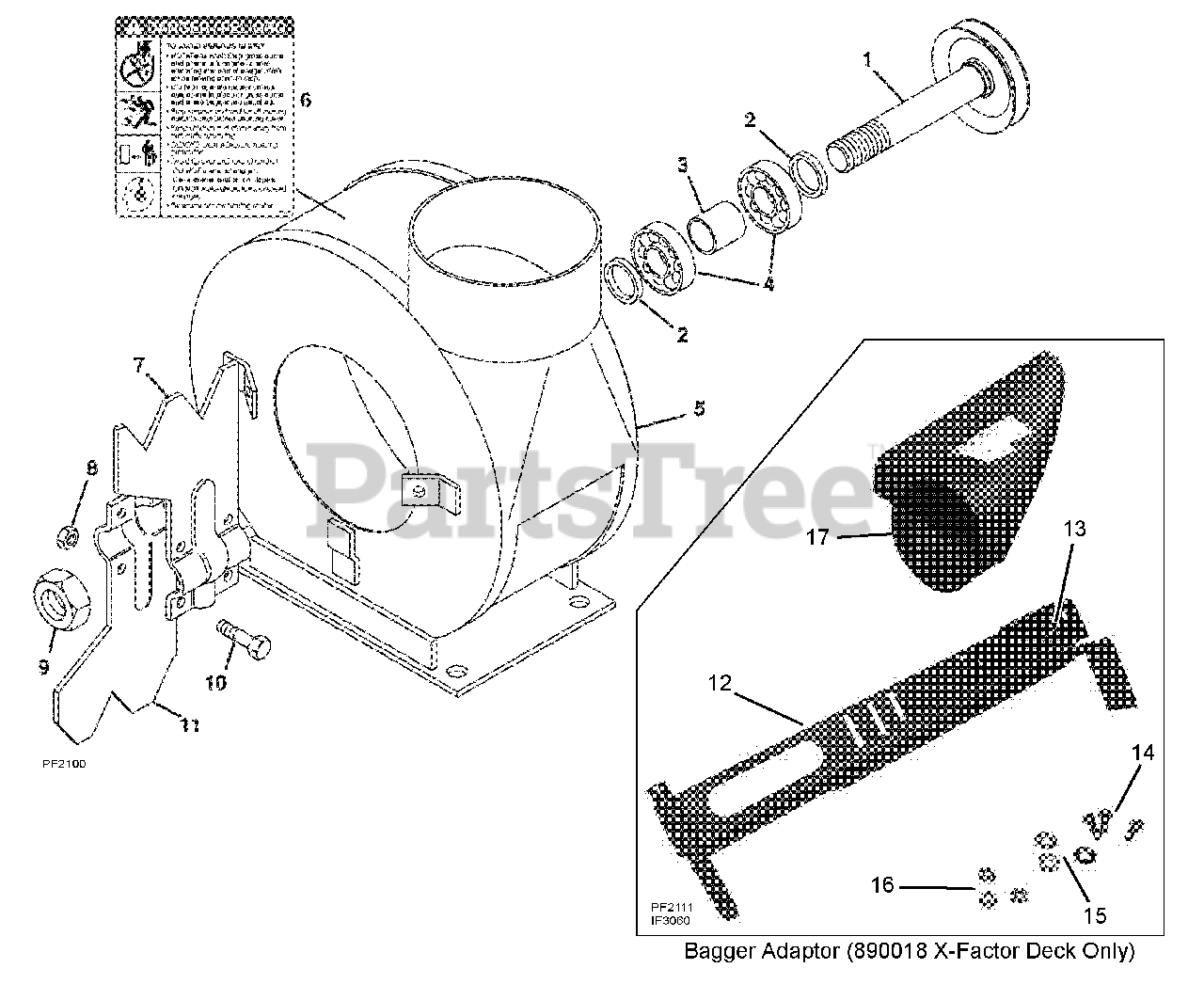

890015 - Gravely Grass Bagger for PM310 (SN: 000101 & Above) Blower Assembly & Bagger Adapter Parts Diagram

Grass Bagger for PM310

Blower Assembly & Bagger Adapter Parts Diagram

  • Title

1

Gravely 03422100

SPINDLE WELDMENT

$372.99

$

Usually ships in 4-12 days

0

2

Gravely 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 21082200

SPCR

$

$

Not available

4

Gravely 05416000

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$20.99

$

In Stock, Qty 20+

0

5

Gravely 04914851

WLDMT, FAN HOUSING

$

$

Not available

6

Gravely 05234600

DECAL, PM-310 BAGGER

$

$

Not available

7

Gravely 03021500

FAN BLADE

$48.99

$

Usually ships in 4-12 days

0

8

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06512000

NUT-LK-JAM 1.0-14 PL

$12.99

$

Usually ships in 4-12 days

0

10

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 03422000

FAN BLADE

$48.99

$

Usually ships in 4-12 days

0

12

Gravely 02981853

WLDMNT,BAGGER ADAP 320 XFACTOR

$

$

Not available

13

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

14

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 04916000

BOOT, 60" BAGGER

$

$

Not available
