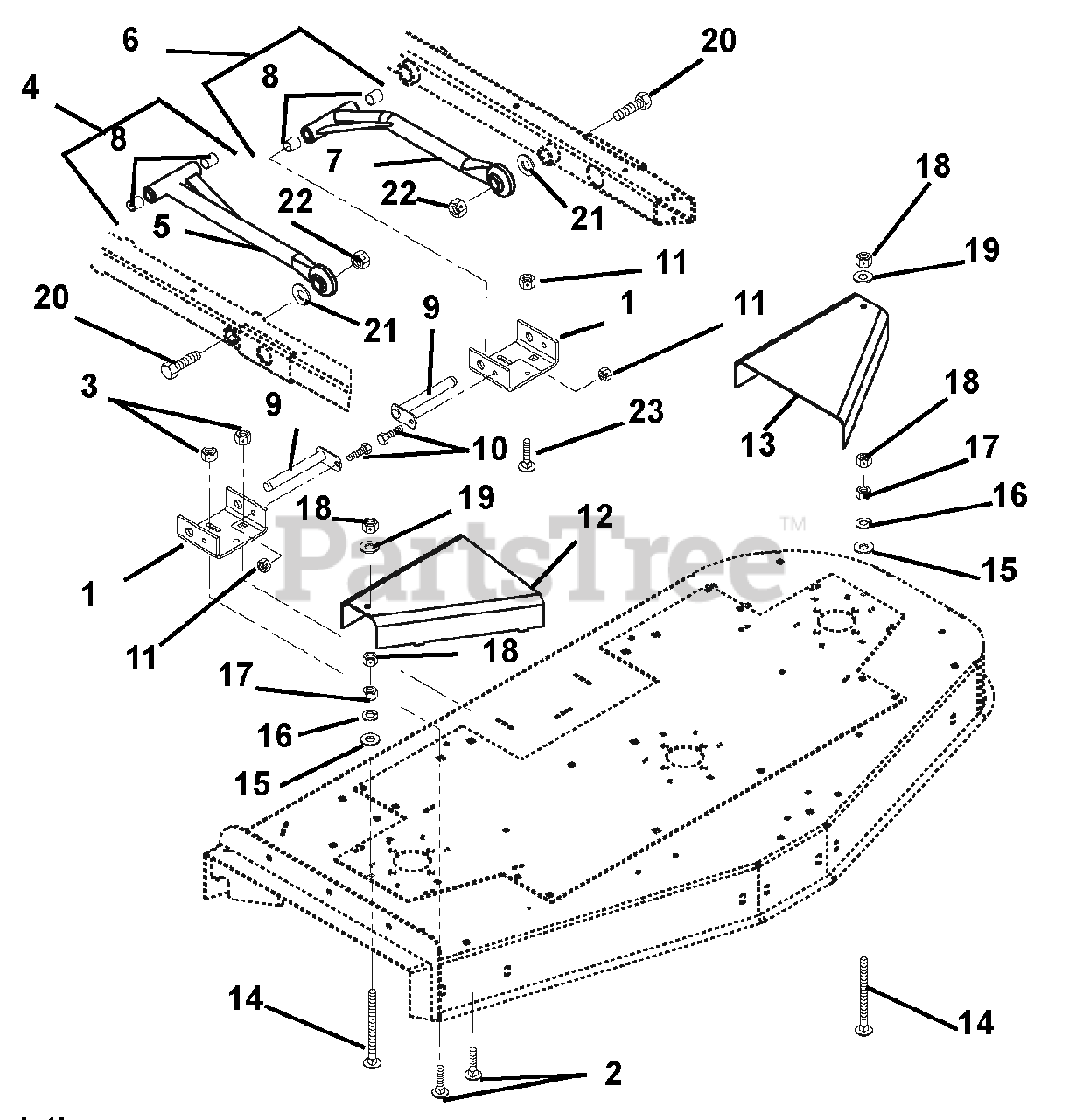

890016 - Gravely 60" Deck for Pro-Master 320 Mower (SN: 000101 & Above) Mounting Arms And Belt Guards Parts Diagram

60" Deck for Pro-Master 320 Mower

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 04913953

BRACKET, MOWER MOUNT (REAR)
(Superseded to 09240453)

Note: (Rear)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06224600

BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 09099300

ASSY, MOWER MOUNTING ARM

Note: (Contains Items 5, 8)

$290.99

$

Usually ships in 4-12 days

0

5

Gravely 09099253

WLDMT, MOWER MOUNTING ARM

$237.99

$

Usually ships in 4-12 days

0

6

Gravely 04906700

ASSY, MOWER MOUNTING ARM LH

Note: (Contains Items 7,8)

$351.99

$

Usually ships in 4-12 days

0

7

Gravely 04913853

WLDMT, MOWER MOUNT ARM

$301.99

$

Usually ships in 4-12 days

0

8

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

9

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

10

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

11

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09240753

GUARD, PULLEY RH
(Superseded to 09240751)

Note: (016)

$47.99

$

Usually ships in 4-12 days

0

Gravely 09252553

GUARD, R.H. PULLEY

Note: (017)

$96.99

$

Usually ships in 4-12 days

0

13

Gravely 09240853

GUARD, PULLEY LH
(Superseded to 09240851)

Note: (016)

$64.99

$

Usually ships in 4-12 days

0

Gravely 09252453

GUARD, L.H. PULLEY

Note: (017)

$105.99

$

In Stock, only 1 left!

0

14

Gravely 06225300

BLT-RDHDSQNKFTH.312-18X3.50YWZ

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05976700

BLT,HEX.875-9X5.5 GR 5 YWZC

$

$

Not available

21

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$4.99

$

In Stock, Qty 6

0

22

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0

23

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0
