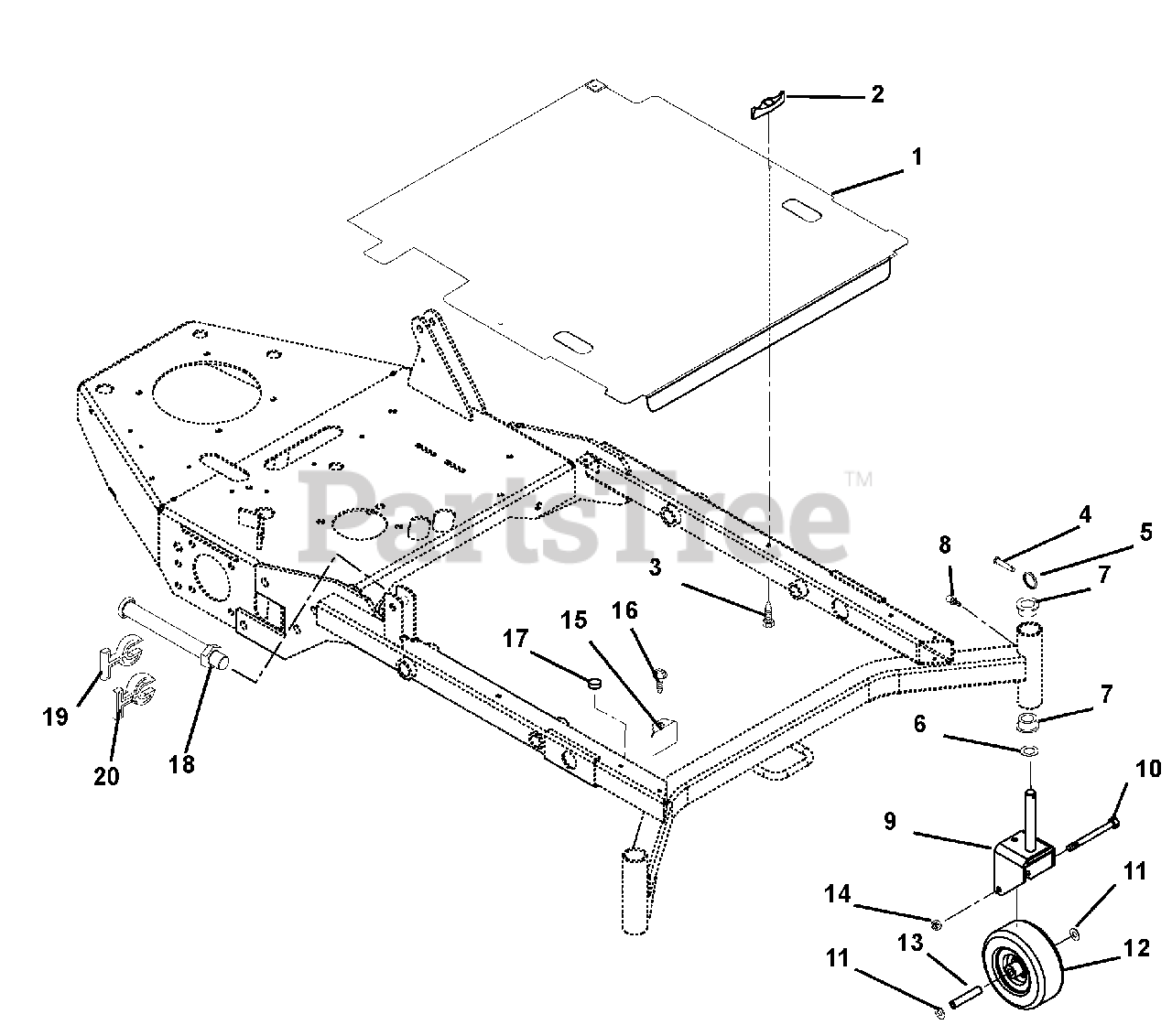

890017 - Gravely 72" Deck for Pro-Master 320 Mower (SN: 000101 & Above) Mower Deck Cover And Caster Wheels Parts Diagram

72" Deck for Pro-Master 320 Mower

Mower Deck Cover And Caster Wheels Parts Diagram

  • Title

1

Gravely 04909053

Cover, Mower Deck

$

$

Not available

2

Gravely 07531700

Knob- Wing .31-18
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 07064600

Bolt-Rib Neck .31-18 x 2.50

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 047197

Pin-Clevis .31 x 2.62 Grade 5
(Superseded to 06810900)

$

$

Not available

5

Gravely 05718100

Ring-Retaining-External 1.062 x 1.25

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$5.49

$

In Stock, Qty 11

0

7

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75 Nylon
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

8

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

9

Gravely 09058200

Weldment, Caster Fork

$191.99

$

Usually ships in 4-12 days

0

10

Gravely 05964100

Bolt-Hex .50-13 x 5.50 Grade 5
(Superseded to 05901632)

$7.49

$

In Stock, only 2 left!

0

11

Gravely 06413300

Washer-Hardened Thrust .760 x 1.25 x .094 (Serial Number 00524 and below)

Note: (Serial Number 00524 and below)

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 07147200

Wheel Assembly 9.00 x 3.50 (Serial Number 00524 and below)
(Superseded to 58903200)

Note: (Serial Number 00524 and below)

$290.99

$

In Stock, only 3 left!

0

Gravely 07100040

Wheel Assembly (Serial Number 00525 and above)

Note: (Serial Number 00525 and above)

$197.99

$

Usually ships in 4-12 days

0

13

Gravely 09081500

Bearing .532 x .750 x 3.97 (Serial Number 00524 and below)

Note: (Serial Number 00524 and below)

$42.99

$

Usually ships in 4-12 days

0

Gravely 05400008

Bearing .532 x .750 x 4.06 (Serial Number 00525 and above)

Note: (Serial Number 00525 and above)

$42.99

$

Usually ships in 4-12 days

0

14

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04912853

Cover, Mower Tube

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07512600

Bumper

$

$

Not available

18

Gravely 09260800

Post

$

$

Not available

19

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, Qty 17

0

20

Gravely 09212300

Stop, Cylinder .680 Thick

$11.99

$

In Stock, Qty 20+

0
