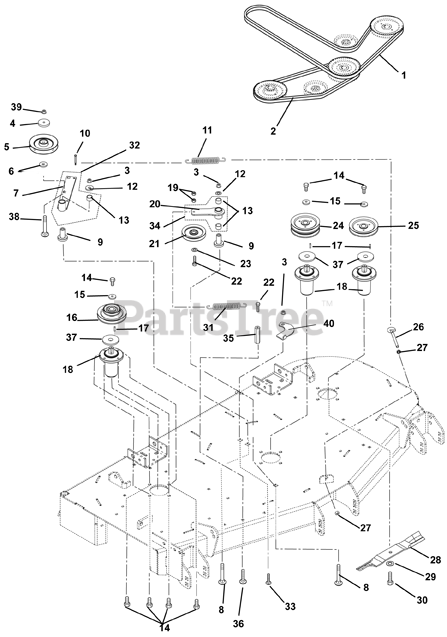

890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260) Belts, Spindles, Idlers And Mower Blades Parts Diagram

60" Deck for Pro-Master 320XDZ Mower

Belts, Spindles, Idlers And Mower Blades Parts Diagram

  • Title

1

Gravely 07200328

HEX BELT, BB-WRAPPED

$142.99

$

In Stock, Qty 16

0

2

Gravely 07200038

V-BELT, B-COGGED

$68.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

CAP, IDLER BEARING SEALING

$15.99

$

In Stock, Qty 10

0

5

Gravely 07328000

PLY-V 6.0 X .500 ID DBL BRG.

$110.99

$

In Stock, Qty 7

0

6

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 20+

0

7

Gravely 00368251

IDLER PIVOT ARM WMT - BLACK
(Superseded to 03379851)

$96.99

$

Usually ships in 4-12 days

0

8

Gravely 06200003

BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$6.49

$

In Stock, Qty 10

0

9

Gravely 07000031

BEARING, PEDESTAL

$84.99

$

In Stock, Qty 10

0

10

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 17

0

11

Gravely 08300030

SPRING, EXTENSION
(Superseded to 08300505)

$27.99

$

In Stock, Qty 20+

0

12

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 07300026

SHV, DBL 1"IDX6.75" & 4.25"OD
(Superseded to 07329167)

$87.99

$

In Stock, Qty 19

0

17

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

18

Gravely 69219700

ASSEMBLY, SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

19

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00345600

WMT, IDLER PIVOT ARM

$52.99

$

In Stock, only 2 left!

0

21

Gravely 07300103

ASM, V-IDLER 5.00 O.D.
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

22

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07300021

SHEAVE, DOUBLE 1"ID X 6.75"OD
(Superseded to 59211500)

$93.99

$

In Stock, Qty 20+

0

25

Gravely 07300022

SHEAVE, SINGLE 1"ID X 6.75"OD
(Superseded to 59211600)

$84.99

$

In Stock, Qty 20+

0

26

Gravely 07000030

BOLT, .38-16X4.50 .62 DIA EYE
(Superseded to 07001604)

$7.49

$

In Stock, Qty 20+

0

27

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 09081200

BLADE, MOWER (20.50")

Note: (20.50")

$29.99

$

In Stock, Qty 20+

0

29

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

30

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

31

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

32

Gravely 00449000

ASSEMBLY, PTO IDLER PIVOT ARM

Note: (Includes item # 7 and item # 13)

$87.99

$

Usually ships in 4-12 days

0

33

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, Qty 6

0

34

Gravely 00349100

ASM, IDLER PIVOT ARM

Note: (Includes item # 13 and item # 20 )

$65.99

$

In Stock, only 2 left!

0

35

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

36

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 00481000

RETAINER, GREASE

$10.99

$

In Stock, Qty 12

0

38

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5YZ

$6.49

$

In Stock, Qty 18

0

39

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

40

Gravely 02053051

320 PTO IDLER ARM STOP - BLACK

$6.99

$

Usually ships in 4-12 days

0

41

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0
