890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260)

60" Deck for Pro-Master 320XDZ Mower

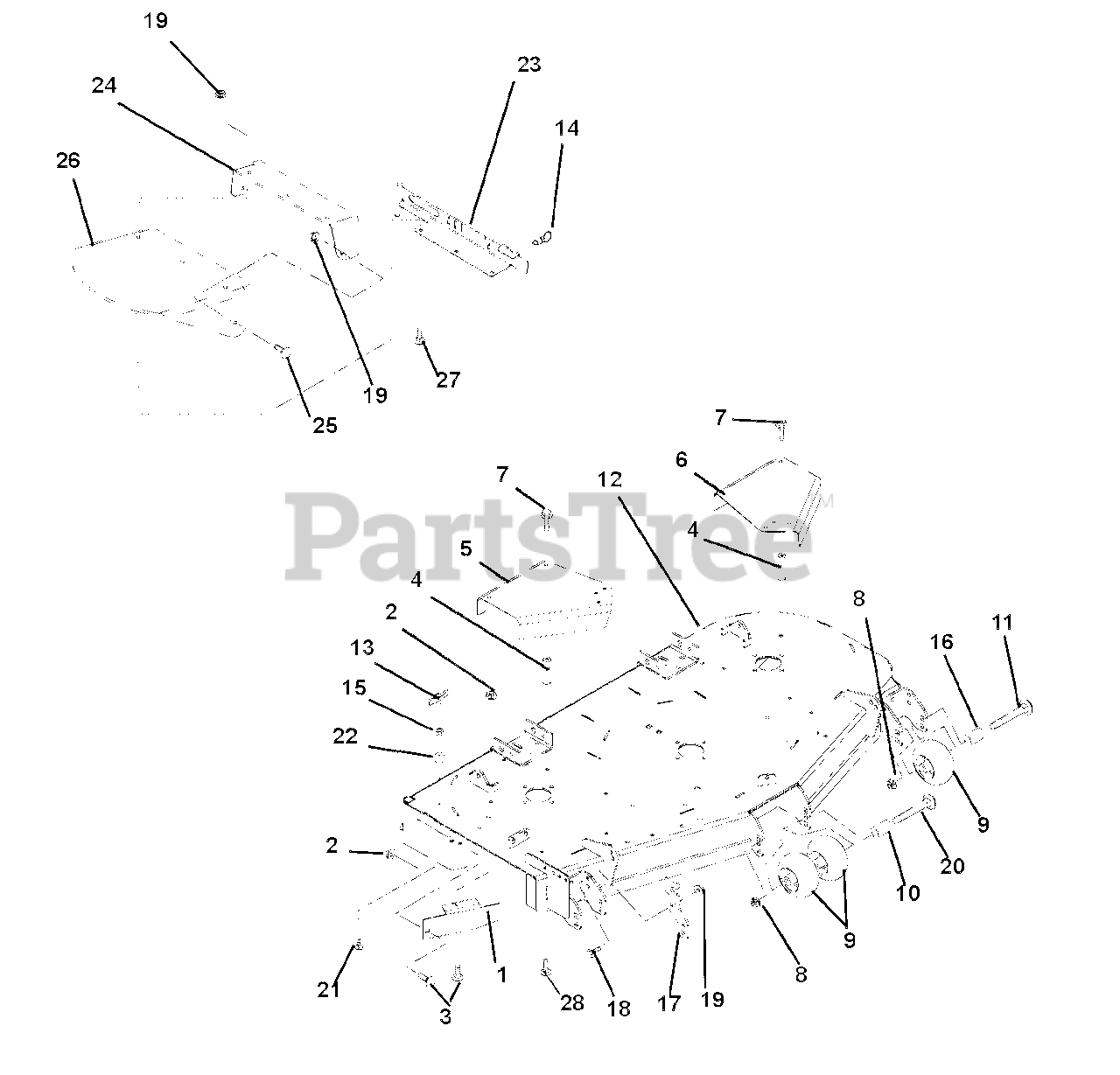

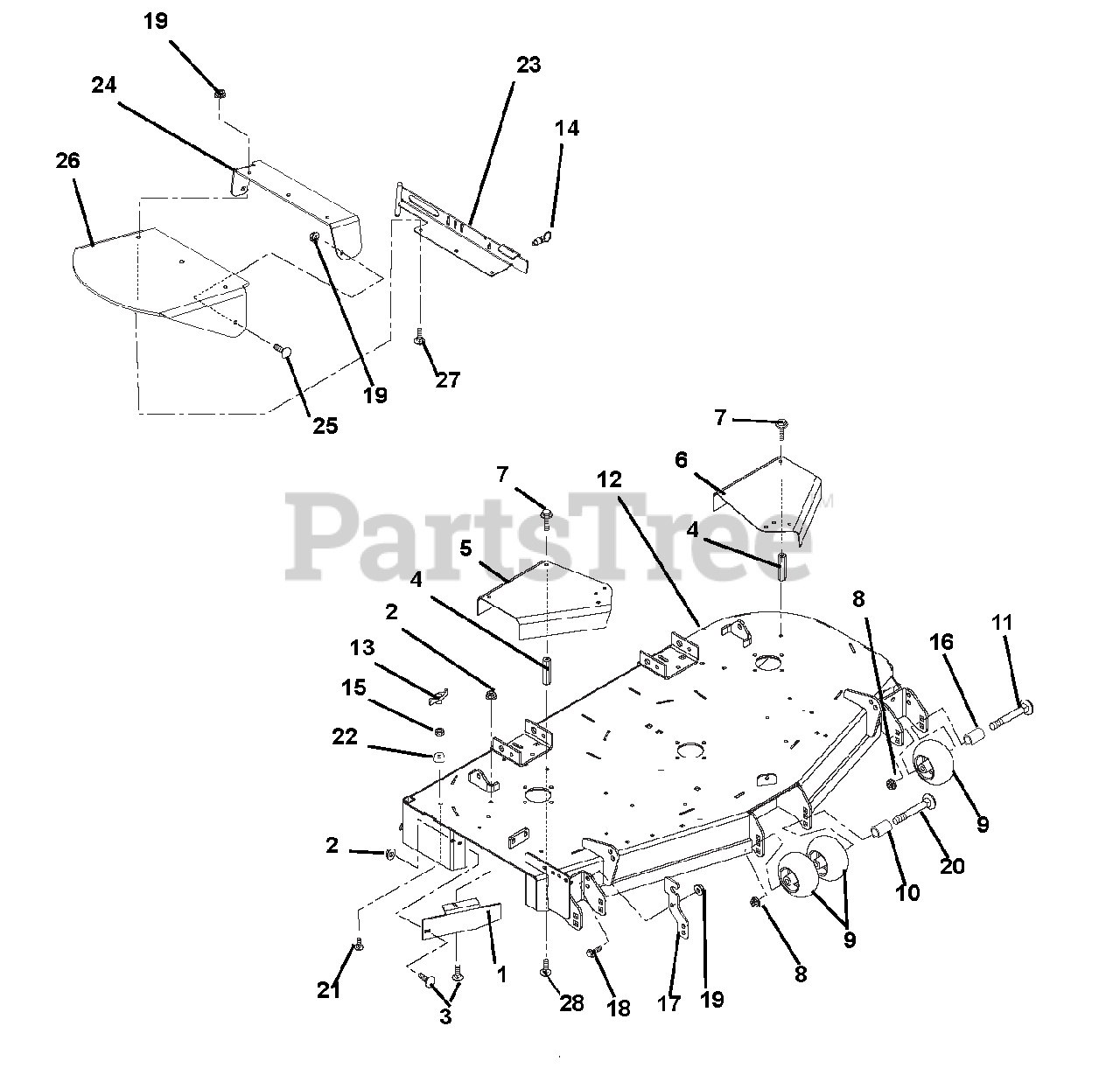

890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260) > Parts Diagrams (6) > Deck, Discharge Chute, Anti-Scalp Rollers, And Belt Covers

  • Title
00374153

1

60-in. Discharge Baffle

Part# 00374153

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $36.84

06545400

2

Nut, .31-18 Nyloc Flange

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

06216100

3

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5

Part# 06216100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07000027

4

Nut, Coupling .31-18 x 3.00

Part# 07000027

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

00370653

5

60-in. Right Hand Spindle Guard

Part# 00370653

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $49.14

00371453

6

60-in. Left Hand Spindle Guard

Part# 00371453

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $44.66

07000018

7

Bolt, SEMS .31-18 x .62

Part# 07000018

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06500010

8

Nut .50-13 Nyloc Flange

Part# 06500010

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00473600

9

Anti-Scalp Wheel

Part# 00473600 (Superseded to 03905900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

00473800

10

Spacer

Part# 00473800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

06225900

11

Bolt-Round Head Square Neck .50-13X5.00

Part# 06225900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

02023853

12

60-in. Mower Deck

Part# 02023853 (Superseded to 59004500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $951.95

07531700

13

Knob, Wing .312-18

Part# 07531700 (Superseded to 07534800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

07000037

14

Pin, Plunger Pull .50-13 Thread x .310 Diameter

Part# 07000037

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

06529800

15

Nut, Locking, Center .31-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

00473700

16

Spacer, .510 x .625 x 3.35

Part# 00473700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

00474753

17

Chute, Storage Bracket

Part# 00474753

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

00590013

18

Bolt, Hex .38-16 x 1.00

Part# 00590013

Not available

06545500

19

Nut, .38-16 Nyloc Flange

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06206400

20

Bolt, Round Head Square Neck .50-13 x 8.50

Part# 06206400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06212100

21

Bolt, Round Head Square Neck .31-18 x 1.50

Part# 06212100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07500009

22

Bumper, Recessed 1.50 x .63 , .31 Thru Hole

Part# 07500009

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

00472553

23

52-inch and 60-inch Discarch Chute Mounting Weldment

Part# 00472553 (Superseded to 04727953)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $61.49

00472353

24

Rubber Discharge Chute Support

Part# 00472353

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $98.33

06223600

25

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

00377800

26

Chute, Rubber Discharge

Part# 00377800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $67.02

06224100

27

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5

Part# 06224100

OEM Warranty Repair Part for Gravely

Not available

06200002

28

Bolt, round Head Square Neck .31-18 x .75

Part# 06200002

OEM Warranty Repair Part for Gravely

Not available
