890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260) Mounting Arms And Belt Guards Parts Diagram

60" Deck for Pro-Master 320XDZ Mower

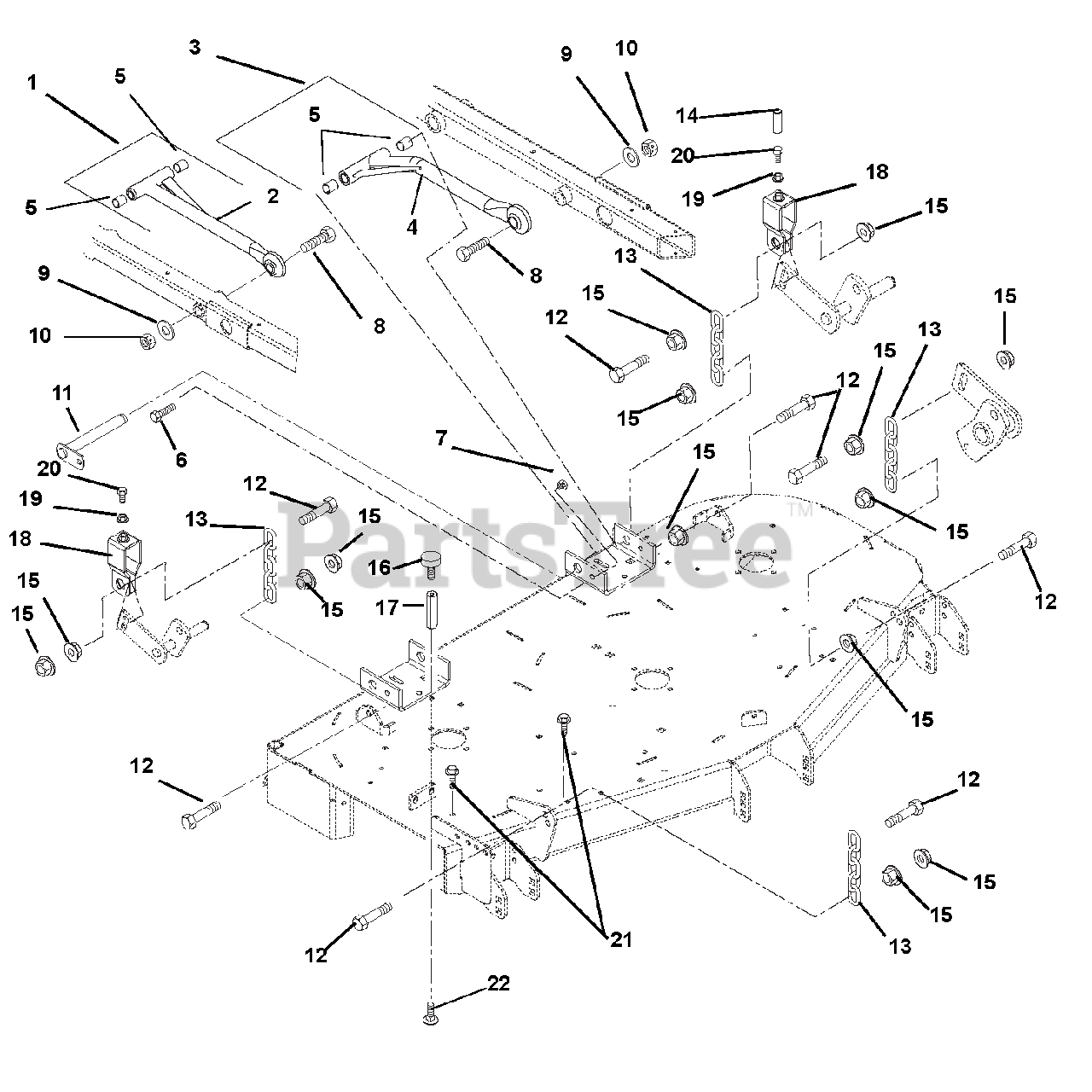

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09099300

ASSY, MOWER MOUNTING ARM

Note: (Contains Items 2, 5)

$290.99

$

Usually ships in 4-12 days

0

2

Gravely 09099253

WLDMT, MOWER MOUNTING ARM

$237.99

$

Usually ships in 4-12 days

0

3

Gravely 04906700

ASSY, MOWER MOUNTING ARM LH

Note: (Contains Items 4,5)

$351.99

$

Usually ships in 4-12 days

0

4

Gravely 04913853

WLDMT, MOWER MOUNT ARM

$301.99

$

Usually ships in 4-12 days

0

5

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

6

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

7

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05976700

BLT,HEX.875-9X5.5 GR 5 YWZC

$

$

Not available

9

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$4.99

$

In Stock, Qty 6

0

10

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0

11

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

12

Gravely 05900022

BLT, HEX M12-1.75X50 CLS8.8 YZ

$3.99

$

In Stock, only 1 left!

0

13

Gravely 09284700

CHAIN, LINK

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 07539500

CAP-VINYL .50ID X 1.50LG X.055

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06500003

NUT-SPNLK-FLG M12-1.75 YZ

$2.99

$

In Stock, only 1 left!

0

16

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

17

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

18

Gravely 00442800

BRKT, DECK LEVELING

$9.99

$

In Stock, only 2 left!

0

19

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

20

Gravely 05980900

BLT-HEX .312-18X2.00 FTH GR5YZ
(Superseded to 05902003)

$3.49

$

In Stock, only 1 left!

0

21

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0
