890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260)

60" Deck for Pro-Master 320XDZ Mower

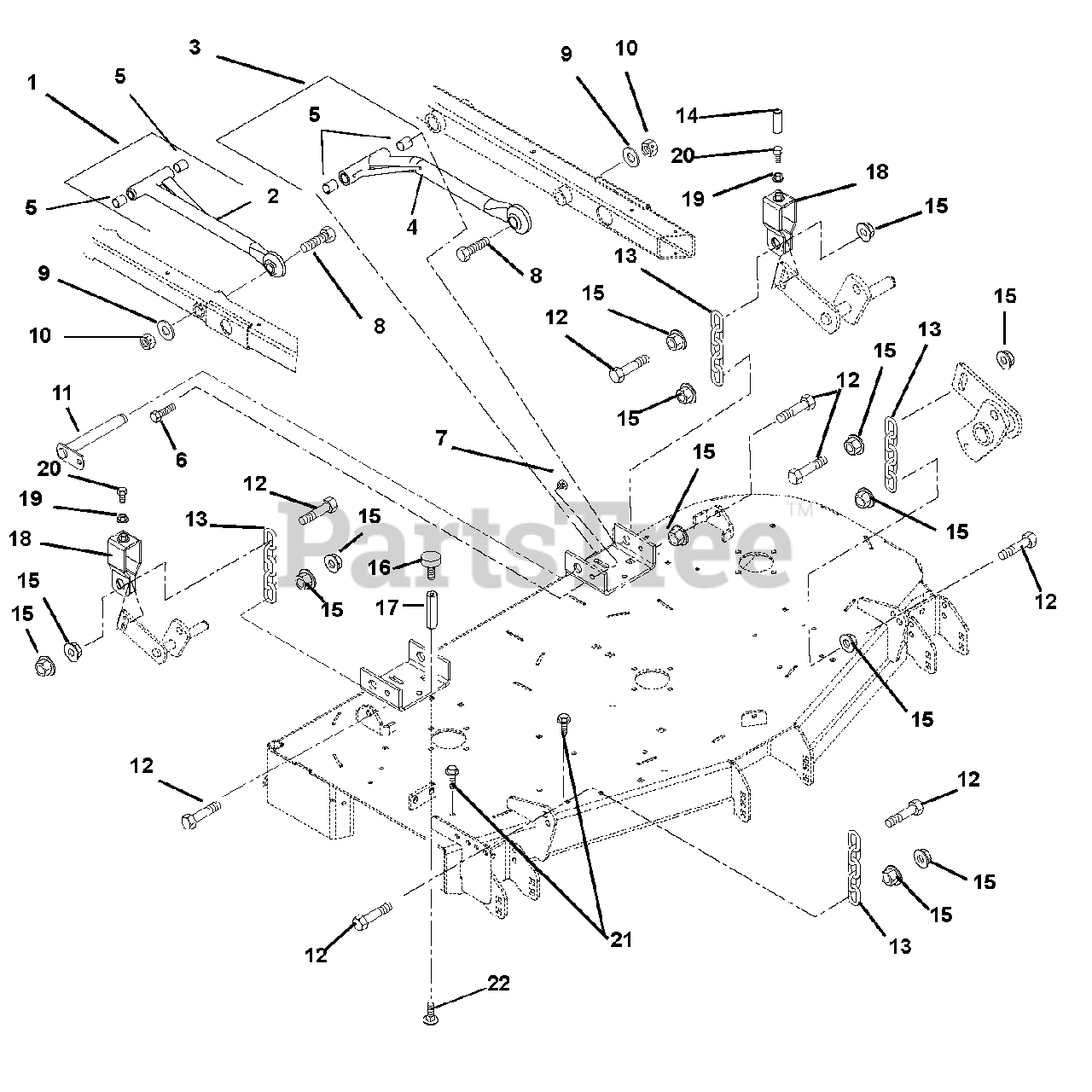

890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260) > Parts Diagrams (6) > Mounting Arms And Belt Guards

  • Title
09099300

1

Assembly, Mower Mounting Arm (Contains Items 2, 5)

Part# 09099300

Note: (Contains Items 2, 5)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $223.54

09099253

2

Weldment-Mower Mounting Arm

Part# 09099253

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

04906700

3

Assembly, Mower Mounting Arm Left Hand (Contains Items 4,5)

Part# 04906700

Note: (Contains Items 4,5)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $270.50

04913853

4

Weldment, Mower Mount Arm

Part# 04913853

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $229.77

05435900

5

Bearing .75 x .875 x 1.00

Part# 05435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05959400

6

Bolt-Hex .38-16 x .75 Grade 5

Part# 05959400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06545500

7

Nut, .38-16 Nyloc Flange

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05976700

8

Bolt,Hex .875 x 5.50 Grade 5

Part# 05976700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

06444700

9

Washer-Flat-Steel .875 x 1.500 x .1196

Part# 06444700

OEM Warranty Repair Part for Gravely

Not available

06539700

10

Nut-Locking-Center .875-9

Part# 06539700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

09238900

11

Weldment, Mower Mounting Pin

Part# 09238900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $49.14

05900022

12

Bolt, Hex M12-1.75 x 50 Grade 5

Part# 05900022

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

09284700

13

Chain, Link

Part# 09284700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

07539500

14

Cap, Vinyl .50 ID x 1.50LG x .055

Part# 07539500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06500003

15

Nut, Spin Lock-Flange M12-1.75

Part# 06500003

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07533600

16

Bumper, Rubber

Part# 07533600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

07000027

17

Nut, Coupling .31-18 x 2.00

Part# 07000027

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

00442800

18

Bracket, Deck Leveling

Part# 00442800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

06536100

19

Nut, Jam .312-18

Part# 06536100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05980900

20

Bolt, Full Thread Hex .312-18 x 2.00

Part# 05980900

OEM Warranty Repair Part for Gravely

Not available

07412900

21

Screw, Tapping Hex Washer Head Thread .38-16 x .50

Part# 07412900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06200002

22

Bolt, Round Head Square Neck .31-18 x .75

Part# 06200002

OEM Warranty Repair Part for Gravely

Not available
