890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260)

60" Deck for Pro-Master 320XDZ Mower

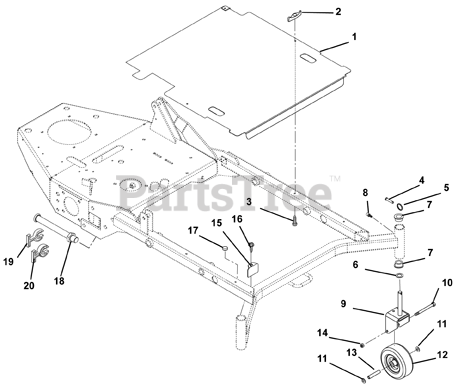

890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000101 - 000260) > Parts Diagrams (6) > Mower Deck Cover And Caster Wheels

  • Title
04909053

1

Cover, Mower Deck

Part# 04909053

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

07531700

2

Knob- Wing .31-18

Part# 07531700 (Superseded to 07534800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

07064600

3

Bolt-Rib Neck .31-18 x 2.50

Part# 07064600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.59

06810900

4

Pin-Clevis .31 x 2.62 Grade 5

Part# 06810900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05718100

5

Ring-Retaining-External 1.062 x 1.25

Part# 05718100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06435300

6

Washer-Hardened-Thrust 1.00 x 1.55 x .03

Part# 06435300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05520100

7

Bushing-Flange 1.020 x 1.385 x .75 x 1.75 Nylon

Part# 05520100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

07012600

8

Fitting-Lube .25-28 x .256

Part# 07012600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

09058200

9

Weldment, Caster Fork

Part# 09058200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $135.22

05964100

10

Bolt-Hex .50-13 x 5.50 Grade 5

Part# 05964100

OEM Warranty Repair Part for Gravely

Not available

06413300

11

Washer-Hardened Thrust .760 x 1.25 x .094 (Serial Number 00524 and below)

Part# 06413300

Note: (Serial Number 00524 and below)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

07147200

12

Wheel Assembly 9.00 x 3.50 (Serial Number 00524 and below)

Part# 07147200 (Superseded to 58903200)

Note: (Serial Number 00524 and below)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $167.64

07100040

Wheel Assembly (Serial Number 00525 and above)

Part# 07100040

Note: (Serial Number 00525 and above)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $116.07

09081500

13

Bearing .532 x .750 x 3.97 (Serial Number 00524 and below)

Part# 09081500

Note: (Serial Number 00524 and below)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

05400008

Bearing .532 x .750 x 4.06 (Serial Number 00525 and above)

Part# 05400008

Note: (Serial Number 00525 and above)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.63

06543600

14

Nut-Locking-Top-Flange .50-13

Part# 06543600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

04912853

15

Cover, Mower Tube

Part# 04912853

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

07412000

16

Screw-Tapping .25-20 x .50 Hex Washer Head

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07512600

17

Bumper

Part# 07512600

OEM Warranty Repair Part for Gravely

Not available

09260800

18

Post

Part# 09260800

OEM Warranty Repair Part for Gravely

Not available

09212200

19

Stop, Cylinder .34 Thick

Part# 09212200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

09212300

20

Stop, Cylinder .680 Thick

Part# 09212300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53
