890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000261 - 000999)

60" Deck for Pro-Master 320XDZ Mower

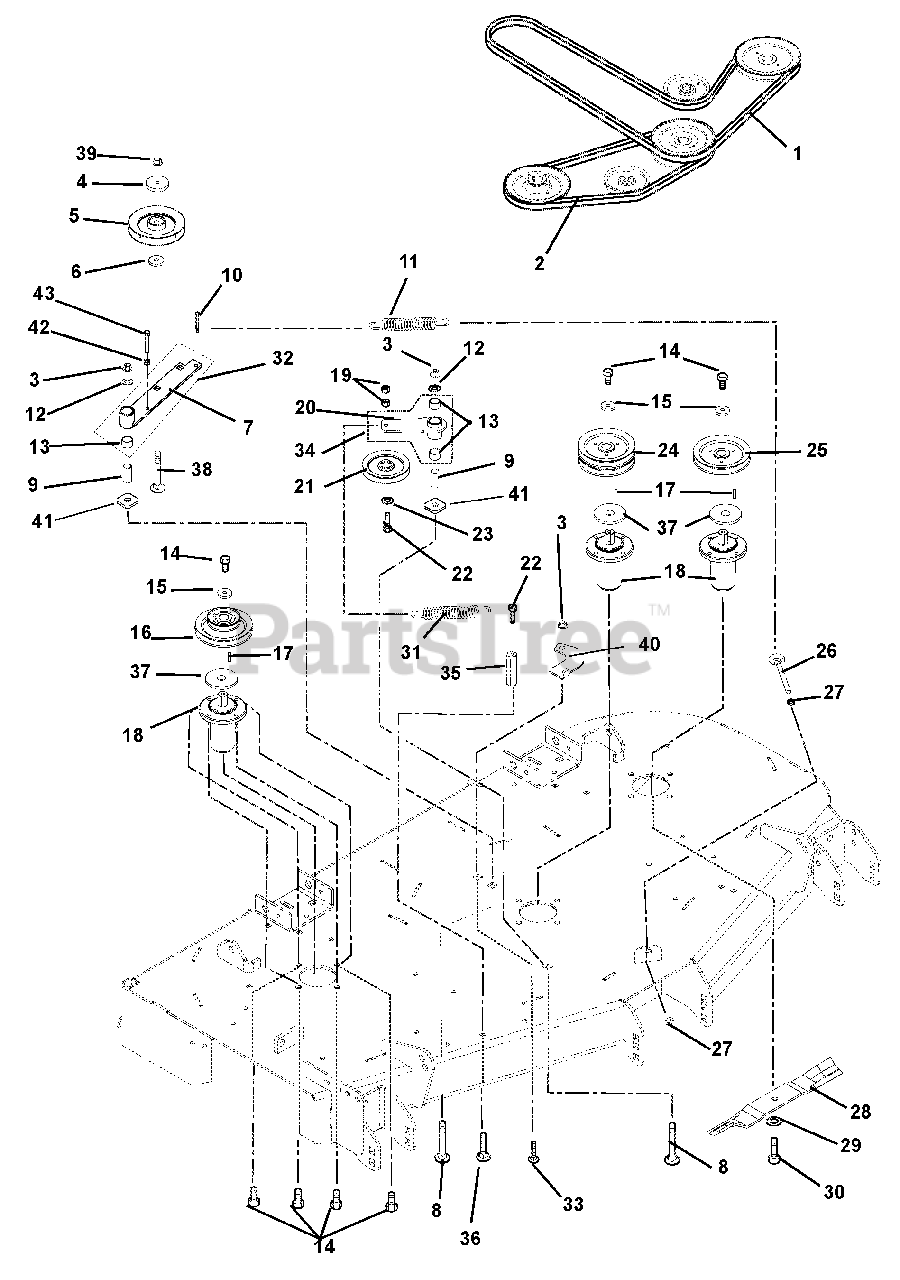

890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 000261 - 000999) > Parts Diagrams (6) > Belts, Spindles, Idlers, Mower Blades

  • Title
07200328

1

Belt, 144.5" Long, PTO Drive Hex

Part# 07200328

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $94.81

07200038

2

V-Belt, 63" Long Cog B-Section

Part# 07200038

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $54.73

06500010

3

Nut, .50-13 Nyloc Flange

Part# 06500010

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00450100

4

Cap, Idler Bearing Sealing

Part# 00450100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

07328000

5

Pulley, V 6.0 x .500 ID DBL. Bearing (SN 000101 - 000999)

Part# 07328000

Note: (SN 000101 - 000999)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $78.20

07300429

5

Pulley, V 6.0 x .500 ID SNGL Bearing (SN 001000 and up)

Part# 07300429 (Superseded to 07300527)

Note: (SN 001000 and up)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

05500905

6

Bushing, Spacer .502 x .997 x 0.50

Part# 05500905

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

03774251

7

Arm, Idler

Part# 03774251

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $49.14

06200003

8

Bolt, Round Head Square Neck .50-13 x 3.50

Part# 06200003

OEM Warranty Repair Part for Gravely

Not available

01581700

9

Bushing, Spacer .502 x .997 x 2.03

Part# 01581700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

07000034

10

Bolt, Shoulder .38-16 x .30 Hex

Part# 07000034

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08300030

11

Spring, Extension

Part# 08300030 (Superseded to 08300505)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.30

06430200

12

Washer, Flat Steel .531x 1.250 x.100

Part# 06430200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500123

13

Bushing, 1.00 x 1.125 x 1.936

Part# 05500123 (Superseded to 05501234)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

05900013

14

Bolt, Hex .38-16 x 1.00

Part# 05900013

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06400006

15

Washer, Flat Steel .406 x 1.50 x .245

Part# 06400006

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

07300026

16

Sheave, Double, 1" ID x 6.75" x 4.35" OD

Part# 07300026 (Superseded to 07329167)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $72.61

06611200

17

Key, Square .25 x .25 x 1 RC 40-50

Part# 06611200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

69219700

18

Spindle Assembly

Part# 69219700 (Superseded to 59225700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36

06529600

19

Nut, Locking-Center .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03774100

20

Arm, Idler

Part# 03774100 (Superseded to 03774151)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $44.66

07300103

21

Assembly, V-Idler 5.00 O.D.

Part# 07300103 (Superseded to 07340100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $30.69

05962900

22

Bolt, Hex .38-16 x 2.25

Part# 05962900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06436200

23

Washer, Flat Steel .406 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07300021

24

Sheave, Double 1" ID x 6.75" OD

Part# 07300021 (Superseded to 59211500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

07300022

25

Sheave, Single 1" ID x 6.75" OD

Part# 07300022 (Superseded to 59211600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

07000030

26

Bolt, .38-16 x 4.50 .62 Diameter Eye

Part# 07000030 (Superseded to 07001604)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

06535900

27

Nut, Hex, Jam .375-16

Part# 06535900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

09081200

28

Blade, Mower (20.50")

Part# 09081200

Note: (20.50")

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.30

06445700

29

Washer, Bellville .63 x 1.625 x.14

Part# 06445700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05978900

30

Bolt, Hex .62-18 x 1.75 Grade 8

Part# 05978900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

08336000

31

Spring, Extension

Part# 08336000 (Superseded to 08300507)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

03796300

32

Assembly, PTO Idler Pivot Arm (Includes item # 7 and item # 13)

Part# 03796300 (Superseded to 59218300)

Note: (Includes item # 7 and item # 13)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.29

06200006

33

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

Part# 06200006

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

03796400

34

Assembly, Idler Pivot Arm (Includes item # 13 and item # 20)

Part# 03796400

Note: (Includes item # 13 and item # 20)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.29

06533500

35

Nut, Coupling .375-16 x 1.75

Part# 06533500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06212000

36

Bolt, Round Head Square Neck .38-16 x 1.00

Part# 06212000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

00481000

37

Retainer, Grease

Part# 00481000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06224900

38

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

Part# 06224900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06536300

39

Nut, Locking Center .50-13

Part# 06536300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

02053051

40

Stop, PM320 PTO Idler Arm

Part# 02053051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06400829

41

Washer, Flat Steel .640 x 1.75 x .250

Part# 06400829

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06529400

42

Nut, Hex .38-16

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05961400

43

Bolt, Hex .38-16 x 2.75

Part# 05961400 (Superseded to 05901611)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30
