890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 001000 - 019999)

60" Deck for Pro-Master 320XDZ Mower

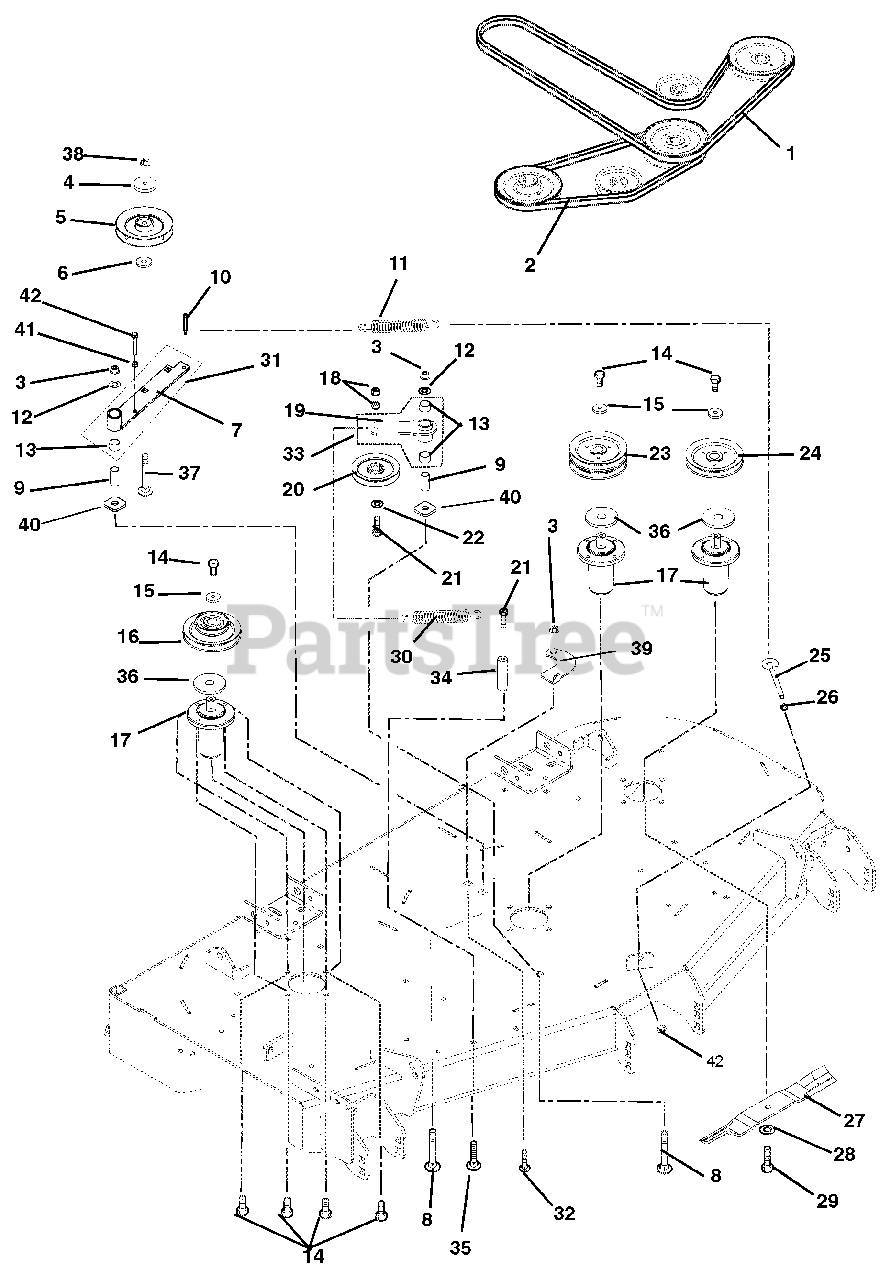

890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 001000 - 019999) > Parts Diagrams (6) > Belts, Spindles, Idlers, Mower Blades

  • Title
07200328

1

Belt, BB-Wrapped Clutching Hex

Part# 07200328

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $99.56

07200038

2

V-Belt, 63" Long Cog B-Section

Part# 07200038

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $54.73

06500010

3

Nut, .50-13 Nyloc Flange

Part# 06500010

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00450100

4

Cap, Idler Bearing Sealing

Part# 00450100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

07300527

5

Sheave .50" ID x 6.00" OD V-Idler

Part# 07300527

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

05500905

6

Bushing, Spacer .502 x .997 x 0.50

Part# 05500905

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03774251

7

Arm, Idler

Part# 03774251

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $58.98

06225000

8

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5

Part# 06225000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

01581700

9

Bushing, Spacer .502 x .997 x 2.03

Part# 01581700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

07000034

10

Bolt, Shoulder .38-16 x .30 Hex

Part# 07000034

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08300505

11

Spring, Extension

Part# 08300505

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.30

06442000

12

Washer, Flat Steel .563 x 1.38 x .109

Part# 06442000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05500123

13

Bushing, 1.00 x 1.125 x 1.936

Part# 05500123 (Superseded to 05501234)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $9.34

05900013

14

Bolt, Hex .38-16 x 1.00 (Torque = 380-480 lbf-in (42.93-54.23 N•m))

Part# 05900013

Note: (Torque = 380-480 lbf-in (42.93-54.23 N•m))

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06400006

15

Washer, Flat Steel .406 x 1.50 x .245

Part# 06400006

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

07329167

16

Pulley, Double- 1" ID x 6.75" & 4.25" OD

Part# 07329167

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $72.61

69221300

17

Assembly, Spindle - Long G3500

Part# 69221300 (Superseded to 59225700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $212.36

06529600

18

Nut, Locking-Center .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03774151

19

Weldment, Idler Arm

Part# 03774151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $53.61

07300526

20

Sheave, .38" ID x 5.00"OD V-Idler

Part# 07300526 (Superseded to 07340100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

05962900

21

Bolt, Hex .38-16 x 2.25

Part# 05962900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06436200

22

Washer, Flat Steel .406 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07328867

23

Pulley, Double-1" ID x 6.75" OD

Part# 07328867 (Superseded to 59211500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

07328967

24

Pulley, V 1" ID x 6.75" OD

Part# 07328967 (Superseded to 59211600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

07000030

25

Bolt, .38-16 x 4.50 .62 Diameter Eye

Part# 07000030 (Superseded to 07001604)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

06535900

26

Nut, Hex, Jam .375-16

Part# 06535900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

09081200

27

Blade, Mower (20.50")

Part# 09081200

Note: (20.50")

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

06445700

28

Washer, Bellville .63 x 1.625 x .14

Part# 06445700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05978900

29

Bolt, Hex .62-18 x 1.75 Grade 8 (Torque = 115-160 lbf-in (12.99-18.08 N•m))

Part# 05978900

Note: (Torque = 115-160 lbf-in (12.99-18.08 N•m))

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

08300507

30

Spring, Extension

Part# 08300507

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

03796300

31

Assembly, PTO Idler Pivot Arm (Includes item # 7 and item # 13)

Part# 03796300 (Superseded to 59218300)

Note: (Includes item # 7 and item # 13)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.29

06200006

32

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

Part# 06200006

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

03796400

33

Assembly, Idler Pivot Arm (Includes item # 13 and item # 19)

Part# 03796400

Note: (Includes item # 13 and item # 19)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $60.82

06533500

34

Nut, Coupling .375-16 x 1.75

Part# 06533500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06212000

35

Bolt, Round Head Square Neck .38-16 x 1.00

Part# 06212000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

00481000

36

Retainer, Grease

Part# 00481000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $9.34

06224900

37

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

Part# 06224900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06536300

38

Nut, Locking Center .50-13

Part# 06536300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02053051

39

Stop, PM320 PTO Idler Arm

Part# 02053051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

06400829

40

Washer, Flat Steel .640 x 1.75 x .250

Part# 06400829

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06529400

41

Nut, Hex .38-16

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05961400

42

Bolt, Hex .38-16 x 2.75

Part# 05961400 (Superseded to 05901611)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30
