890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 001000 - 019999) Deck Lift Parts Diagram

60" Deck for Pro-Master 320XDZ Mower

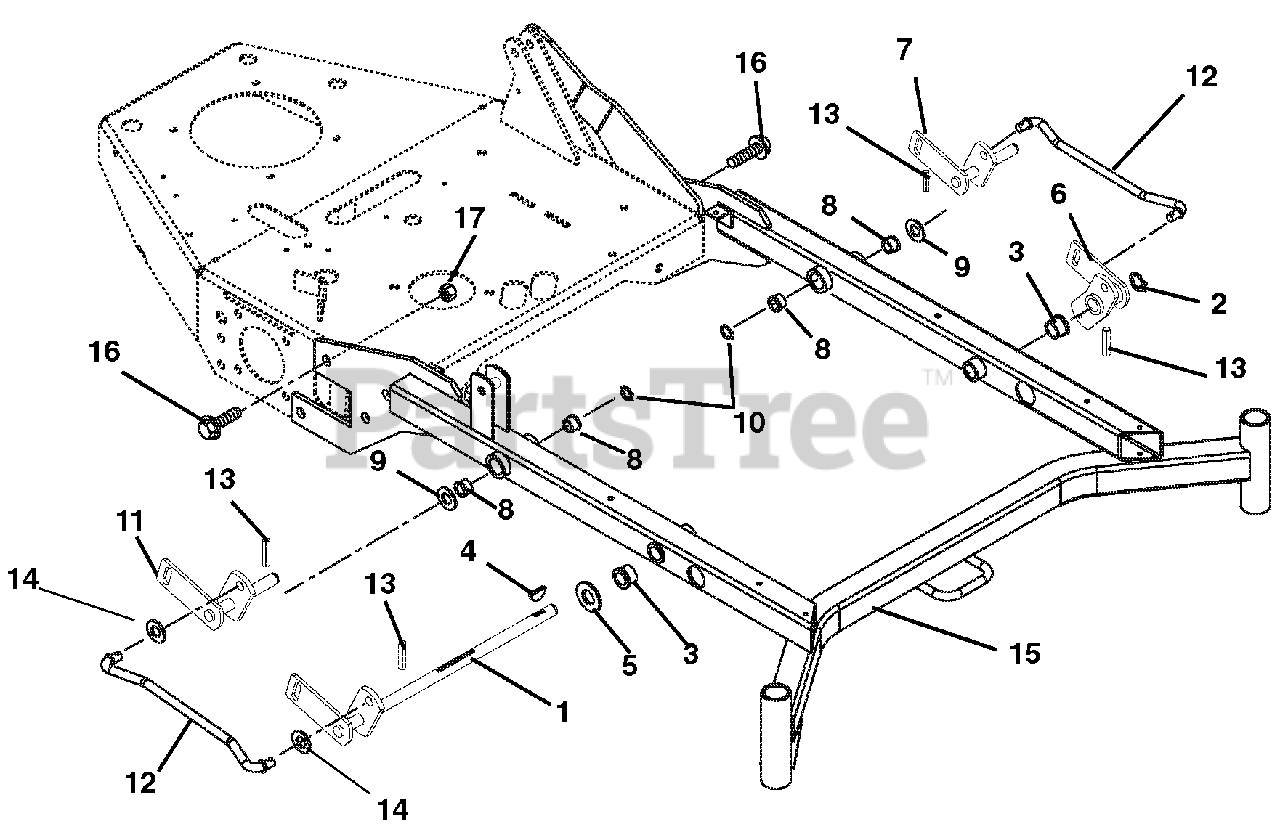

Deck Lift Parts Diagram

  • Title

1

Gravely 00456000

Lift, Mower

$262.99

$

In Stock, only 1 left!

0

2

Gravely 05707300

Ring, Retaining-External 1.00 x .078

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 05500123

Bushing 1.00 x 1.25 x 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 7

0

4

Gravely 06608900

Key, Woodruff .25 x 1.00

$3.99

$

In Stock, Qty 20+

0

5

Gravely 06443000

Washer, Flat-Steel- 1.062 x 2.0 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 00441000

Mower, Lift Arm

$97.99

$

Usually ships in 4-12 days

0

7

Gravely 00481600

Weldment, Rear Lift Arm-Left Hand

$66.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

Bushing, Flange-Nylon .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06413400

Washer, Hardened-Steel .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05714600

Ring, Retaining-External .689 x .077

$2.49

$

In Stock, Qty 5

0

11

Gravely 00481500

Weldment, Rear Lift Arm- Right Hand

$83.99

$

Usually ships in 4-12 days

0

12

Gravely 04063000

Rod, Lift Assist 16.35"

$41.99

$

Usually ships in 4-12 days

0

13

Gravely 05800700

Pin, Roll .250 x 1.25

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06436100

Washer, Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 02950253

Weldment, Mower Frame 50/60

$775.99

$

Usually ships in 4-12 days

0

16

Gravely 05968700

Bolt, Hex .62-11 x 1.50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06540700

Nut, Locking-Nylon .625-11

$3.99

$

In Stock, Qty 14

0
