890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 020000 & Above) Deck Lift Parts Diagram

60" Deck for Pro-Master 320XDZ Mower

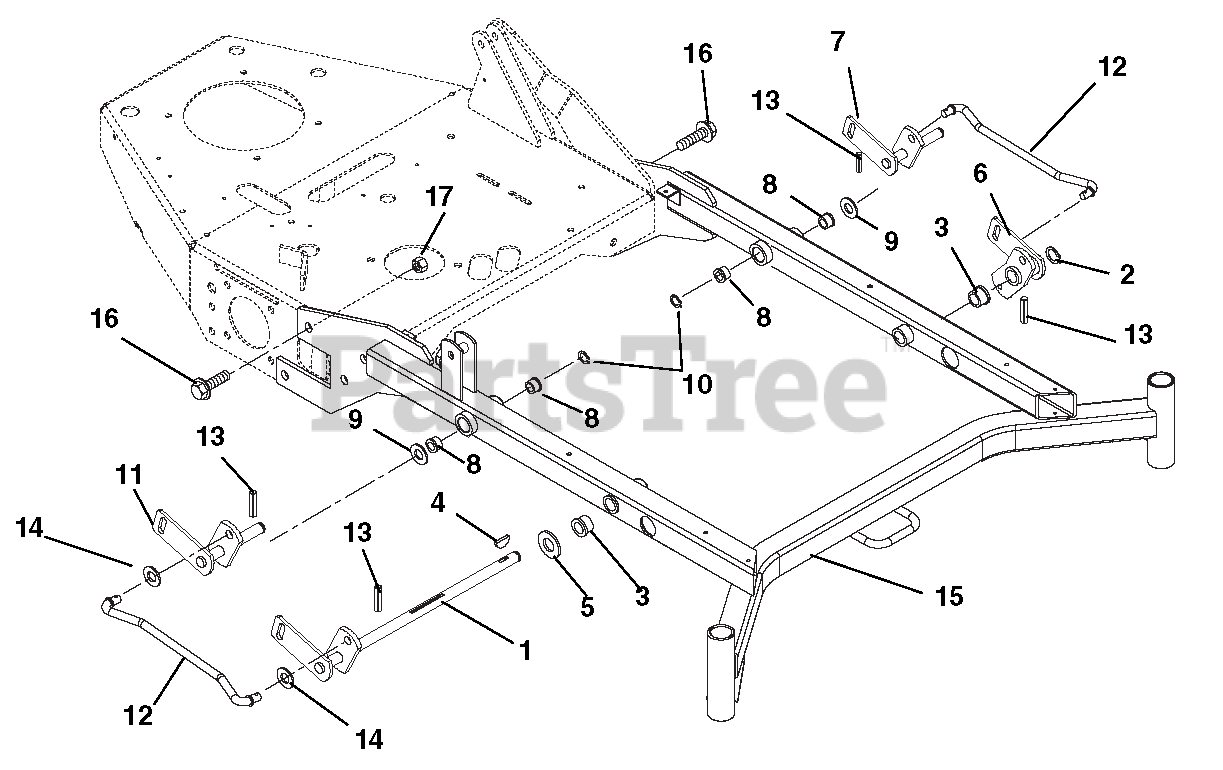

Deck Lift Parts Diagram

  • Title

1

Gravely 00456000

WMT, FRONT MOWER LIFT (HYD)

$268.99

$

Usually ships in 4-12 days

0

2

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 9

0

3

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

4

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 14

0

5

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 00441000

WMT, LH FRONT MOWER LIFT

$101.99

$

Usually ships in 4-12 days

0

7

Gravely 00481600

WMT, LH REAR LIFT ARM (100)

$67.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

9

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

10

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 1 left!

0

11

Gravely 00481500

WMT, RH REAR LIFT ARM (100)

$85.99

$

In Stock, only 1 left!

0

12

Gravely 04063000

ROD-LIFT ASSIST 16.35"

$42.99

$

Usually ships in 4-12 days

0

13

Gravely 05800700

PIN-ROLL .250X1.25

$1.49

$

In Stock, only 3 left!

0

14

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 02950253

DECK CARRIER FRAME(320)WMT-RED

$

$

Not available

16

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, Qty 9

0

17

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0
