890100 - Gravely 60" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

60" Deck for Rapid XZ Side Discharge Mower

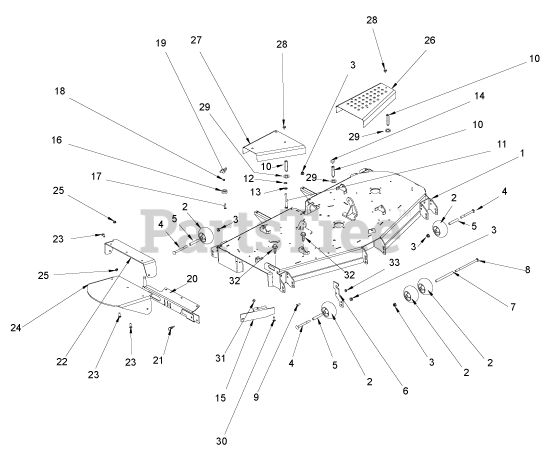

Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

  • Title

1

Gravely 00486653

WMT,60" SIDE DISCH DECK (OFM)
(Superseded to 59004400)

Note: (OFM) (890100)

$

$

Not available

Gravely 00678153

52"SIDE DISCHARGE DECK RAPIDXZ

Note: (890101)

$

$

Not available

2

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

5

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

6

Gravely 00474753

CHUTE STORAGE BRACKET - RED

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0

8

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

11

Gravely 05900102

BLT-HEX .5-13-4.5GR8 FULL THD
(Superseded to 05901736)

$10.99

$

In Stock, Qty 18

0

12

Gravely 06418100

WSHR-HDND-STL-THR.515X.97X.062

$3.99

$

In Stock, only 3 left!

0

13

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

15

Gravely 00374153

60" DISCHARGE BAFFLE - RED

Note: (890100)

$29.99

$

In Stock, Qty 6

0

Gravely 00440853

52" DISCHARGE BAFFLE - RED

Note: (890101)

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

17

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

20

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

$131.99

$

In Stock, only 1 left!

0

21

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

22

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$127.99

$

In Stock, only 1 left!

0

23

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

25

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 00601353

GUARD, 60" LH SPINDLE (OFM)

Note: (890100)

$

$

Not available

Gravely 00698253

GUARD,52" LH SPINDLR RAPID XZ

Note: (890101)

$

$

Not available

27

Gravely 00370653

60"RH SPINDLE SHEAVE GUARD-RED

Note: (890100)

$70.99

$

In Stock, only 4 left!

0

Gravely 00439453

48"-52" RH SPNDL SHV GUARD-RED

Note: (890101)

$49.99

$

Usually ships in 4-12 days

0

28

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

29

Gravely 06300002

WSHR-LOCK INT .375

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
