890102 - Gravely 72" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Lift Cylinder And Fittings Parts Diagram

72" Deck for Rapid XZ Side Discharge Mower

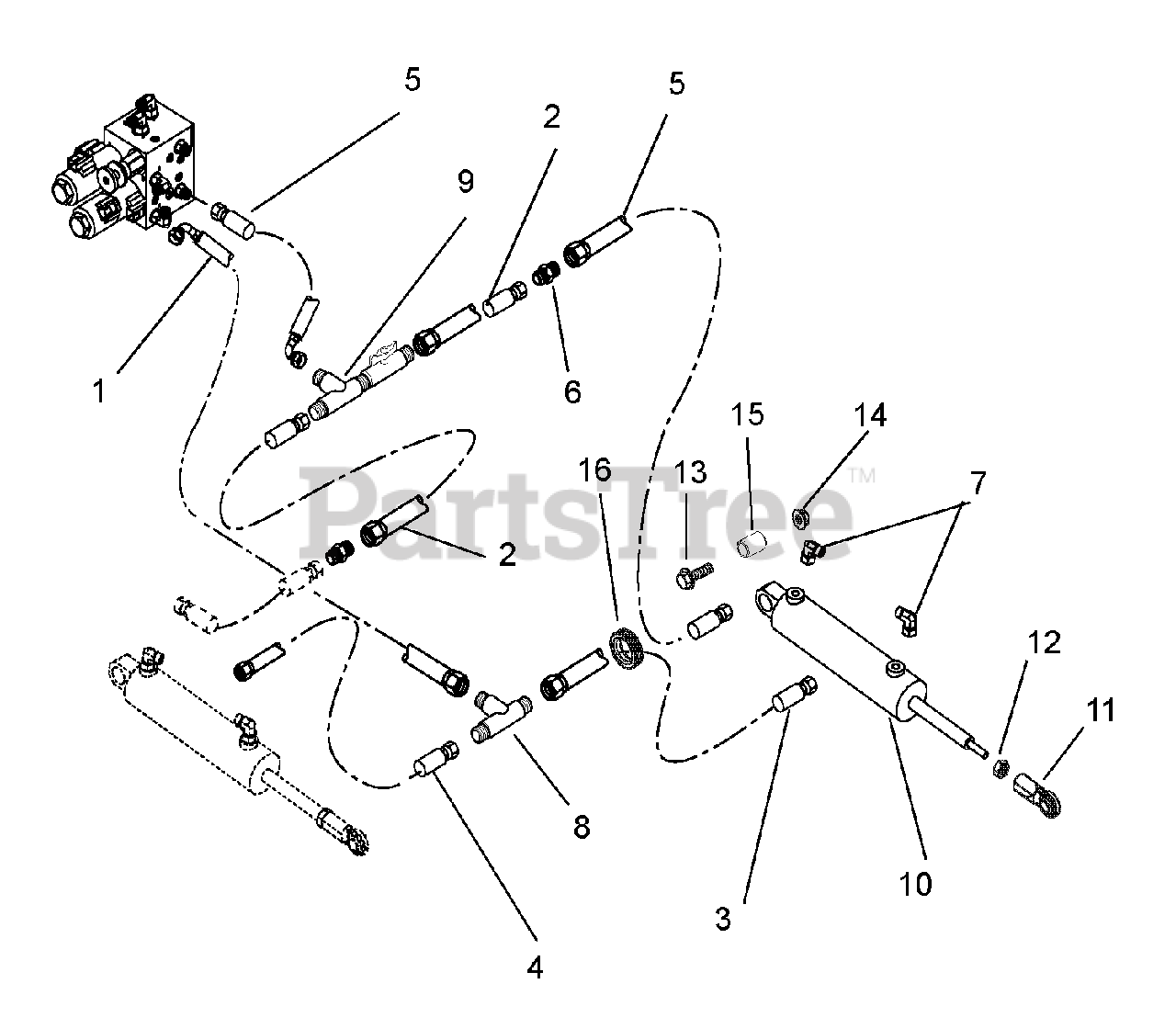

Lift Cylinder And Fittings Parts Diagram

  • Title

1

Gravely 00963400

Hose, Hydraulic

$

$

Not available

2

Gravely 00963500

Hose, Hydraulic

$

$

Not available

3

Gravely 00963600

Hose, Hydraulic

$

$

Not available

4

Gravely 00963700

Hose, Hydraulic

$

$

Not available

5

Gravely 00609000

Hose, Hydraulic

$48.99

$

Usually ships in 4-12 days

0

6

Gravely 07000044

Fitting, Hydraulic Bulkhead M4F-M4F

$

$

Not available

7

Gravely 07000045

Fitting, Hydraulic

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 07001431

Fitting, Hydraulic, M4F-M4F-M4F

$

$

Not available

9

Gravely 00963800

Valve, Hydraulic, M4F-M4F-M4F

$

$

Not available

10

Gravely 00585100

Cylinder, Hydraulic Deck Lift

$246.99

$

Usually ships in 4-12 days

0

11

Gravely 09221600

Rod End, 5/8 RH Female

$26.99

$

Usually ships in 4-12 days

0

12

Gravely 06539600

Nut, Jam .625-18

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05966600

Bolt, Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 09215200

Bushing, .516 x 1.00 x 1.05

$36.99

$

Usually ships in 4-12 days

0

16

Gravely 07536800

Grommet, 1.25

$14.99

$

Usually ships in 4-12 days

0
