890102 - Gravely 72" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Lift Cylinder And Fittings Parts Diagram

72" Deck for Rapid XZ Side Discharge Mower

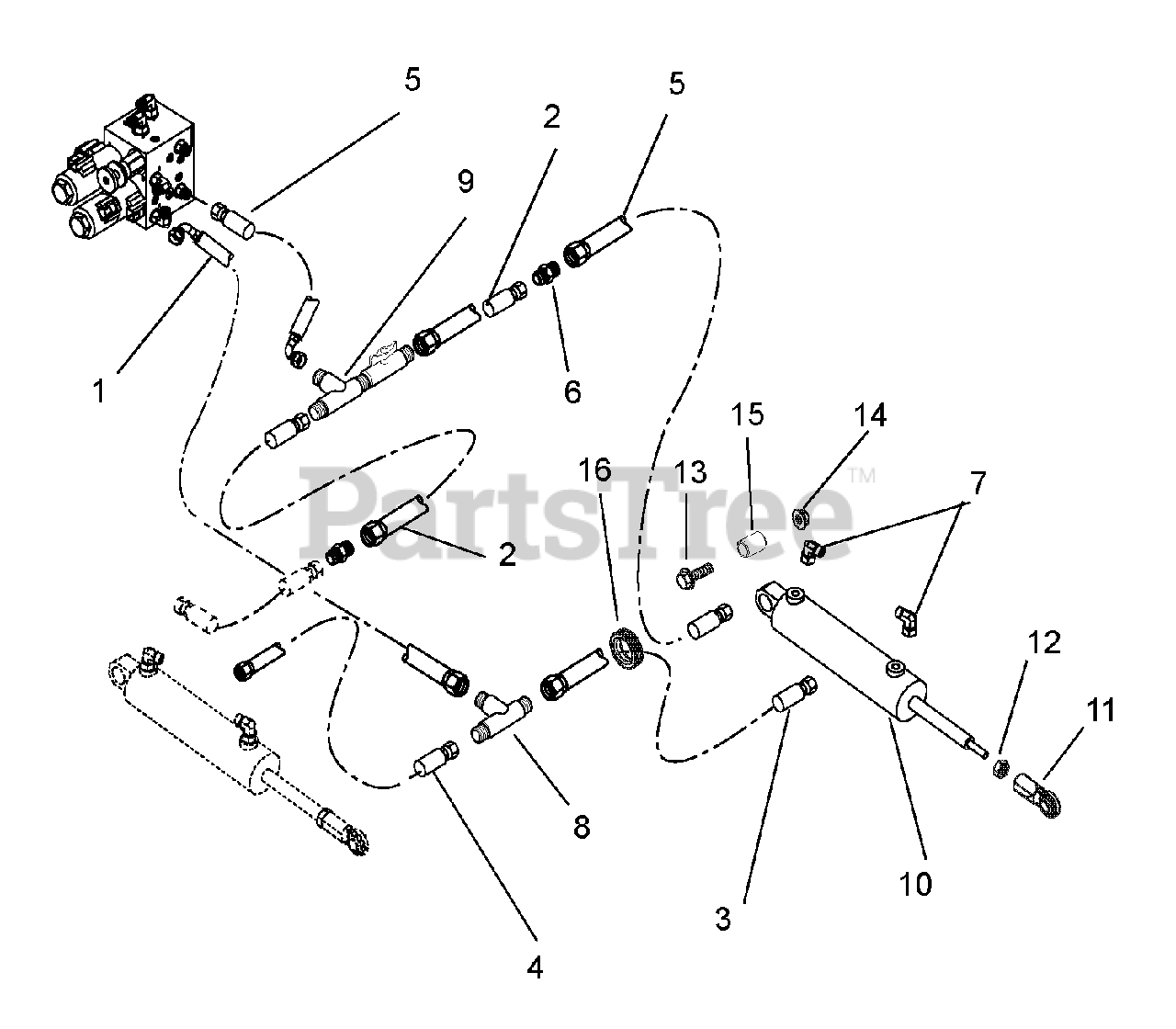

Lift Cylinder And Fittings Parts Diagram

  • Title

1

Gravely 00963400

HOSE,HYD .25-19-2K F04F9-FO4F4

$

$

Not available

2

Gravely 00963500

HOSE,HYD .25-7.8-2KF04F4-F04F4

$

$

Not available

3

Gravely 00963600

HOSE,HYD .25-23-2K F04F0-F04F0

$

$

Not available

4

Gravely 00963700

HOSE,HYD.25-17.6-2KF04F0-F04F0

$

$

Not available

5

Gravely 00609000

HOSE,HYD .25-16-2K F04F0-F04F9

$48.99

$

Usually ships in 4-12 days

0

6

Gravely 07000044

FTG,HYD BULKHEAD M4F-M4F

$

$

Not available

7

Gravely 07000045

ADPTR,HYD FTG 90 M4F-M6O C5OLO

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 07001431

FTG,HYD M4F-M4F-M4F

$

$

Not available

9

Gravely 00963800

VALVE,HYD M4F-M4F-M4F

$

$

Not available

10

Gravely 00585100

CYLINDER, HYD. DECK LIFT

$246.99

$

Usually ships in 4-12 days

0

11

Gravely 09221600

ROD END, 5/8 RH - FEMALE

$26.99

$

Usually ships in 4-12 days

0

12

Gravely 06539600

NUT-JAM .625-18 YWZC

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$36.99

$

Usually ships in 4-12 days

0

16

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0
