890102 - Gravely 72" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

72" Deck for Rapid XZ Side Discharge Mower

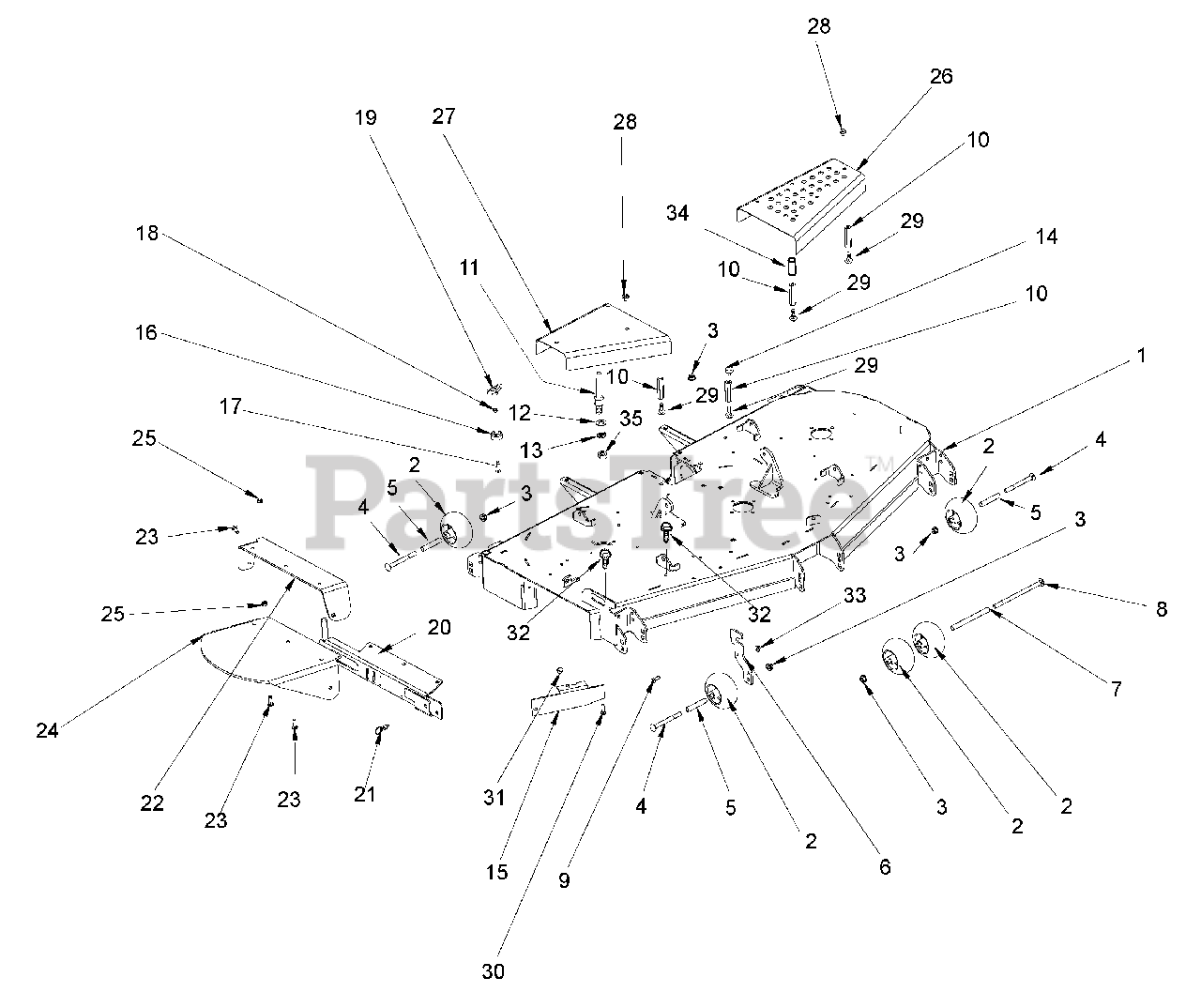

Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

  • Title

1

Gravely 00695853

WMT - 72" SIDE DISCHARGE (OFM)

Note: (OFM)

$

$

Not available

2

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

5

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

6

Gravely 00474753

CHUTE STORAGE BRACKET - RED

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0

8

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

11

Gravely 00963300

STUD, DECK STOP

$74.99

$

Usually ships in 4-12 days

0

12

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.49

$

In Stock, only 2 left!

0

14

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

15

Gravely 00442453

72" DISCHARGE BAFFLE - RED

$56.99

$

In Stock, only 1 left!

0

16

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

17

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

20

Gravely 00472653

72" DISCH CHUTE MTG WMT - RED
(Superseded to 00980653)

$168.99

$

Usually ships in 4-12 days

0

21

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

22

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$127.99

$

In Stock, only 1 left!

0

23

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

25

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 01056653

GUARD-72" LH SPINDLE SHV (OFM)

$133.99

$

Usually ships in 4-12 days

0

27

Gravely 01056753

GUARD-72" RH SPINDLE SHV (OFM)

$

$

Not available

28

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

29

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 07500033

HOSE-.88ID X 1.25OD X 2.50 PVC

$

$

Not available

35

Gravely 06523900

NUT-HEX-SL .625-18 YWZC

$3.99

$

Usually ships in 4-12 days

0
