890102 - Gravely 72" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

72" Deck for Rapid XZ Side Discharge Mower

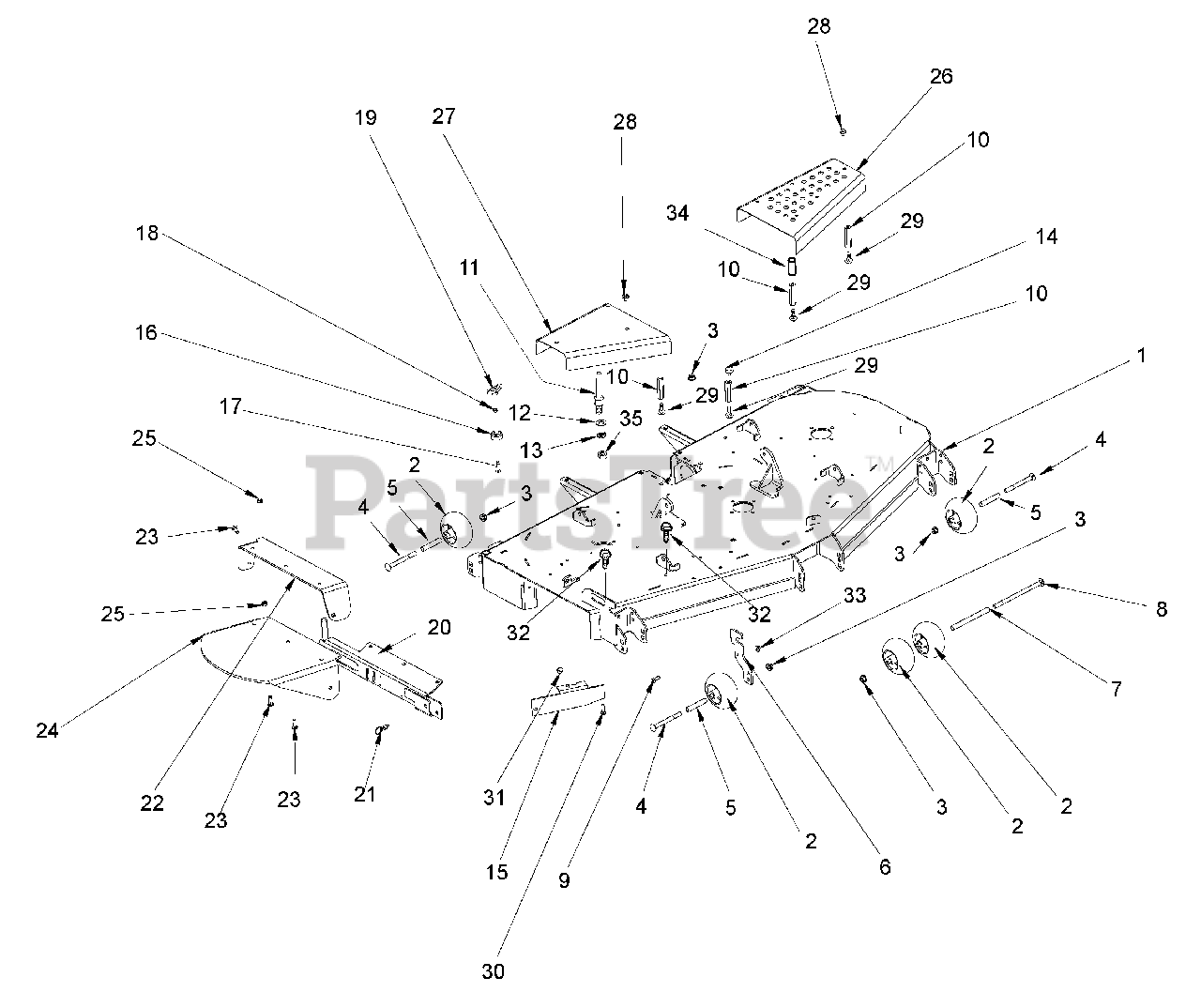

Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

  • Title

1

Gravely 00695853

Weldment, 72" Side Discharge Deck (OFM)

Note: (OFM)

$

$

Not available

2

Gravely 03905900

Wheel, Antiscalp

$13.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 YZ
(Superseded to 06200505)

$

$

Not available

5

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0

6

Gravely 00474753

Chute Storage Bracket- Red

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 00473800

Spacer, .510 x .625 x 6.70

$22.99

$

In Stock, Qty 20+

0

8

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$29.99

$

In Stock, Qty 12

0

11

Gravely 00963300

Stud, Deck Stop

$74.99

$

Usually ships in 4-12 days

0

12

Gravely 06442800

Washer, Flat Steel .656 x .31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06309500

Washer, Locking .62 x .156

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

15

Gravely 00442453

72" Discharge Baffle - Red

$56.99

$

Usually ships in 4-12 days

0

16

Gravely 07500009

Bumper, Recessed 1.50 x .63

$6.49

$

In Stock, only 2 left!

0

17

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.99

$

In Stock, Qty 13

0

18

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07534800

Knob, Clamping .312-18 Nyloc

$3.99

$

In Stock, Qty 20+

0

20

Gravely 00472653

72" Discharge Chute Mounting Weldment - Red
(Superseded to 00980653)

$168.99

$

In Stock, only 1 left!

0

21

Gravely 07000037

Pull Pin, .50-13 Thread x .310 Diameter Plunger

$11.99

$

In Stock, Qty 9

0

22

Gravely 00472353

Rubber Discharge Chute Support-Red

$127.99

$

Usually ships in 4-12 days

0

23

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 00377800

Chute, Rubber Discharge

$93.99

$

In Stock, only 2 left!

0

25

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 01056653

Guard, 72" Left Hand Spindle

$133.99

$

Usually ships in 4-12 days

0

27

Gravely 01056753

Guard, 72" Right Hand Spindle

$

$

Not available

28

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

29

Gravely 06200002

Bolt, Round Head, Square Neck .31-18 x .75 Loctite
(Superseded to 06200425)

$4.99

$

In Stock, Qty 7

0

30

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 07412900

Screw, Tapping .38-16 x .50
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0

33

Gravely 06529600

Nut, Center Lock .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 07500033

Hose, .88ID x 1.25OD x 2.50 PVC

$

$

Not available

35

Gravely 06523900

Nut, Hex - Slotted .625-18

$3.99

$

In Stock, only 1 left!

0
