890102 - Gravely 72" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Mower Deck Belts, Blades And Idlers Parts Diagram

72" Deck for Rapid XZ Side Discharge Mower

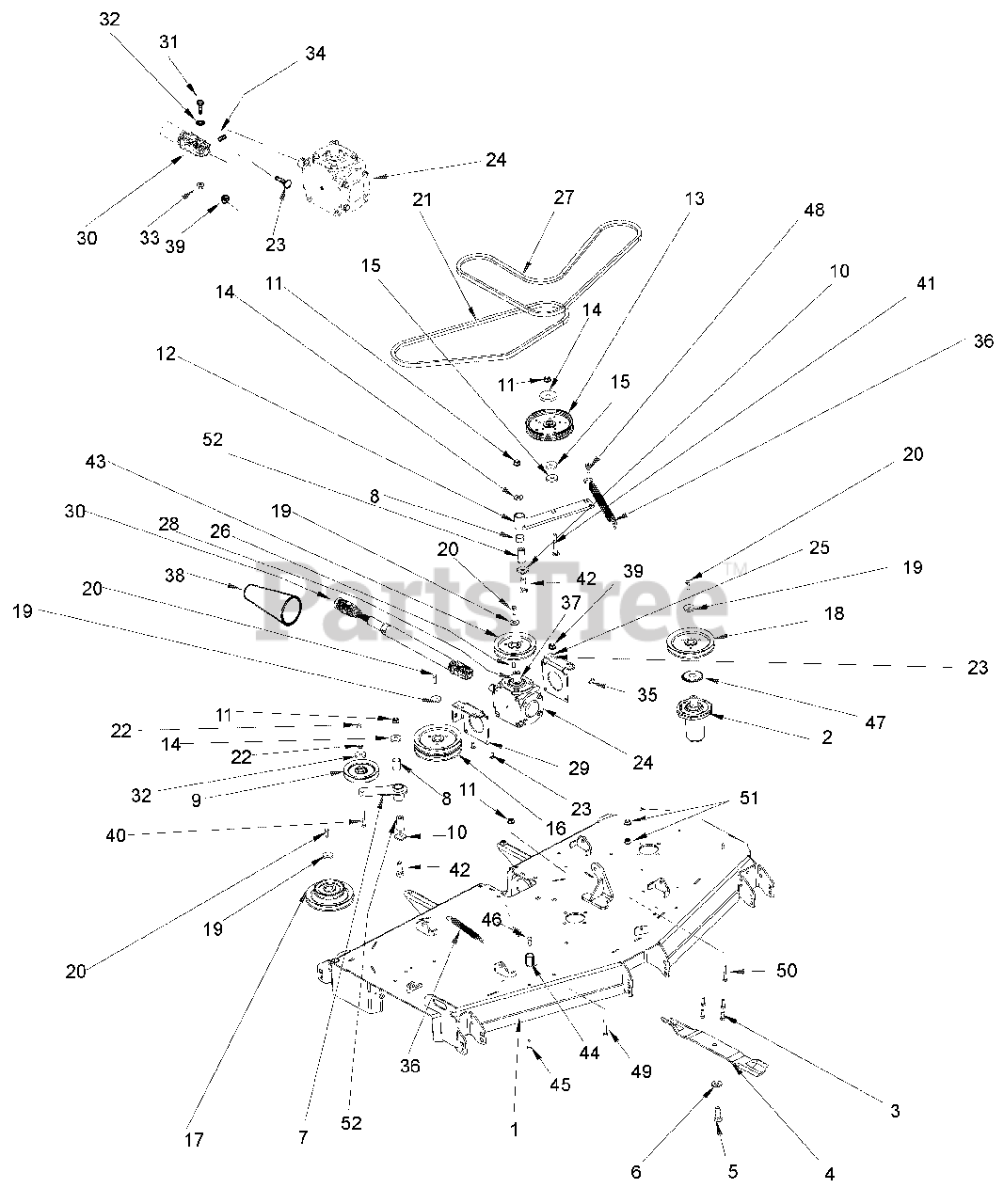

Mower Deck Belts, Blades And Idlers Parts Diagram

  • Title

1

Gravely 00695853

WMT - 72" SIDE DISCHARGE (OFM)

$

$

Not available

2

Gravely 69219700

ASSEMBLY, SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 09290500

BLADE, MOWER-72" (24.50" LG)

Note: (24.50")

$37.99

$

Usually ships in 4-12 days

0

5

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

7

Gravely 00952700

WMT,IDLER PIVOT ARM 3/8 THICK

$

$

Not available

Gravely 00459400

ASM, IDLER PIVOT ARM

Note: (includes items 7 and 8)

$85.99

$

Usually ships in 4-12 days

0

8

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

9

Gravely 07300526

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

10

Gravely 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 03774251

WMT, IDLER ARM

$70.99

$

In Stock, Qty 7

0

Gravely 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (includes items 12 and 8)

$81.99

$

In Stock, only 4 left!

0

13

Gravely 07316700

IDLER-FLAT-PLY 6.75X.510

$65.99

$

In Stock, only 3 left!

0

14

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 20+

0

16

Gravely 07300023

SHEAVE, DOUBLE 1"ID X 8.25"OD
(Superseded to 59217300)

$198.99

$

In Stock, only 1 left!

0

17

Gravely 07300027

SHV,DBL 1.0"IDX8.25" & 5.25"OD
(Superseded to 59217500)

$120.99

$

Usually ships in 4-12 days

0

18

Gravely 07300024

SHEAVE, SINGLE 1"ID X 8.25"OD
(Superseded to 59217400)

$120.99

$

In Stock, only 1 left!

0

19

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 07200039

V-BELT, B-COGGED

$76.99

$

In Stock, Qty 20+

0

22

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 00585700

GEAR BOX- RIGHT ANGLE 1.05X1.0

$

$

Not available

25

Gravely 00594751

BRACKET, GEAR BOX MTG.-LH

$50.99

$

Usually ships in 4-12 days

0

26

Gravely 06605500

KEY-STR .25X.75X.25

$2.99

$

In Stock, only 1 left!

0

27

Gravely 07240300

V-BELT, HB-WRAPPED

$104.99

$

Usually ships in 4-12 days

0

28

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 00597151

BRACKET, GEAR BOX MTG.-RH

$46.99

$

Usually ships in 4-12 days

0

30

Gravely 00697700

SHAFT,U-JOINT PTO ASSEM RAPID

$792.99

$

Usually ships in 4-12 days

0

31

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06004000

SCR-SET .38-16X.38 SKHCUP OH

$2.99

$

Usually ships in 4-12 days

0

35

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

36

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

37

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 9

0

38

Gravely 00894700

BELLOW, PTO SHAFT

$64.99

$

Usually ships in 4-12 days

0

39

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

41

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5YZ

$6.49

$

In Stock, Qty 18

0

42

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

43

Gravely 07333700

PULLEY-V 1.00 ID X 6.75 OD

$127.99

$

Usually ships in 4-12 days

0

44

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

45

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

46

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

47

Gravely 00481000

RETAINER, GREASE

$10.99

$

In Stock, Qty 12

0

48

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 17

0

49

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, Qty 6

0

50

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

51

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

52

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0
