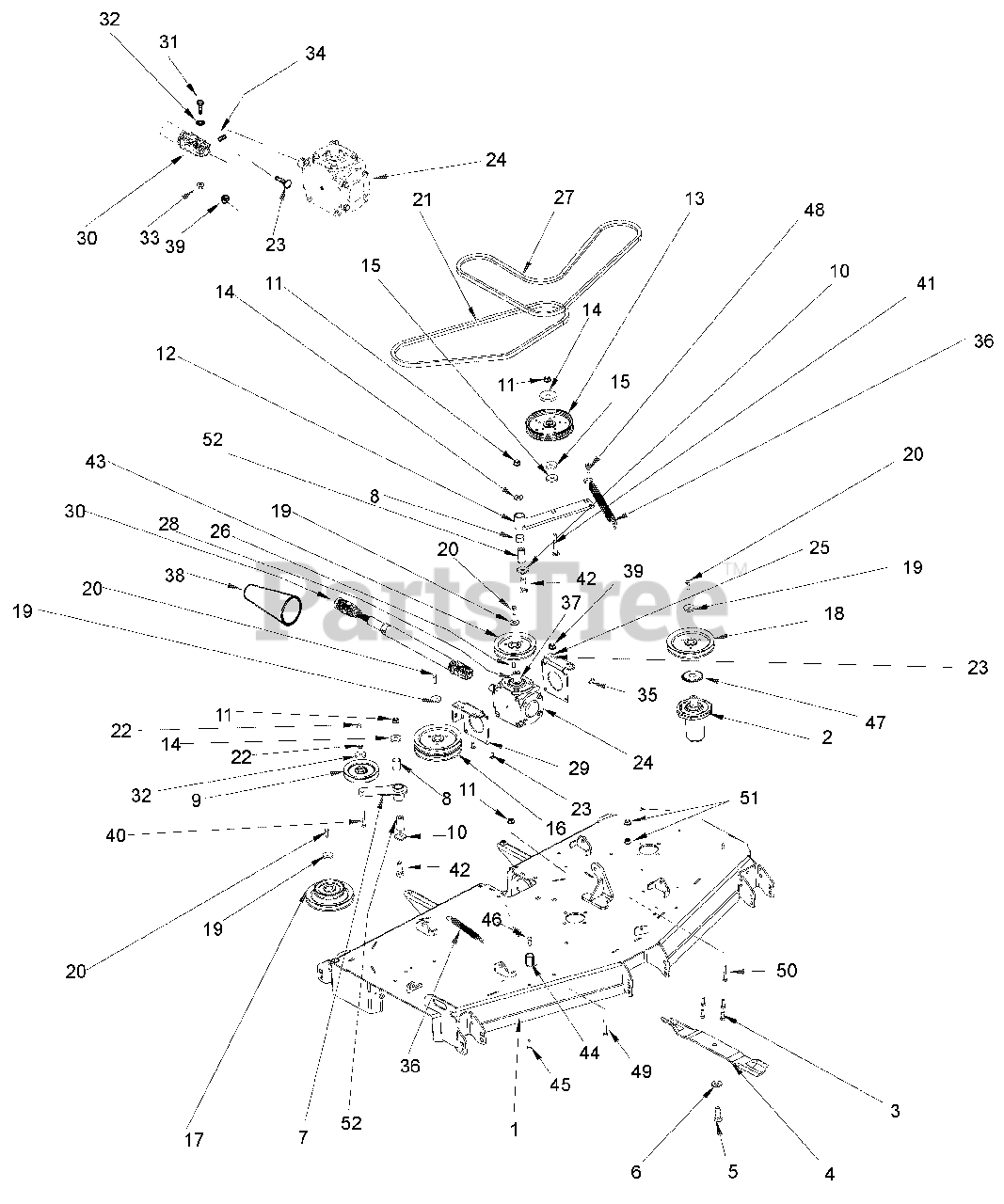

890102 - Gravely 72" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Mower Deck Belts, Blades And Idlers Parts Diagram

72" Deck for Rapid XZ Side Discharge Mower

Mower Deck Belts, Blades And Idlers Parts Diagram

  • Title

1

Gravely 00695853

Weldment, 72" Side Discharge Deck

$

$

Not available

2

Gravely 69219700

Assembly, Spindle
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 17

0

4

Gravely 09290500

Blade, Mower (24.50")

Note: (24.50")

$36.99

$

In Stock, Qty 19

0

5

Gravely 05978900

Bolt-Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

7

Gravely 00952700

Weldment, Idler Pivot Arm

$

$

Not available

Gravely 00459400

Assembly, Idler Pivot Arm (includes items 7 and 8)

Note: (includes items 7 and 8)

$83.99

$

Usually ships in 4-12 days

0

8

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 07300526

Sheave- .38" ID x 5.00" OD V-Idler
(Superseded to 07351800)

$30.99

$

Usually ships in 4-12 days

0

10

Gravely 06400829

Washer-Flat, .640 x 1.75 x .250

$3.99

$

In Stock, Qty 8

0

11

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 03774251

Idler Pivot Arm Weldment-Black

$68.99

$

In Stock, Qty 5

0

Gravely 03796300

Assembly, Idler Pivot Arm (includes items 12 and 8)
(Superseded to 59218300)

Note: (includes items 12 and 8)

$79.99

$

In Stock, only 1 left!

0

13

Gravely 07316700

Idler, Flat-Pulley 6.75 x .510

$63.99

$

In Stock, only 4 left!

0

14

Gravely 06442000

Washer, Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

15

Gravely 05500905

Bushing, Spacer .502 x .997 x .50 PM

$11.99

$

In Stock, Qty 14

0

16

Gravely 07300023

Sheave, Double 1" ID x 8.25" OD
(Superseded to 59217300)

$194.99

$

Usually ships in 4-12 days

0

17

Gravely 07300027

Sheave, Double 1.0" ID x 8.25" x 5.25" OD
(Superseded to 59217500)

$118.99

$

Usually ships in 4-12 days

0

18

Gravely 07300024

Sheave, Single 1" ID x 8.25" OD
(Superseded to 59217400)

$118.99

$

Usually ships in 4-12 days

0

19

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 17

0

21

Gravely 07200039

Belt, B Raw Cogged

$74.99

$

In Stock, only 1 left!

0

22

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

24

Gravely 00585700

Gear Box, Right Angle 1.05 x 1.0

$

$

Not available

25

Gravely 00594751

Bracket, Gear Box Mounting

$48.99

$

Usually ships in 4-12 days

0

26

Gravely 06605500

Key, Straight .25 x .75 x .25

$2.99

$

In Stock, only 1 left!

0

27

Gravely 07240300

Belt, HB Wrapped

$102.99

$

In Stock, only 1 left!

0

28

Gravely 06436300

Washer, Flat Steel 1.00 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

29

Gravely 00597151

Bracket, Gear Box Mounting RH

$45.99

$

Usually ships in 4-12 days

0

30

Gravely 00697700

Shaft, PTO Drive Assembly

$776.99

$

Usually ships in 4-12 days

0

31

Gravely 05958500

Bolt, Hex .38-16 x 1.175 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

32

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06545500

Nut, Top-Lock Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06004000

Screw, Set .38-16 x .62

$2.99

$

Usually ships in 4-12 days

0

35

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

36

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 7

0

37

Gravely 05707300

Ring, External Retaining 1.00 x .078

$2.99

$

In Stock, only 2 left!

0

38

Gravely 00894700

Bellow, PTO Shaft

$62.99

$

Usually ships in 4-12 days

0

39

Gravely 06545500

Nut, Nylon Locking Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

41

Gravely 06224900

Bolt, Roundhead Squareneck .50-13 x 3.00 Grade 5

$5.99

$

In Stock, Qty 11

0

42

Gravely 06225000

Bolt, Roundhead Squareneck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 07333700

Sheave, Single 1" I.D. x 6.75 O.D.

$125.99

$

Usually ships in 4-12 days

0

44

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 10

0

45

Gravely 06212000

Bolt, Roundhead Squareneck .38-16 x 1.00 Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 05957900

Bolt, Hex .38-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

47

Gravely 00481000

Retainer, Grease

$9.99

$

In Stock, only 1 left!

0

48

Gravely 07000034

Bolt, Shoulder Hex .38-16 x .30

$3.99

$

In Stock, Qty 7

0

49

Gravely 06200006

Bolt, Roundhead Squareneck .50-13 x 1.50

$5.99

$

Usually ships in 4-12 days

0

50

Gravely 06224200

Bolt, .38-16 x 1.50
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

51

Gravely 06545500

Nut, Nylon Locking Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 01581700

Bushing-Spacer .502 x .997 x 2.03

$5.99

$

In Stock, Qty 20+

0
