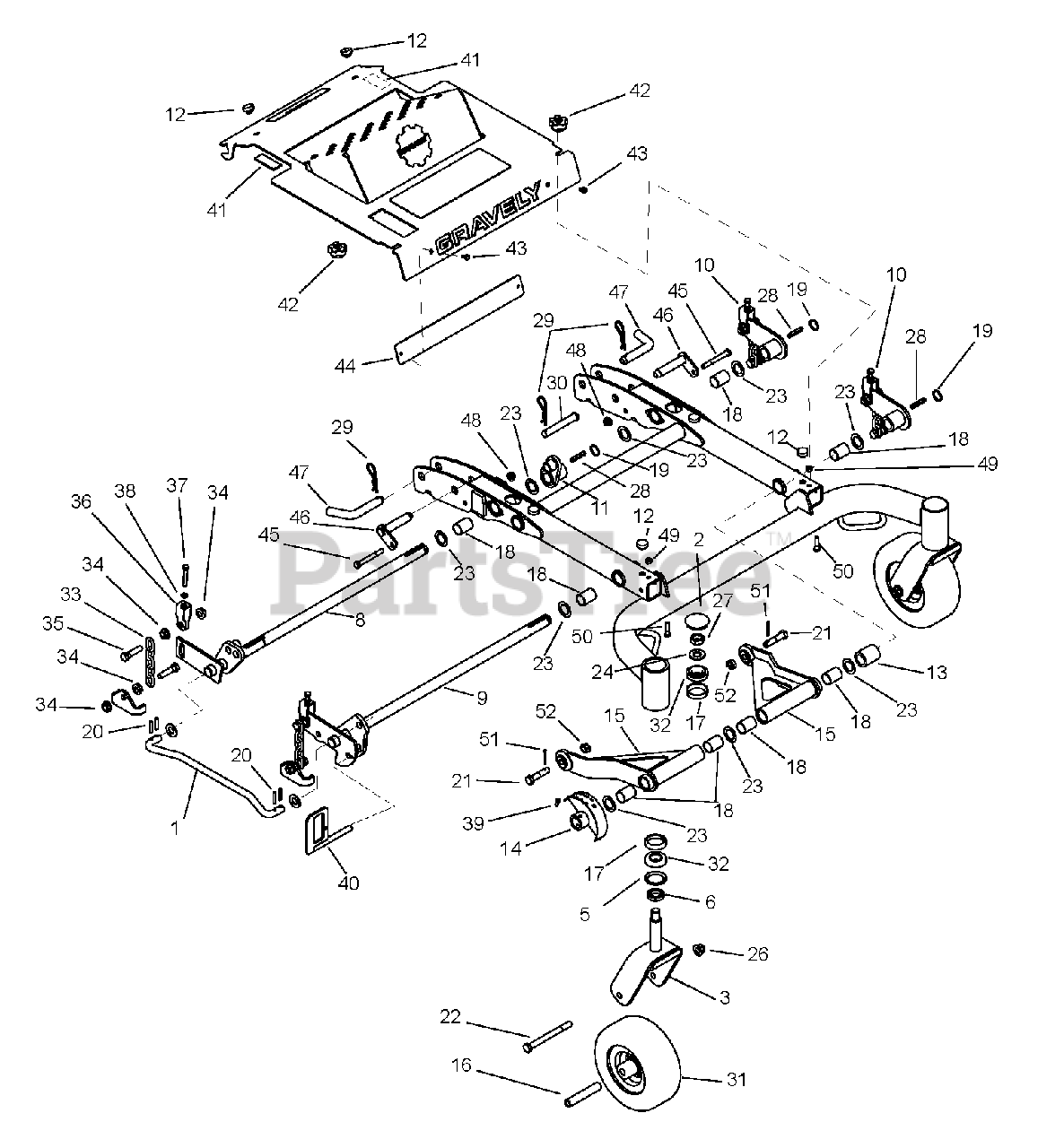

890110 - Gravely 60" X-Factor Zero-Turn Mower Deck (SN: 000101 - 019999) Carrier Frame Parts Diagram

60" X-Factor Zero-Turn Mower Deck

Carrier Frame Parts Diagram

  • Title

1

Gravely 04063000

Rod, Lift Assist 16.35

$41.99

$

Usually ships in 4-12 days

0

2

Gravely 00456800

Cap, Dust

$12.99

$

In Stock, Qty 10

0

3

Gravely 00499653

Weldment, Caster Fork (Outfront)

Note: (Outfront)

$111.99

$

Usually ships in 4-12 days

0

4

Gravely 04220753

Weldment, Carrier Frame (Outfront)

Note: (Outfront)

$

$

Not available

5

Gravely 00531400

Bearing, Seal 1.5 x 2 x .18

$10.99

$

In Stock, Qty 19

0

6

Gravely 00531500

Spacer, 1.005 x 1.5075 x .375

$7.49

$

In Stock, Qty 9

0

7

Gravely 04279653

Weldment, Carrier Foot Plate

$195.99

$

Usually ships in 4-12 days

0

8

Gravely 00594800

Weldment, Shaft, Deck Lift

$294.99

$

Usually ships in 4-12 days

0

9

Gravely 00594900

Weldment, Shaft, Deck Lift

$294.99

$

Usually ships in 4-12 days

0

10

Gravely 00608400

Weldment, Lift Arm

$129.99

$

Usually ships in 4-12 days

0

11

Gravely 00608500

Weldment, Mower Lift To Cylinder Arm

$129.99

$

Usually ships in 4-12 days

0

12

Gravely 00672800

Bumper, Rubber Snap In

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 00677100

Spacer, 1.0ID x 1.5OD x 1.81 Lining

$37.99

$

Usually ships in 4-12 days

0

14

Gravely 00697253

Cut Indicator Red

$

$

Not available

15

Gravely 00698951

Weldment, Mower Mounting Arm

$297.99

$

Usually ships in 4-12 days

0

16

Gravely 05400008

Bearing, .532 x .750 x 4.06

$39.99

$

Usually ships in 4-12 days

0

17

Gravely 05407000

Bearing, Cup 1.980 x .420

$17.99

$

In Stock, Qty 13

0

18

Gravely 05500034

Bushing, 1.00 ID x 1.125 OD x 1.50 LG

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 05707300

Ring, Retaining-External 1.00 x .078

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 05800001

Pin, Roll .250 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05959700

Bolt, Hex .50-13 x 2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 05964100

Bolt, Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 06435300

Washer, Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 4 left!

0

24

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135 YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 19

0

25

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 06536900

Nut, Jam Center-Lock .75-16

$5.99

$

In Stock, Qty 8

0

28

Gravely 06601800

Key, Straight .25 x 1.75 x .25

$3.99

$

In Stock, only 2 left!

0

29

Gravely 06714000

Pin, Hair-Internal .15 x 2.937

$2.99

$

In Stock, Qty 9

0

30

Gravely 06800006

Pin, Clevis .625 x 4.0

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 07100040

Wheel Assembly 9.00 x 3.50

$219.99

$

Usually ships in 4-12 days

0

32

Gravely 69000300

Bearing, Cone with Grease
(Superseded to 05406900)

$18.99

$

In Stock, Qty 9

0

33

Gravely 09284700

Chain, Link

$6.49

$

In Stock, only 1 left!

0

34

Gravely 06500003

Nut, Spinlock Flange M12-1.75

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 05900022

Bolt, Hex M12-1.75 x .50 Class 8.8

$3.99

$

In Stock, only 1 left!

0

36

Gravely 00442800

Bracket, Deck Leveling

$9.49

$

In Stock, only 2 left!

0

37

Gravely 05980900

Bolt, Hex .312-18 x 2.00 FTH
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

38

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, only 4 left!

0

39

Gravely 05900127

Screw, Set .25-20 x .50 YZ EP 80

$3.99

$

In Stock, only 2 left!

0

40

Gravely 00698000

Pin, Deck Tilt (shipped loose in literature package)

Note: (shipped loose in literature package)

$48.99

$

Usually ships in 4-12 days

0

41

Gravely 00928300

Tape, Foam .12 x 1.0 x 2.50

$

$

Not available

42

Gravely 07534800

Knob, Clamping .312-18

$7.99

$

In Stock, Qty 13

0

43

Gravely 07400034

Screw, Tapping Hex Washer HD .25-20-.50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 03995751

Plate, Bumper

$15.99

$

Usually ships in 4-12 days

0

45

Gravely 05961100

Bolt, Hex .38-16 x 3.25
(Superseded to 05901817)

$3.99

$

In Stock, only 2 left!

0

46

Gravely 04306800

Weldment, Carrier Frame Mounting Pin

$51.99

$

Usually ships in 4-12 days

0

47

Gravely 04260400

Pin, Bent .75 Dia.

$41.99

$

Usually ships in 4-12 days

0

48

Gravely 06545500

Nut, Nyloc Flange .318-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 05947500

Bolt, Hex .31-18 x 1.25
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

51

Gravely 06712600

Pin, Cotter
(Superseded to 06700212)

$0.99

$

In Stock, Qty 8

0

52

Gravely 06500707

Nut, .50-13

$

$

Not available
