890110 - Gravely 60" X-Factor Zero-Turn Mower Deck (SN: 020000 & Above) Mower Deck Belts, Blades, Idlers Parts Diagram

60" X-Factor Zero-Turn Mower Deck

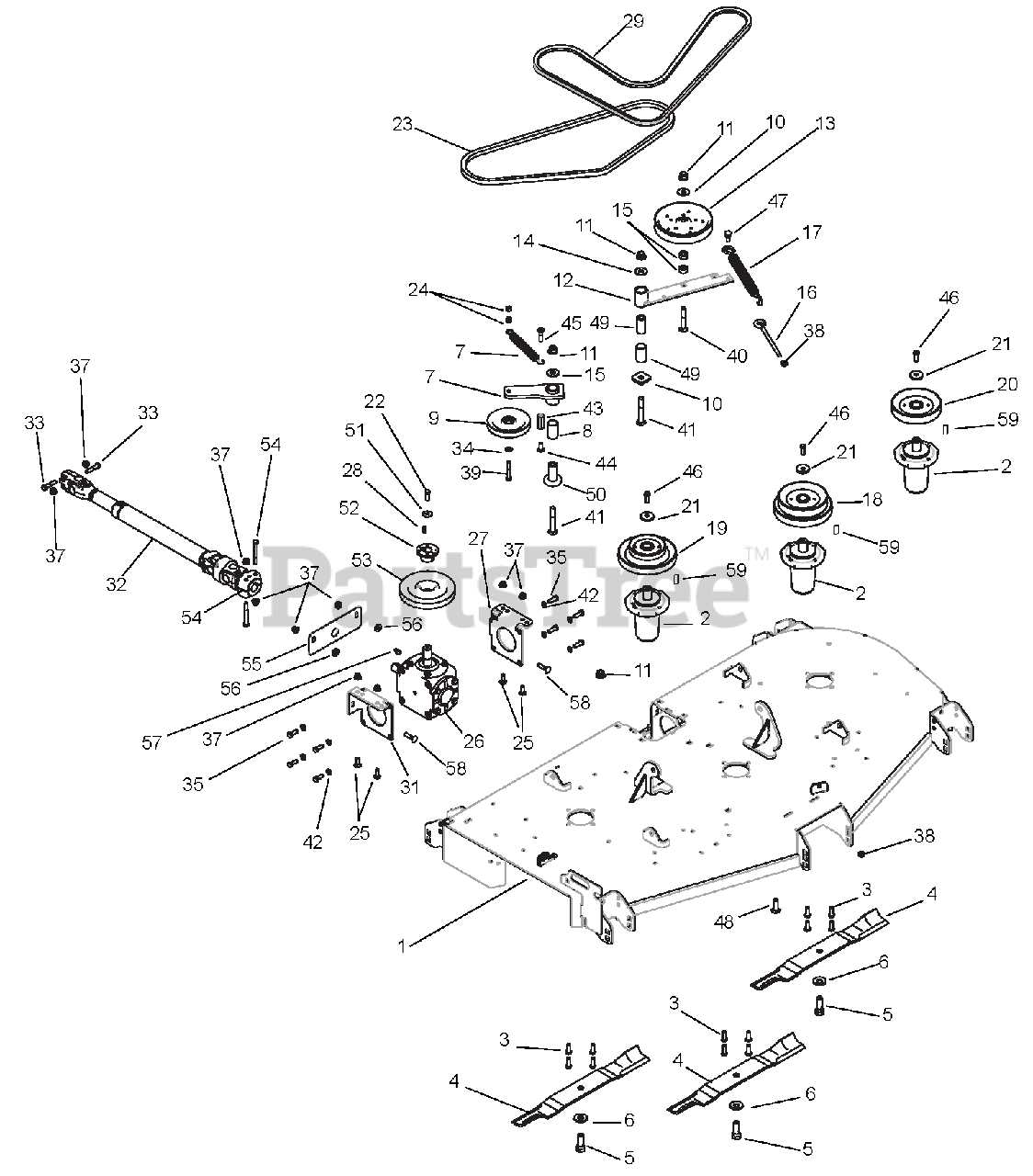

Mower Deck Belts, Blades, Idlers Parts Diagram

  • Title

1

Gravely 04546700

WMT,60" SIDE DISCH,OUTFRNT,7GA

Note: (OFM)

$

$

Not available

2

Gravely 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 09081200

BLADE, MOWER (20.50")

Note: (20.50")

$29.99

$

In Stock, Qty 20+

0

Gravely 08866900

BLADE, MULCHING (20.50")

$37.99

$

In Stock, Qty 6

0

5

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

7

Gravely 00952700

WMT,IDLER PIVOT ARM 3/8 THICK

$

$

Not available

Gravely 00459400

ASM, IDLER PIVOT ARM

Note: (includes items 7 and 8)

$85.99

$

Usually ships in 4-12 days

0

8

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

9

Gravely 07300526

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

10

Gravely 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 03774251

WMT, IDLER ARM

$70.99

$

In Stock, Qty 7

0

Gravely 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (includes items 12 and 8)

$81.99

$

In Stock, only 4 left!

0

13

Gravely 07316700

IDLER-FLAT-PLY 6.75X.510

$65.99

$

In Stock, only 3 left!

0

14

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 20+

0

16

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$7.49

$

In Stock, Qty 20+

0

17

Gravely 08300505

SPRING, EXTENSION

$27.99

$

In Stock, Qty 20+

0

18

Gravely 07335567

PULLEY, DBL-1"IDX6.75"&5.75"OD

$118.99

$

Usually ships in 4-12 days

0

19

Gravely 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

$87.99

$

In Stock, Qty 19

0

20

Gravely 07329367

PULLEY, V-1" ID X 5.75" OD
(Superseded to 07329300)

$72.99

$

In Stock, Qty 17

0

21

Gravely 04530500

RETAINER, SHEAVE

$9.49

$

In Stock, Qty 20+

0

22

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 07200038

V-BELT, B-COGGED

$68.99

$

In Stock, Qty 20+

0

24

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 04263800

GEARBOX,RIGHT ANGLE,1.50:1

$930.99

$

Usually ships in 4-12 days

0

27

Gravely 04269851

BRACKET,GEARBOX MTG,LH - BLK

$

$

Not available

28

Gravely 06605500

KEY-STR .25X.75X.25

$2.99

$

In Stock, only 1 left!

0

29

Gravely 07200504

V-BELT, HB WRAPPED

$70.99

$

In Stock, Qty 8

0

30

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 04269951

BRACKET,GEARBOX MTG,RH - BLK

$

$

Not available

32

Gravely 04297300

SHAFT,CV JOINT,RAPID XZ

$755.99

$

Usually ships in 4-12 days

0

33

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

37

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

40

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5YZ

$6.49

$

In Stock, Qty 18

0

41

Gravely 06200003

BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$6.49

$

In Stock, Qty 10

0

42

Gravely 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

43

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

44

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

46

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 17

0

48

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, Qty 6

0

49

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

50

Gravely 07000003

SCR-LAG .38 X 3.50 HEX ZINC

$4.99

$

Usually ships in 4-12 days

0

51

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

52

Gravely 07335900

BUSHING,TAPER, 1" SHAFT

$60.99

$

Usually ships in 4-12 days

0

53

Gravely 07335800

SHEAVE,TAPER BSHG, 6.45"OD

$

$

Not available

54

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

55

Gravely 00959651

COVER - GEARBOX BEARING

$28.99

$

Usually ships in 4-12 days

0

56

Gravely 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

57

Gravely 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

58

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

59

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0
