891002 - Ariens 2-Bag Bagger CZ-HD (SN: 000101 & Above)

2-Bag Bagger CZ-HD

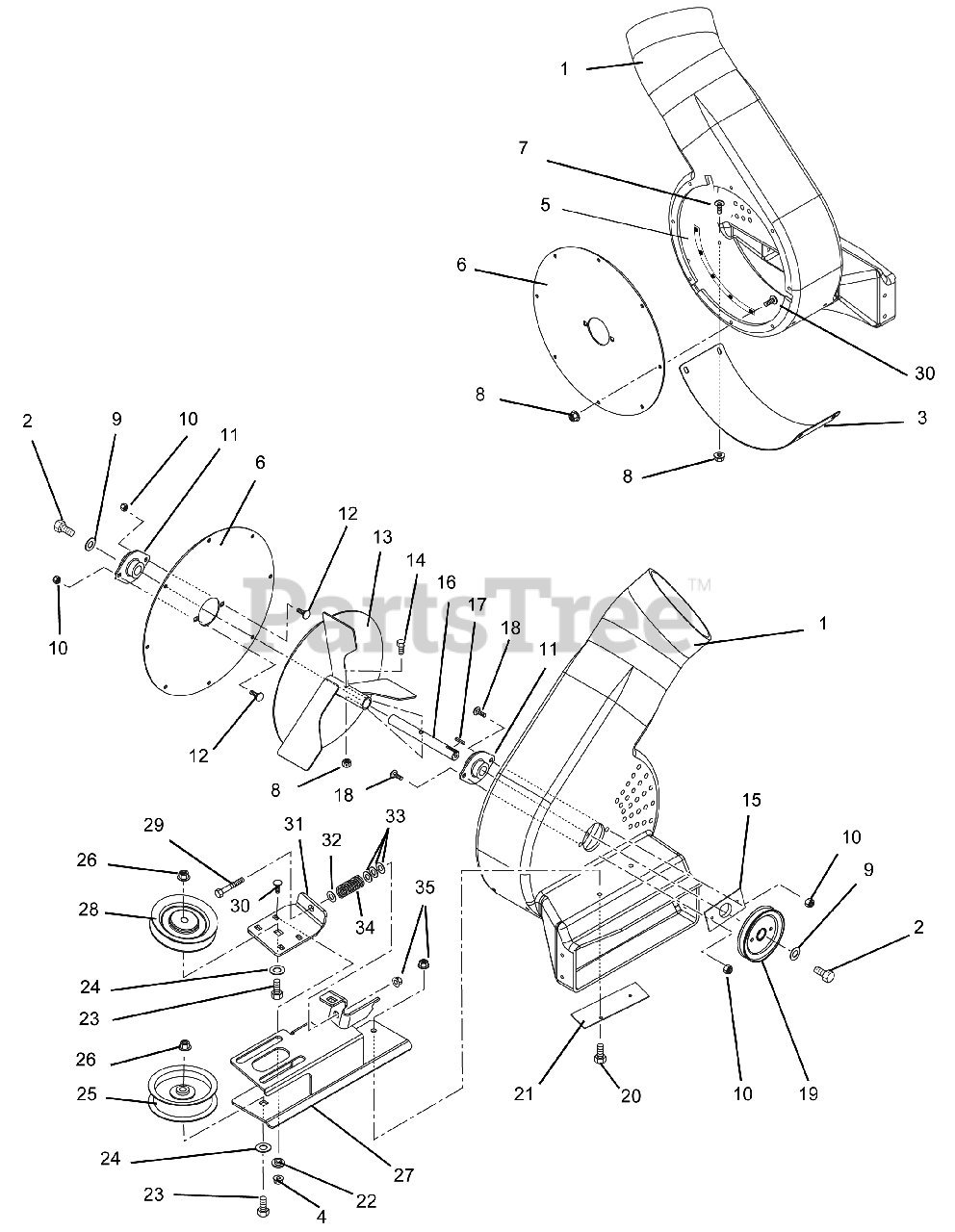

891002 - Ariens 2-Bag Bagger CZ-HD (SN: 000101 & Above) > Parts Diagrams (6) > Blower Assembly

  • Title
51514700

1

BLOWER (SERVICE ASSEMBLY)

Part# 51514700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $604.77

05900008

2

BLT-HEX .25-20X.50 GR5 EPOXY

Part# 05900008

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00169951

3

PLATE, SKID

Part# 00169951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.72

06543500

4

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03720951

5

MTG BOLT REINFORCING PLT - BLK

Part# 03720951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

00168051

6

PLATE, BEARING MOUNT

Part# 00168051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $68.14

06114400

7

SCR-MCH .25-20X.75 TXTR YWZC

Part# 06114400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06500012

8

@NUT-LK-NYL-FLG .25-20 YWZC

Part# 06500012

OEM Warranty Repair Part for Ariens

Not available

06446300

9

WSHR-FL-STL .344X1.125X.135

Part# 06446300

OEM Warranty Repair Part for Ariens

Not available

06545400

10

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03685300

11

BEARING, 2 BOLT FLANGE -.75 ID

Part# 03685300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

06215700

12

@BLT-RDHDSQNK .31-18X.75 G5YZ

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00170000

13

WELDMENT, IMPELLER, 3 BLADE

Part# 00170000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $110.63

05971400

14

BLT-HEX .25-20X1.50 GR8 YWZC

Part# 05971400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03721051

15

BEARING WASHER PLATE - BLK

Part# 03721051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.47

00168700

16

SHAFT, IMPELLER

Part# 00168700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $72.61

06606000

17

KEY-SQ .187 X .50 X .187

Part# 06606000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06216100

18

@BLT-RDHDSQNK .31-18X1.00 G5YZ

Part# 06216100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00169400

19

SHEAVE, BLOWER - 4.25 DIA.

Part# 00169400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

05947800

20

BOLT-HEX.31-18X.875 YWZC GR5

Part# 05947800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00174451

21

PLATE,BACK

Part# 00174451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.60

05513400

22

BSHG-FLG .265X.437X.250X.750

Part# 05513400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05958500

23

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06436200

24

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07300028

25

IDLER, FLG .38ID X 3.50

Part# 07300028

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.72

06542000

26

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00168200

27

WELDMENT, IDLER MOUNT

Part# 00168200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $119.24

07327600

28

V-IDLER, 4.00X.38

Part# 07327600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

05963200

29

@BLT-HEX .31-18X4.00 GR5 YWZC

Part# 05963200

OEM Warranty Repair Part for Ariens

Not available

06219900

30

@BLT-RDHDSQNK .25-20X.75 G5YZ

Part# 06219900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00168100

31

BRACKET, ADJUSTABLE IDLER

Part# 00168100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.13

06514900

32

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06444000

33

WSHR-FL-STL .406X1.00X.188 YWZ

Part# 06444000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

08312100

34

SG-COMP .092X.77X3.13 WLD 36

Part# 08312100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06543100

35

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

51514700

36

BLOWER (SERVICE ASSEMBLY)

Part# 51514700

Note: (includes items 1-35)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $604.77
