891002 - Ariens 2-Bag Bagger CZ-HD (SN: 000101 & Above)

2-Bag Bagger CZ-HD

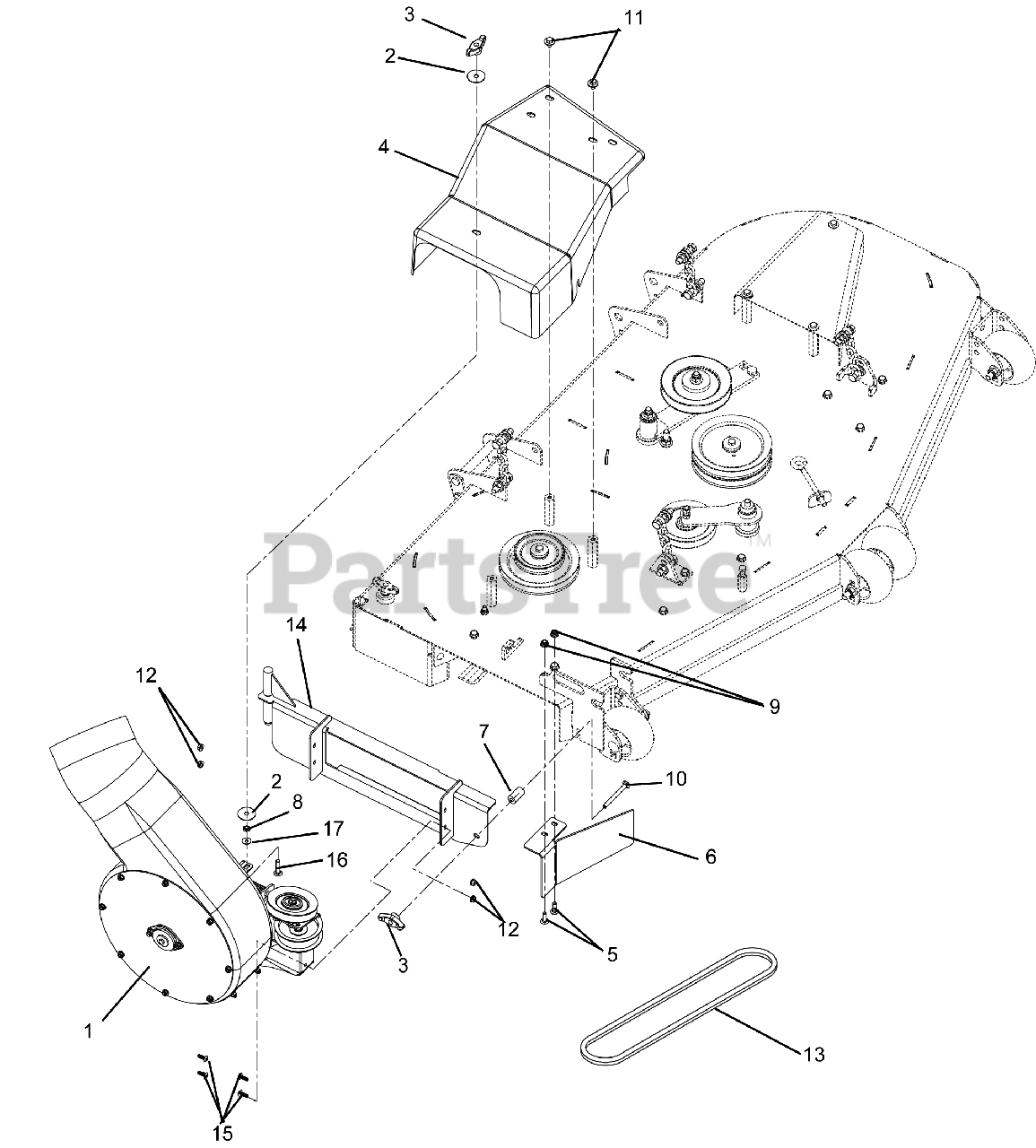

891002 - Ariens 2-Bag Bagger CZ-HD (SN: 000101 & Above) > Parts Diagrams (6) > Blower Assembly to Deck

  • Title
51514700

1

BLOWER (SERVICE ASSEMBLY)

Part# 51514700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $604.77

06439300

2

WSHR-FL-STL .380X1.50X.062 YWZ

Part# 06439300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07531700

3

KNOB - WING .312-18 UNC

Part# 07531700 (Superseded to 07534800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

03395000

4

GUARD, 52"-60"HD BAGGER BELT

Part# 03395000

Note: (991037, 038, 039, 040, 041)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

03398000

4

GUARD,44"-48"CZ-HD BAGGER BELT

Part# 03398000

Note: (991035, 036, 050, 051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $92.51

06200007

5

@BLT-RHDSSQNK .31-18X1.00 G5YZ

Part# 06200007

Note: (991038, 040, 041)

OEM Warranty Repair Part for Ariens

Not available

03394651

6

60"HD BAGGER BAFFLE - BLACK

Part# 03394651

Note: (991038, 040, 041)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

03394700

7

SPACER, CZ-HD BAGGER

Part# 03394700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

06536100

8

NUT- JAM .312-18 YWZC

Part# 06536100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06545400

9

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

Note: (991038, 040, 041)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06223600

10

@BLT-RDHDSQNK .38-16X1.00 G5YZ

Part# 06223600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07500008

11

KNOB,WING STUD 5/16-18 X .75

Part# 07500008

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

06543500

12

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07211600

13

V-BELT, 4L-RAW EDGE

Part# 07211600

Note: (991038, 040, 041)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $31.25

07211500

13

V-BELT, 4L-WRAPPED

Part# 07211500

Note: (991037, 039)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.72

07242600

13

V-BELT, HA-WRAPPED

Part# 07242600

Note: (991035, 036, 050, 051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

03394151

14

60"HD BAG PUMP MTG BRKT WMT-BL

Part# 03394151

Note: (991038, 040, 041)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

03394351

14

52"HD BAG PUMP MTG BRKT WMT-BL

Part# 03394351

Note: (991037, 039)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

03394451

14

48"CZ BAG PUMP MTG BRKT WMT-BL

Part# 03394451

Note: (991036, 051)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

03394551

14

44"CZ BAG PUMP MTG BRKT WMT-BL

Part# 03394551

Note: (991035, 050)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

06114400

15

SCR-MCH .25-20X.75 TXTR YWZC

Part# 06114400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06212100

16

@BLT-RDHDSQNK .31-18X1.50 G5YZ

Part# 06212100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06435800

17

@WSHR-FL-STL.312X.734X.065 YWZ

Part# 06435800

OEM Warranty Repair Part for Ariens

Not available
