891002 - Ariens 2-Bag Bagger CZ-HD (SN: 000101 & Above)

2-Bag Bagger CZ-HD

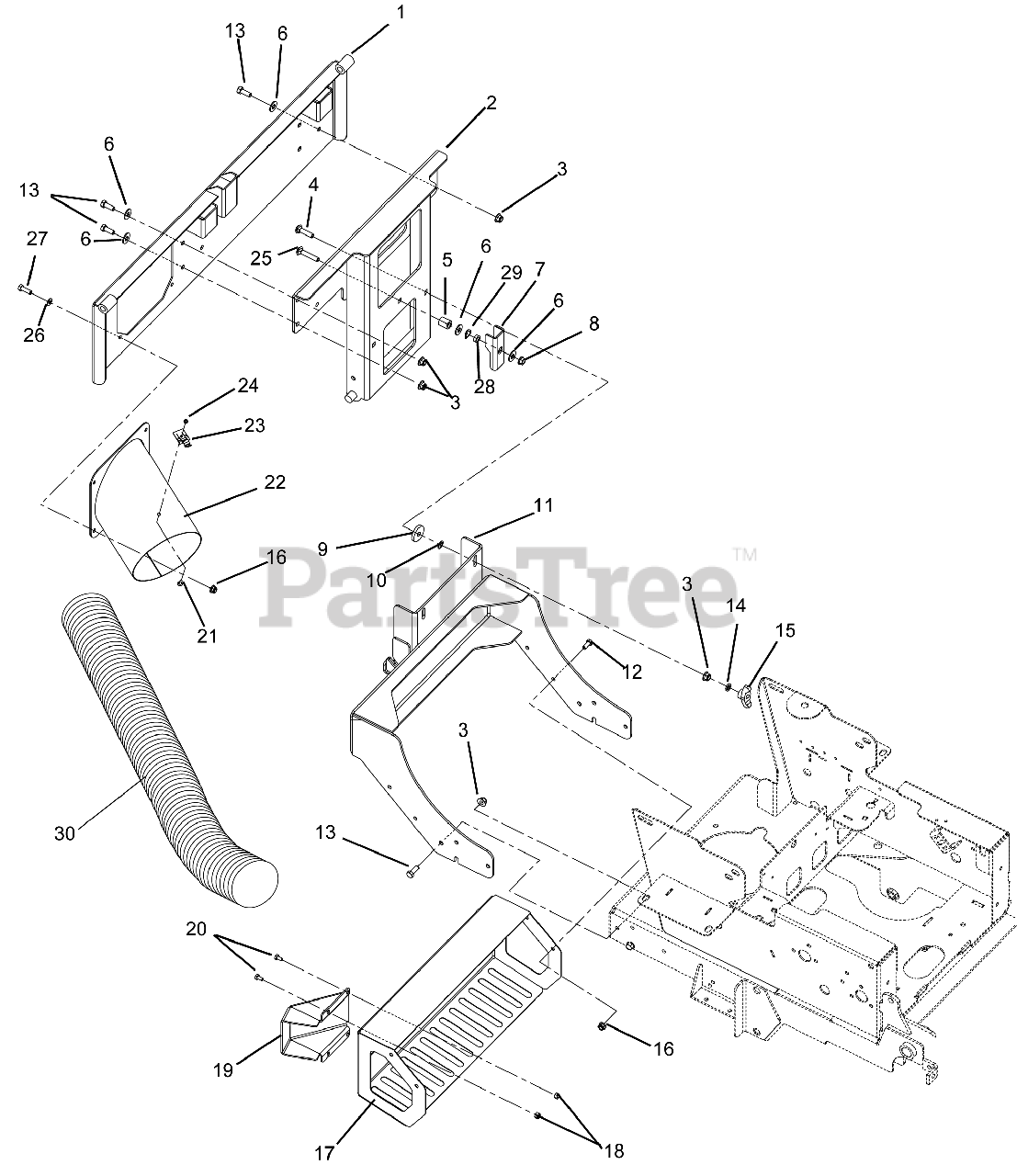

891002 - Ariens 2-Bag Bagger CZ-HD (SN: 000101 & Above) > Parts Diagrams (6) > Mounting Assembly

  • Title
03721300

1

RCPTCL,HUMBOLDT 2-BAG W/O GRAV

Part# 03721300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1106.85

01065451

2

WMT-UPPER MOUNT - 2 BAG

Part# 01065451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $135.22

06545500

3

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06223800

4

@BLT-RDHDSQNK .38-16X1.75 G5YZ

Part# 06223800

OEM Warranty Repair Part for Ariens

Not available

00186400

5

BSHG,SPCR .41 X .75 X .88 PM

Part# 00186400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06435900

6

@WSHR-FL-STL.438X1.00X.083 YWZ

Part# 06435900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00610751

7

LATCH - BAGGER UPPER MOUNT

Part# 00610751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

06542000

8

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400006

9

WSHR,FLT STL.406X1.50X.245YWZC

Part# 06400006

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07009900

10

NUT-PUSH .38 DIA. PAL ZINC

Part# 07009900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01065551

11

WMT - LOWER MOUNT - 2 BAG

Part# 01065551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

05947000

12

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05948700

13

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06306500

14

WSHR-LK .375X.115 HVY YWZC

Part# 06306500

OEM Warranty Repair Part for Ariens

Not available

07019300

15

NUT-WING .38-16

Part# 07019300 (Superseded to 07500109)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06545400

16

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01065651

17

SHIELD - HEAT

Part# 01065651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $89.38

06529700

18

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

00610551

19

DEFLECTOR - EXHAUST - MZ

Part# 00610551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

05947900

20

@BLT-HEX .25-20X.50 GR5 YWZC

Part# 05947900

OEM Warranty Repair Part for Ariens

Not available

06116700

21

@SCR-MCH 10-24X.50 HWH YWZC

Part# 06116700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00461151

22

INLET ADAPTER 100 SERIES

Part# 00461151

OEM Warranty Repair Part for Ariens

Not available

07000026

23

THUMB LATCH

Part# 07000026

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06536000

24

@NUT-LK-NYL 10-24 W/INSRT YWZC

Part# 06536000

OEM Warranty Repair Part for Ariens

Not available

06224300

25

@BLT-RDHDSQNK .38-16X2.00 G5YZ

Part# 06224300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06437200

26

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05946900

27

@BLT-HEX .31-18X1.00 GR5 YWZC

Part# 05946900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05508900

28

BSHG-SLV .377X.624X.235

Part# 05508900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03704900

29

WAVE WASHER .640X.875X.125FH

Part# 03704900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00486100

30

HOSE,7X63 GOODYEAR 586-429-171

Part# 00486100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $231.18
