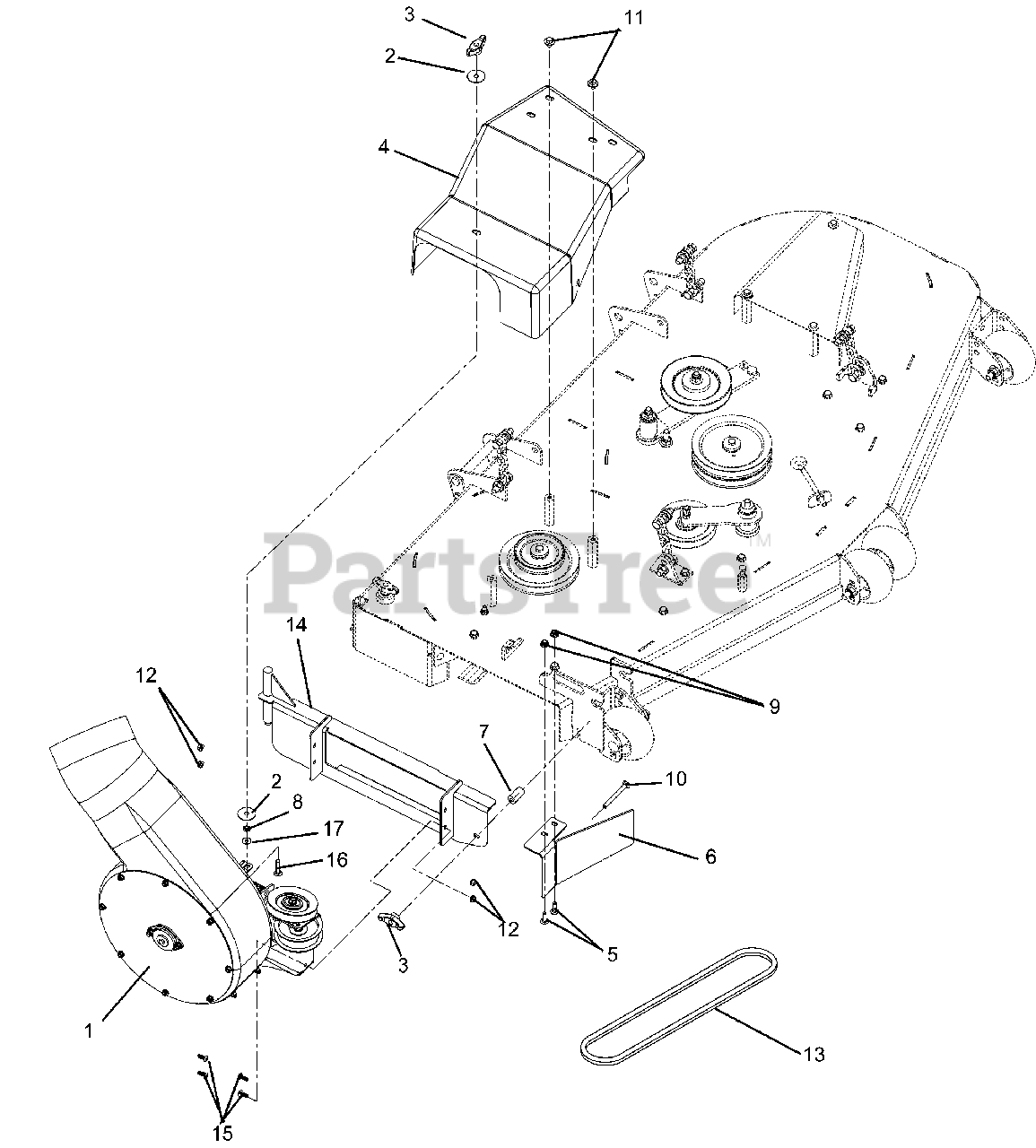

891002 - Gravely CZ-HD 2-Bag Bagger (SN: 000101 & Above) Blower Assembly to Deck Parts Diagram

CZ-HD 2-Bag Bagger

Blower Assembly to Deck Parts Diagram

  • Title

1

Gravely 51514700

Housing, Blower

$870.99

$

Usually ships in 4-12 days

0

2

Gravely 06439300

Washer-Flat-Steel .38 x 1.50 x .062
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 07531700

Knob- Wing .312-18
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 03395000

Belt Cover (991037, 038, 039, 040, 041)

Note: (991037, 038, 039, 040, 041)

$189.99

$

Usually ships in 4-12 days

0

Gravely 03398000

Belt Cover (991035, 036, 050, 051)

Note: (991035, 036, 050, 051)

$101.99

$

Usually ships in 4-12 days

0

5

Gravely 06200007

Bolt, Round Head Square Neck .31-18 x 1 Grade 5 (991038, 040, 041)
(Superseded to 06200237)

Note: (991038, 040, 041)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 03394651

Baffle, 60"HD Bagger (991038, 040, 041)

Note: (991038, 040, 041)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 03394700

Spacer, CZ-Head Bagger

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06545400

Nut, .31-18 Nyloc Flange (991038, 040, 041)
(Superseded to 06500809)

Note: (991038, 040, 041)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

11

Gravely 07500008

Knob, Wing Stud 5/16-18 x .75

$6.99

$

In Stock, Qty 20+

0

12

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07211600

Belt, 4L 70.81 Raw (991038, 040, 041)

Note: (991038, 040, 041)

$56.99

$

Usually ships in 4-12 days

0

Gravely 07211500

Belt, 4L 67.47 Wrapped (991037, 039)

Note: (991037, 039)

$51.99

$

In Stock, Qty 20+

0

Gravely 07242600

Belt, HA 65.50 Wrapped (991035, 036, 050, 051)

Note: (991035, 036, 050, 051)

$46.99

$

In Stock, only 2 left!

0

14

Gravely 03394151

60" HD Bag Pump Mounting Bracket Weldment (991038, 040, 041)

Note: (991038, 040, 041)

$115.99

$

Usually ships in 4-12 days

0

Gravely 03394351

52" HD Bag Pump Mounting Bracket Weldment (991037, 039)

Note: (991037, 039)

$104.99

$

Usually ships in 4-12 days

0

Gravely 03394451

48" CZ Bag Pump Mounting Bracket Weldment (991036, 051)

Note: (991036, 051)

$83.99

$

Usually ships in 4-12 days

0

Gravely 03394551

44" CZ Bag Pump Mounting Bracket Weldment (991035, 050)

Note: (991035, 050)

$111.99

$

Usually ships in 4-12 days

0

15

Gravely 06114400

Screw-Machine .25-20 x .75

$1.49

$

In Stock, only 2 left!

0

16

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

17

Gravely 06435800

Washer, Flat Steel .312 x .734 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0
