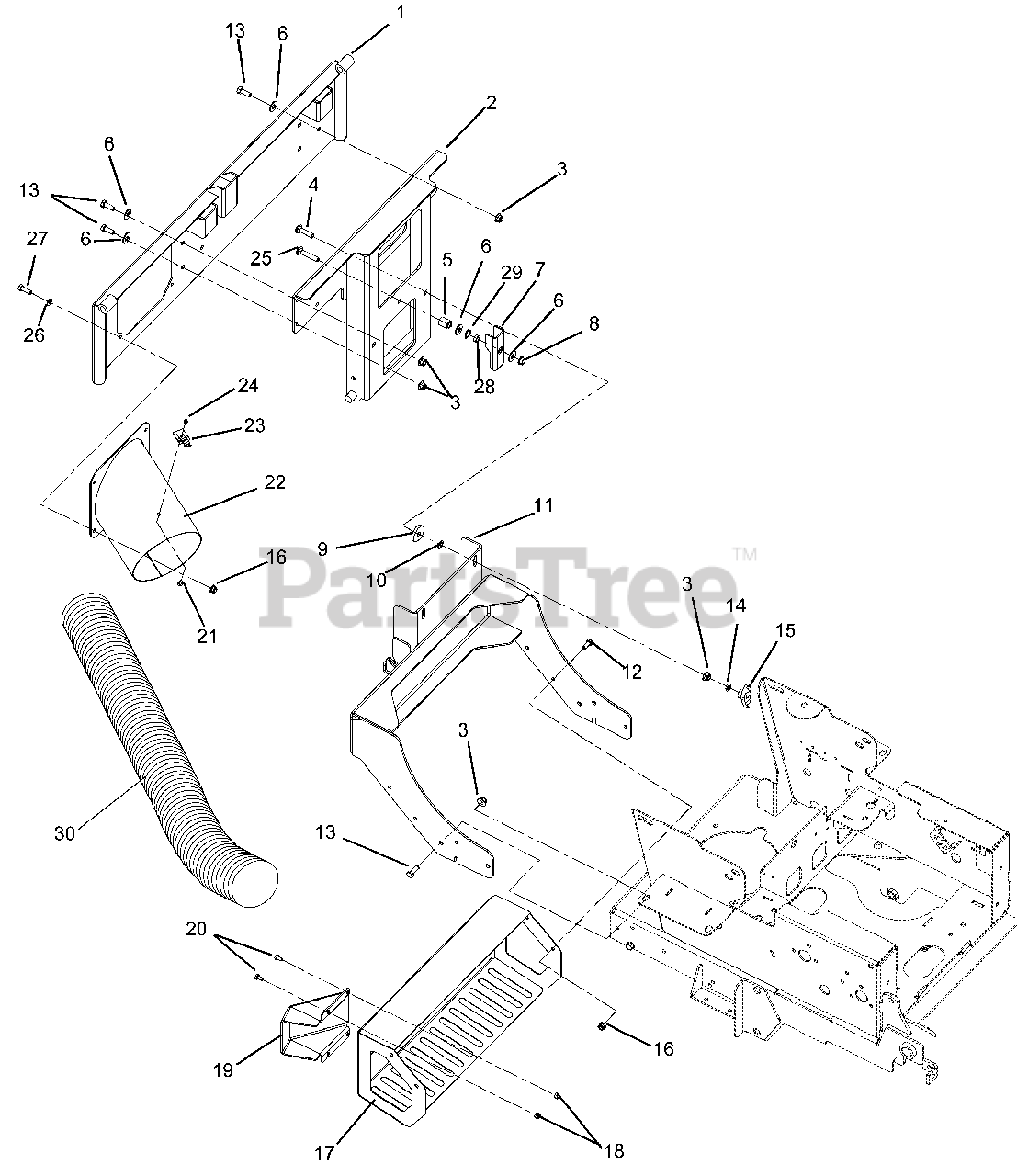

891002 - Gravely CZ-HD 2-Bag Bagger (SN: 000101 & Above) Mounting Assembly Parts Diagram

CZ-HD 2-Bag Bagger

Mounting Assembly Parts Diagram

  • Title

1

Gravely 03721300

Receptacle, Humboldt 2-Bag

$

$

Not available

2

Gravely 01065451

Weldment, Upper Mount - 2 Bag

$210.99

$

Usually ships in 4-12 days

0

3

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06223800

Bolt, Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 00186400

Bushing, Spacer .41 x .75 x .88

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 06435900

Washer, Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 00610751

Latch, Bagger Upper Mount

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 07009900

Nut, Push .38 Dia.

$2.49

$

In Stock, only 1 left!

0

11

Gravely 01065551

Weldment, Lower Mount - 2 Bag

$

$

Not available

12

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06306500

Washer, Locking .375 x .115
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

15

Gravely 07019300

Nut, Wing .38-16
(Superseded to 07500109)

$5.49

$

In Stock, only 2 left!

0

16

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 01065651

Shield, Heat

$

$

Not available

18

Gravely 06529700

Nut, Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00610551

Deflector, Exhaust- MZ

$44.99

$

Usually ships in 4-12 days

0

20

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

21

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 00461151

Inlet Adapter 100 Series

$

$

Not available

23

Gravely 07000026

Thumb Latch

$9.99

$

In Stock, only 2 left!

0

24

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, Qty 10

0

26

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

28

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.99

$

In Stock, only 2 left!

0

29

Gravely 03704900

Wave Washer .640 x .875 x .125

$2.49

$

In Stock, only 2 left!

0

30

Gravely 00486100

Hose, 7 x 63

$257.99

$

Usually ships in 4-12 days

0
