891003 - Gravely HD Three-Bag Bagger (SN: 000101 & Above)

HD Three-Bag Bagger

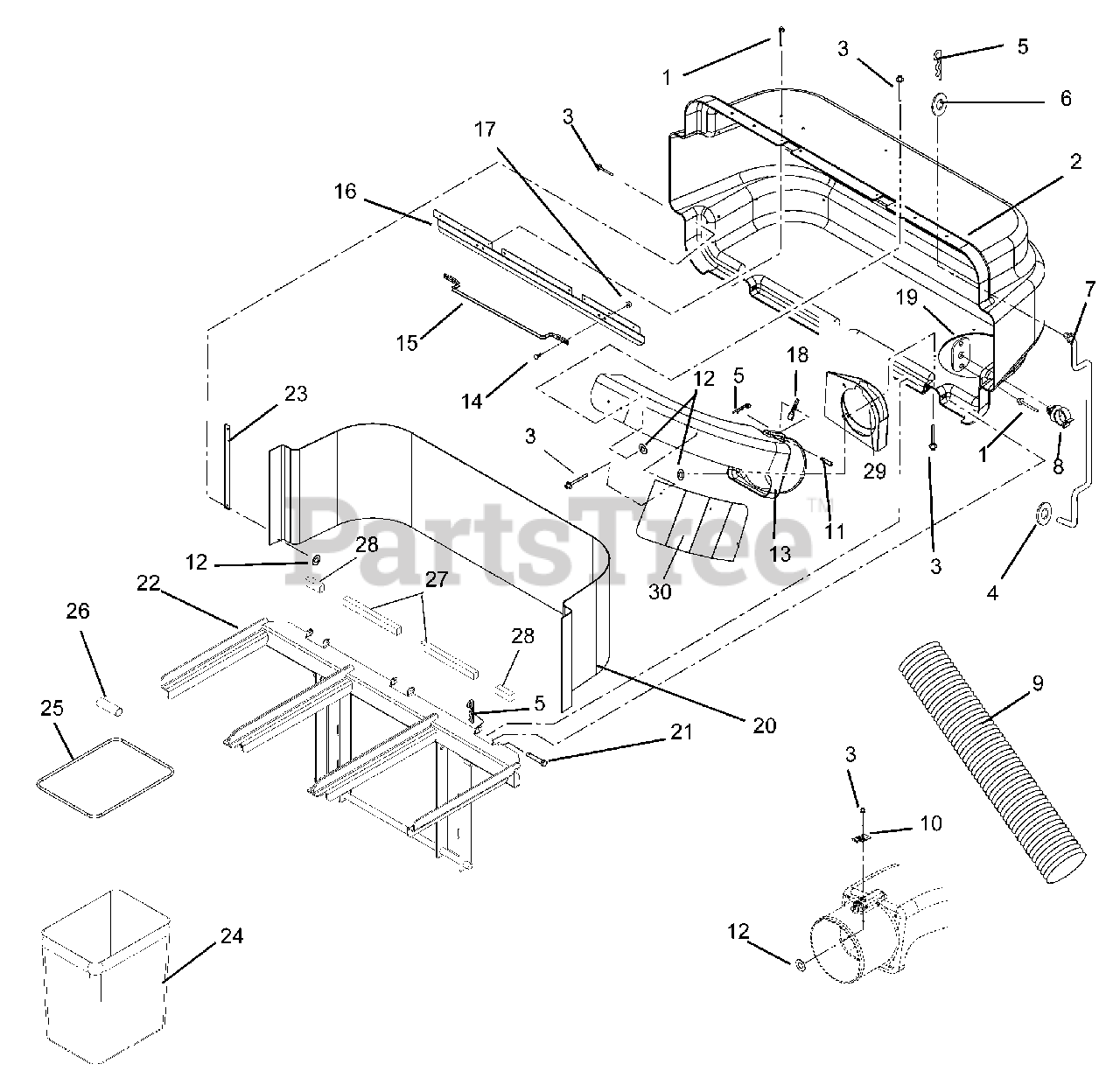

891003 - Gravely HD Three-Bag Bagger (SN: 000101 & Above) > Parts Diagrams (6) > Bagger Cover Assembly

  • Title
06802500

1

Rivet, Pop .187 x .402

Part# 06802500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

59103100

2

Cover, Bagger with Decal

Part# 59103100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

03803800

3

Rivet, Pop .187 x .527

Part# 03803800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

00548400

4

Retainer, .38 Push-On

Part# 00548400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06714800

5

Pin-Hair

Part# 06714800

OEM Warranty Repair Part for Gravely

Not available

06436200

6

Washer-Flat-Steel .046 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

00292600

7

Prop Rod, Bagger

Part# 00292600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

07534100

8

Clip .38

Part# 07534100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

00486100

9

Hose, 7 x 63 Kanaflex 165 Clear

Part# 00486100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $231.18

07000026

10

Thumb Latch

Part# 07000026

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06815300

11

Pin, Clevis .31 x 2.62 Grade 5

Part# 06815300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06442700

12

Washer-Flat-Steel .219 x .50 x .049

Part# 06442700

OEM Warranty Repair Part for Gravely

Not available

00165900

13

Boot, Upper

Part# 00165900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $113.87

06219900

14

Bolt, Round Head Square Neck .25-20 x .75 Grade 5

Part# 06219900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

00453000

15

Bagger Handle

Part# 00453000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

00450851

16

Latch, Cover

Part# 00450851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

06543500

17

Nut, Locking-Top-Flange .25-20

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

00168300

18

Indicator, Flow

Part# 00168300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

00294400

19

Plate, Rod Clip

Part# 00294400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

00166900

20

Screen, Bagger

Part# 00166900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

02747500

21

Pin, Clevis .368/.373 x 3.25

Part# 02747500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

03372951

22

Weldment, Bagger Frame

Part# 03372951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $439.05

00174851

23

Strap, Cover

Part# 00174851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

03370700

24

Bag, Mesh

Part# 03370700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $73.73

00663200

25

Frame, Bag

Part# 00663200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

00677000

26

Hose, .38 x .50 x 3.00 Vinyl

Part# 00677000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03752800

27

Grass Block, 10.5-In. Foam

Part# 03752800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $20.07

03752900

28

Grass Block, 4-In. Foam

Part# 03752900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

03765451

29

Hose Support Insert

Part# 03765451

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

03765851

30

HD Bagger Deflector

Part# 03765851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48
