891003 - Gravely HD Three-Bag Bagger (SN: 000101 & Above)

HD Three-Bag Bagger

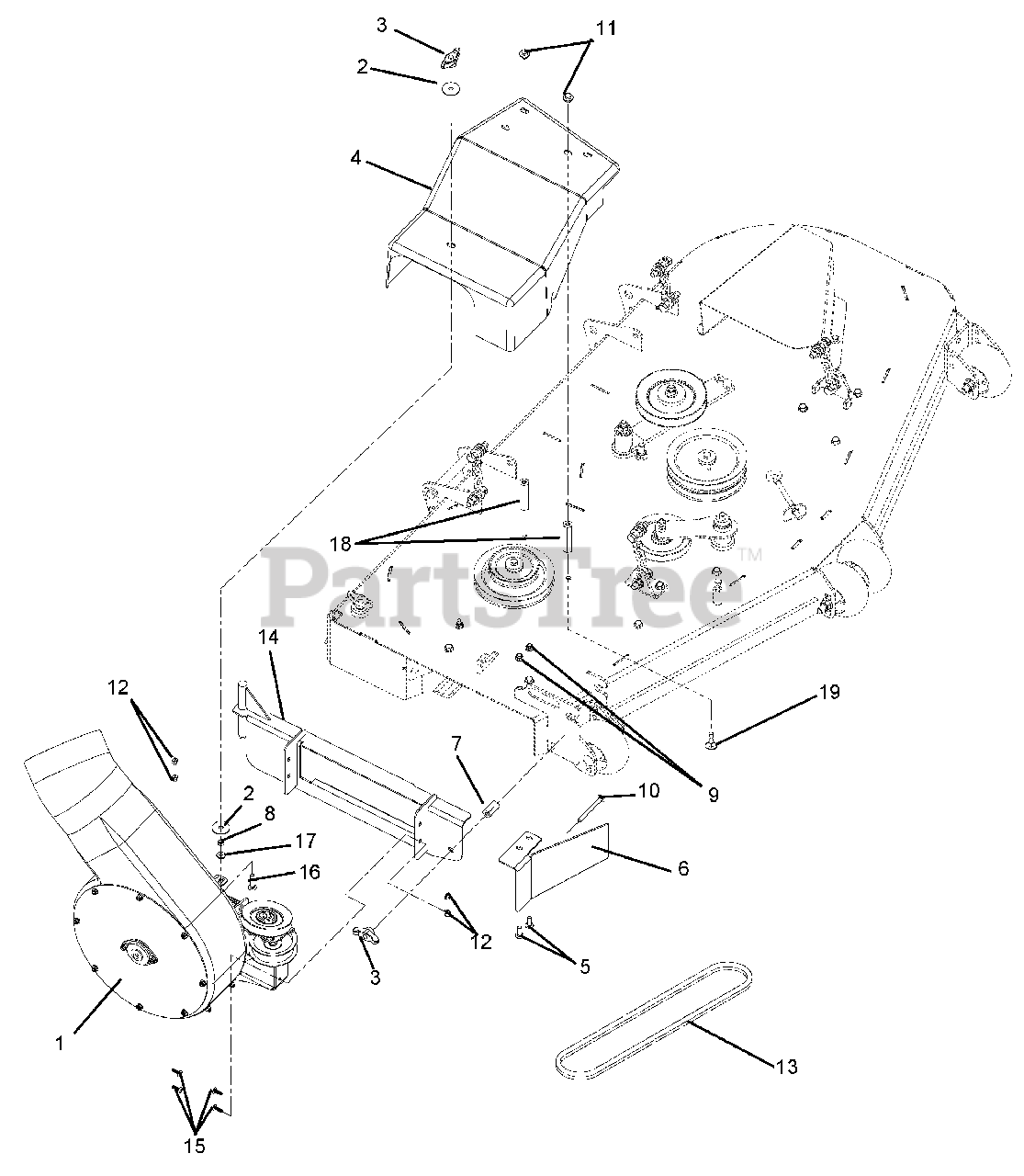

891003 - Gravely HD Three-Bag Bagger (SN: 000101 & Above) > Parts Diagrams (6) > Blower Assembly to Mower Deck

  • Title
00166000

1

Housing, Blower

Part# 00166000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $241.87

06439300

2

Washer, Flat-Steel .38 x 1.50 x .062

Part# 06439300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07534800

3

Knob, Clamping Nyloc .312-18

Part# 07534800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

03395000

4

Belt Cover (with 52" and 60" Adapter Kits)

Part# 03395000

Note: (with 52" and 60" Adapter Kits)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

03398000

Belt Cover (with 44" and 48" Adapter Kits)

Part# 03398000

Note: (with 44" and 48" Adapter Kits)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $92.51

06200007

5

Bolt, Round Head Square Neck .31-18 x 1 Grade 5 (with 60" Adapter Kit 79102500)

Part# 06200007

Note: (with 60" Adapter Kit 79102500)

OEM Warranty Repair Part for Gravely

Not available

03394651

6

Baffle, 60" HD Bagger (with 60" Adapter Kit 79102500)

Part# 03394651

Note: (with 60" Adapter Kit 79102500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

03394700

7

Spacer, CZ-Head Bagger

Part# 03394700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

06536100

8

Nut-Jam .312-18

Part# 06536100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06545400

9

Nut, .31-18 Nyloc Flange (with 60" Adapter Kit 79102500)

Part# 06545400

Note: (with 60" Adapter Kit 79102500)

OEM Warranty Repair Part for Gravely

Not available

06223600

10

Bolt, Round Head Square Neck .38-16 x 1.00

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07000018

11

Bolt, SEMS .31-18 x .62

Part# 07000018

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06543500

12

Nut, Locking-Top-Flange .25-20

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

07211600

13

Belt, 4L 70.81 Raw (for 60" Decks)

Part# 07211600

Note: (for 60" Decks)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $31.25

07211500

Belt, 4L 67.47 Wrapped (for 52" Decks)

Part# 07211500

Note: (for 52" Decks)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $35.72

07242600

Belt, HA 65.50 Wrapped (for 44" and 48" Decks)

Part# 07242600

Note: (for 44" and 48" Decks)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

03394151

14

60" HD Bag Pump Mounting Bracket Weldment (with 60" Adapter Kit 79102500)

Part# 03394151

Note: (with 60" Adapter Kit 79102500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

03394351

52" HD Bag Pump Mounting Bracket Weldment (with 52" Adapter Kit 79102600)

Part# 03394351

Note: (with 52" Adapter Kit 79102600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

03394451

48" CZ Bag Pump Mounting Bracket Weldment (with 48" Adapter Kit 79102700)

Part# 03394451

Note: (with 48" Adapter Kit 79102700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

03394551

44" CZ Bag Pump Mounting Bracket Weldment (with 44" Adapter Kit 79102800)

Part# 03394551

Note: (with 44" Adapter Kit 79102800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

06114400

15

Screw, Machine .25-20 x .75

Part# 06114400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06212100

16

Bolt, Round Head Square Neck .31-18 x 1.50

Part# 06212100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06435800

17

Washer, Flat Steel .312 x .734 x .065

Part# 06435800

OEM Warranty Repair Part for Gravely

Not available

07000027

18

Nut, Coupling .31-18 x 3.00

Part# 07000027

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

06200002

19

Bolt, Round Head Square Neck .31-18 x .75 with Epoxy Patch

Part# 06200002

OEM Warranty Repair Part for Gravely

Not available
