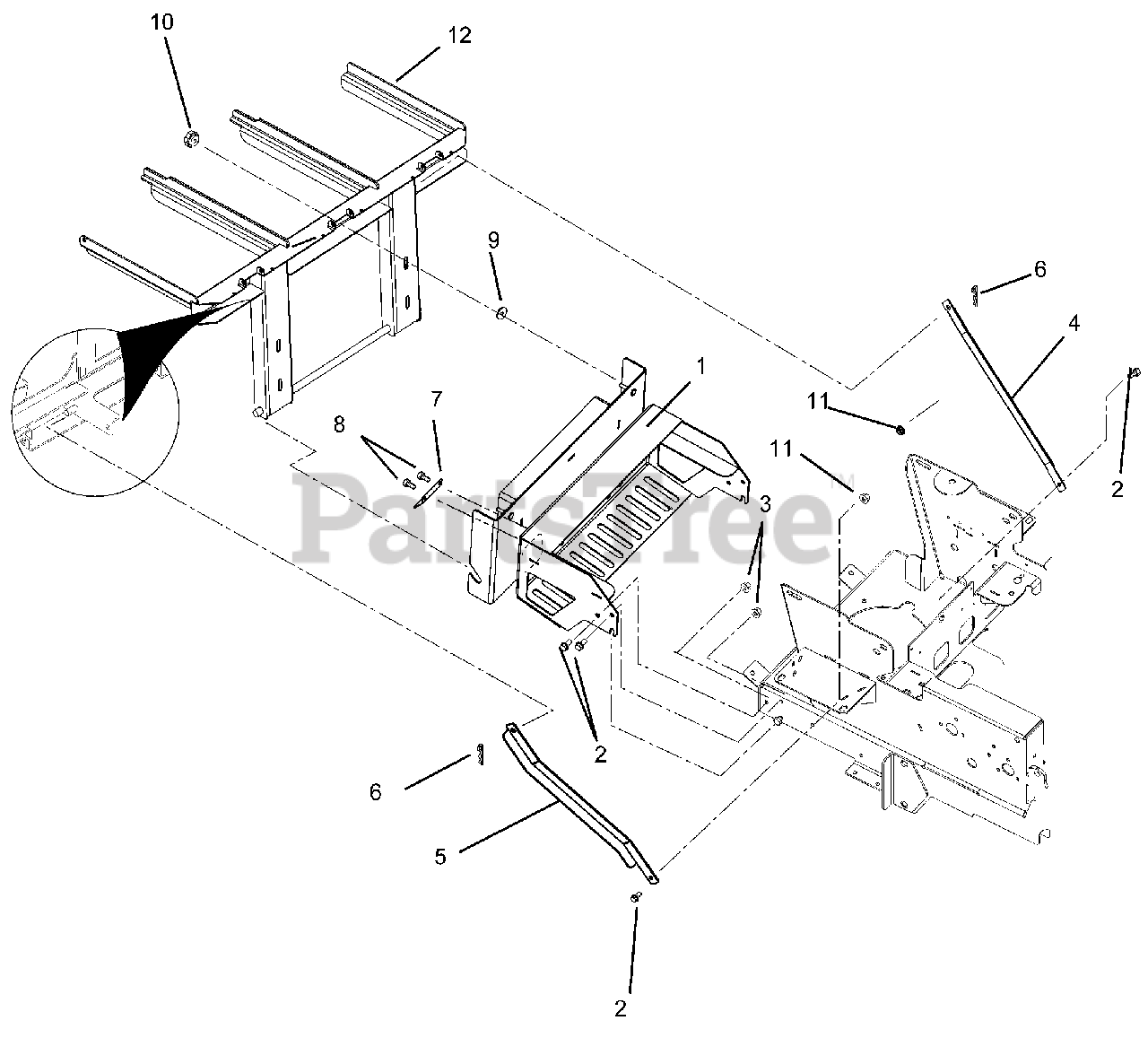

891003 - Gravely HD Three-Bag Bagger (SN: 000101 & Above) Mounting Assembly Parts Diagram

HD Three-Bag Bagger

Mounting Assembly Parts Diagram

  • Title

1

Gravely 03735551

Weldment, Bagger Head Mount

$574.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03735651

Weldment, Left Bagger Support

$70.99

$

Usually ships in 4-12 days

0

5

Gravely 03735751

Weldment, Right Bagger Support

$101.99

$

Usually ships in 4-12 days

0

6

Gravely 06714800

Pin, Hair #25
(Superseded to 06700223)

$0.99

$

In Stock, Qty 9

0

7

Gravely 03735851

Shield, Heat Deflection

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 07412900

Screw, Tapping .38-16 x 0.50
(Superseded to 07400126)

$1.99

$

In Stock, Qty 12

0

9

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .105
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 07534800

Knob, Clamping .312-18 Nyloc

$3.99

$

In Stock, Qty 20+

0

11

Gravely 06529600

Nut, Center Lock .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03372951

Weldment, XL Bagger Frame

$574.99

$

Usually ships in 4-12 days

0
