891004 - Gravely 100i Series Bagger (SN: 000101 & Above) Counterweight Assembly Parts Diagram

100i Series Bagger

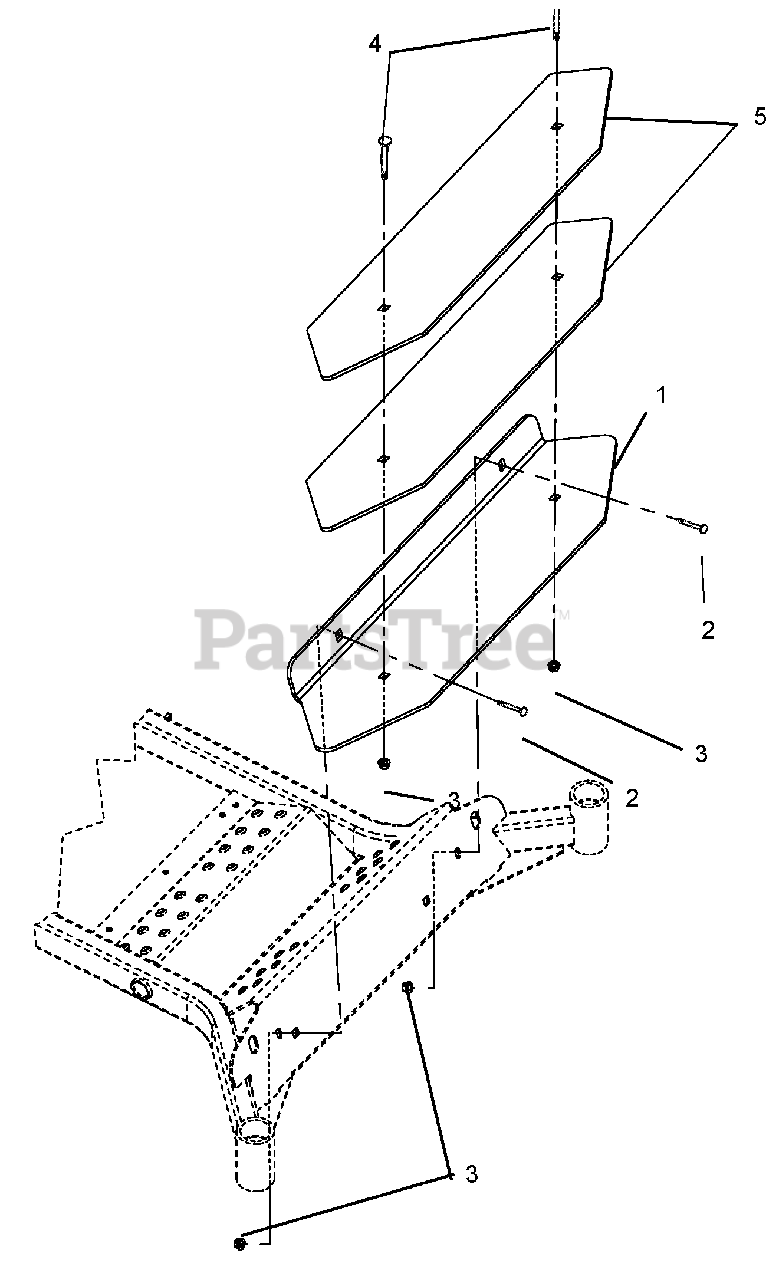

Counterweight Assembly Parts Diagram

  • Title

1

Gravely 03859451

Bracket, 100i Counterweight

$144.99

$

Usually ships in 4-12 days

0

2

Gravely 06224700

Bolt, Round Head Square Neck .50-13 x 1.25 Grade 5
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

3

Gravely 06543600

Nut, Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

5

Gravely 03859551

Counterweight, 100i

$113.99

$

Usually ships in 4-12 days

0
