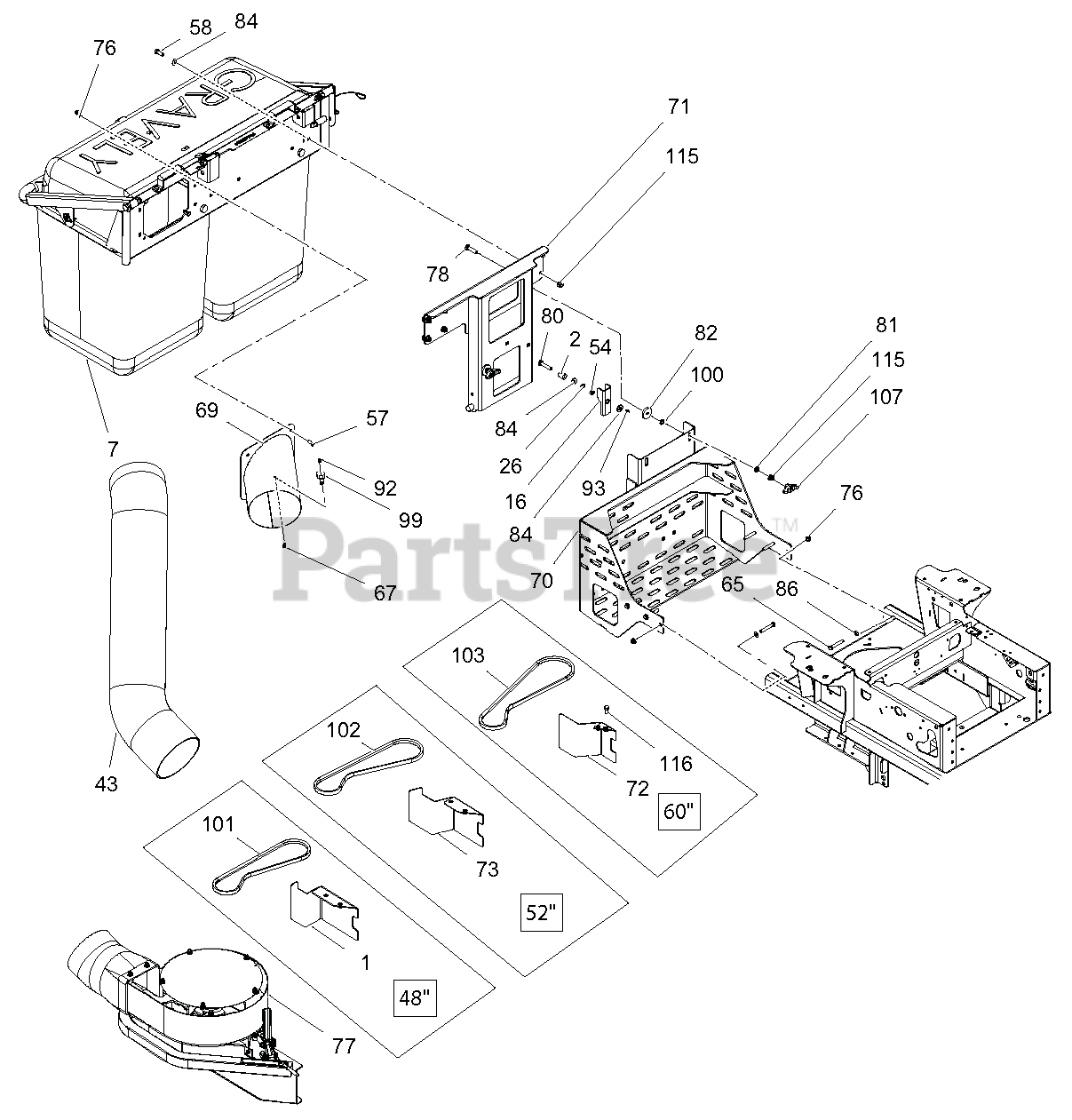

891006 - Gravely Bagger, Rear 2-Bag (SN: 000101 & Above) Mounting Assembly Parts Diagram

Bagger, Rear 2-Bag

Mounting Assembly Parts Diagram

  • Title

1

Gravely 04590651

48" FRT BLOWER BAFFLE WMT -BLK

$52.99

$

Usually ships in 4-12 days

0

2

Gravely 00186400

BSHG,SPCR .41 X .75 X .88 PM

$6.49

$

In Stock, only 2 left!

0

7

Gravely 00458900

HUMBOLDT 2-BAG(8BU)RECEPTACLE

Note: (8BU) RECEPTACLE

$

$

Not available

16

Gravely 00610751

LATCH - BAGGER UPPER MOUNT

$18.99

$

Usually ships in 4-12 days

0

26

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

Usually ships in 4-12 days

0

43

Gravely 04588400

HOSE BAGGER, 49"

$160.99

$

Usually ships in 4-12 days

0

54

Gravely 05508900

BSHG-SLV .377X.624X.235

$9.99

$

In Stock, only 2 left!

0

57

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

58

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

65

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

67

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

69

Gravely 04576851

BAGGER INLET TUBE WMT - BLACK

$70.99

$

Usually ships in 4-12 days

0

70

Gravely 04570251

2-BAG LOWER MOUNTING WMT - BLK

$422.99

$

Usually ships in 4-12 days

0

71

Gravely 01065451

WMT-UPPER MOUNT - 2 BAG

$210.99

$

Usually ships in 4-12 days

0

72

Gravely 04589851

60" FRT BLOWER BAFFLE WMT -BLK

$37.99

$

Usually ships in 4-12 days

0

73

Gravely 04589951

52" FRT BLOWER BAFFLE WMT -BLK

$56.99

$

Usually ships in 4-12 days

0

76

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

77

Gravely 59215900

BLOWER ASSEMBLY, SERVICE

$

$

Not available

78

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

80

Gravely 06224300

BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 11

0

81

Gravely 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

82

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

84

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

86

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

92

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

93

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

99

Gravely 07000026

THUMB LATCH

$9.99

$

In Stock, Qty 12

0

100

Gravely 07009900

NUT-PUSH .38 DIA. PAL ZINC

$2.49

$

Usually ships in 4-12 days

0

101

Gravely 07200634

V-BELT, 4L WRAPPED CLUTCHING

$29.99

$

In Stock, only 3 left!

0

102

Gravely 07200635

V-BELT, 4L WRAPPED CLUTCHING

$40.99

$

In Stock, only 1 left!

0

103

Gravely 07200636

V-BELT, 4L WRAPPED CLUTCHING

$38.99

$

In Stock, only 2 left!

0

107

Gravely 07500109

KNOB,WING .38-16 UNC NYL/TALC

$5.49

$

In Stock, Qty 7

0

115

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

116

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0
