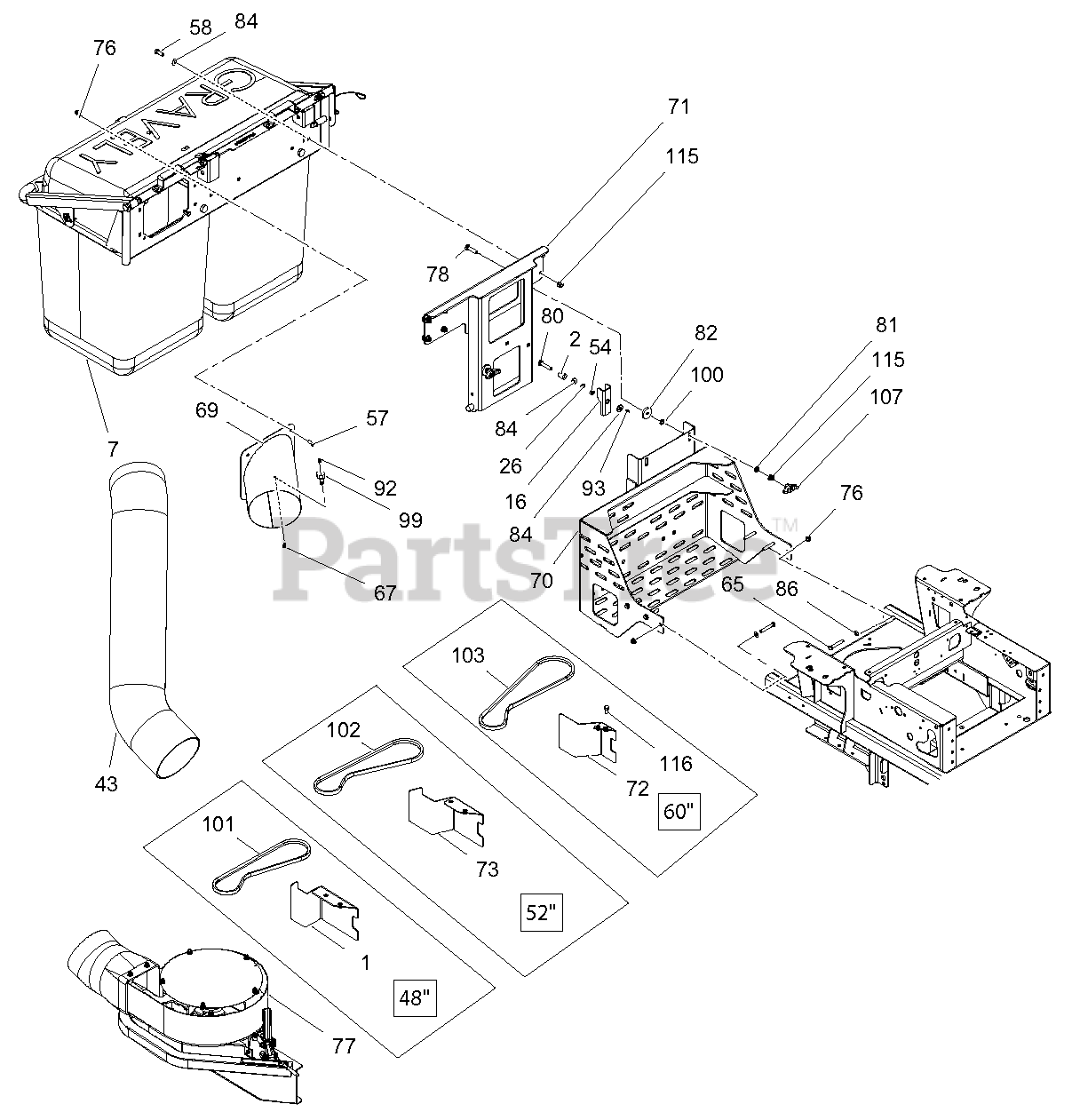

891006 - Gravely Bagger, Rear 2-Bag (SN: 000101 & Above) Mounting Assembly Parts Diagram

Bagger, Rear 2-Bag

Mounting Assembly Parts Diagram

  • Title

1

Gravely 04590651

WLDMT, 48" FRONT BLOWER BAFFLE-BLACK

$52.99

$

Usually ships in 4-12 days

0

2

Gravely 00186400

BSHG, SPCR .41 X .75 X .88 PM

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 00458900

HUMBOLT 2-BAG (8BU) RECEPTACLE

Note: (8BU) RECEPTACLE

$889.05

$

Usually ships in 4-12 days

0

16

Gravely 00610751

LATCH, BAGGER UPPER MOUNT-BLACK

$18.99

$

Usually ships in 4-12 days

0

26

Gravely 03704900

WAVE WASHER .640 X .875 X .125 FH

$2.49

$

Usually ships in 4-12 days

0

43

Gravely 04588400

HOSE, BAGGER 7 X 49

$160.99

$

Usually ships in 4-12 days

0

54

Gravely 05508900

BSHG, SLV .377 X .624 X .235

$9.99

$

In Stock, only 2 left!

0

57

Gravely 05947000

BLT-HEX .31-18 X .75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

58

Gravely 05948700

BLT-HEX .38-16 X 1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

65

Gravely 05963700

BLT-HEX .31-18 X 2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

67

Gravely 06116700

SCR-MCH 10-24 X .50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

69

Gravely 04576851

WLDMT, BAGGER INLET TUBE-BLACK

$70.99

$

Usually ships in 4-12 days

0

70

Gravely 04570251

WLDMT, 2-BAG LOWER MOUNTING BLACK

$422.99

$

Usually ships in 4-12 days

0

71

Gravely 01065451

WLDMT, 2-BAG UPPER MOUNT BLACK

$210.99

$

Usually ships in 4-12 days

0

72

Gravely 04589851

WLDMT, 60" FRONT BLOWER BAFFLE BLACK

$37.99

$

Usually ships in 4-12 days

0

73

Gravely 04589951

WLDMT, 52" FRONT BLOWER BAFFLE BLACK

$56.99

$

In Stock, only 1 left!

0

76

Gravely 06545400

NUT LK NYL FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

77

Gravely 59215900

BLOWER ASSEMBLY, SERVICE

$1644.99

$

Usually ships in 4-12 days

0

78

Gravely 06223800

BLT-RDHDSQNK .38-16 X 1.75 GBYZ
(Superseded to 06200417)

$4.99

$

In Stock, only 2 left!

0

80

Gravely 06224300

BLT-RDHDSQNK .38-16 X 2.00 GR5
(Superseded to 06200314)

$3.99

$

In Stock, Qty 9

0

81

Gravely 06306500

WSHR-LK .38 X .115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 14

0

82

Gravely 06400006

WASHER FL STL .406 X 1.50 X .245 YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

84

Gravely 06435900

WSHR FL STL .438 X 1.00 X .083 YWZC
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

86

Gravely 06437200

WSHR FL STL .344 X .688 X .065 YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

92

Gravely 06536000

NUT LK NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

93

Gravely 06542000

NUT, LK TOP FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

Usually ships in 4-12 days

0

99

Gravely 07000026

LATCH, THUMB

$9.99

$

In Stock, only 2 left!

0

100

Gravely 07009900

PUSHNUT

$2.49

$

In Stock, only 1 left!

0

101

Gravely 07200634

V-BELT, 4L WRAPPED CLUTCHING

$29.99

$

In Stock, only 4 left!

0

102

Gravely 07200635

V-BELT, 4L WRAPPED CLUTCHING

$40.99

$

In Stock, only 2 left!

0

103

Gravely 07200636

V-BELT, 4L WRAPPED CLUTCHING

$38.99

$

In Stock, only 2 left!

0

107

Gravely 07500109

KNOB, WING .38-16 UNC NYL/TALC

$5.49

$

In Stock, only 2 left!

0

115

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

116

Gravely 05959400

BLT-HEX .38-16 X .75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0
