891008 - Ariens Peco 2-Bag Bagger (SN: 000101 - 001999) Belt Drive Assembly Parts Diagram

Peco 2-Bag Bagger

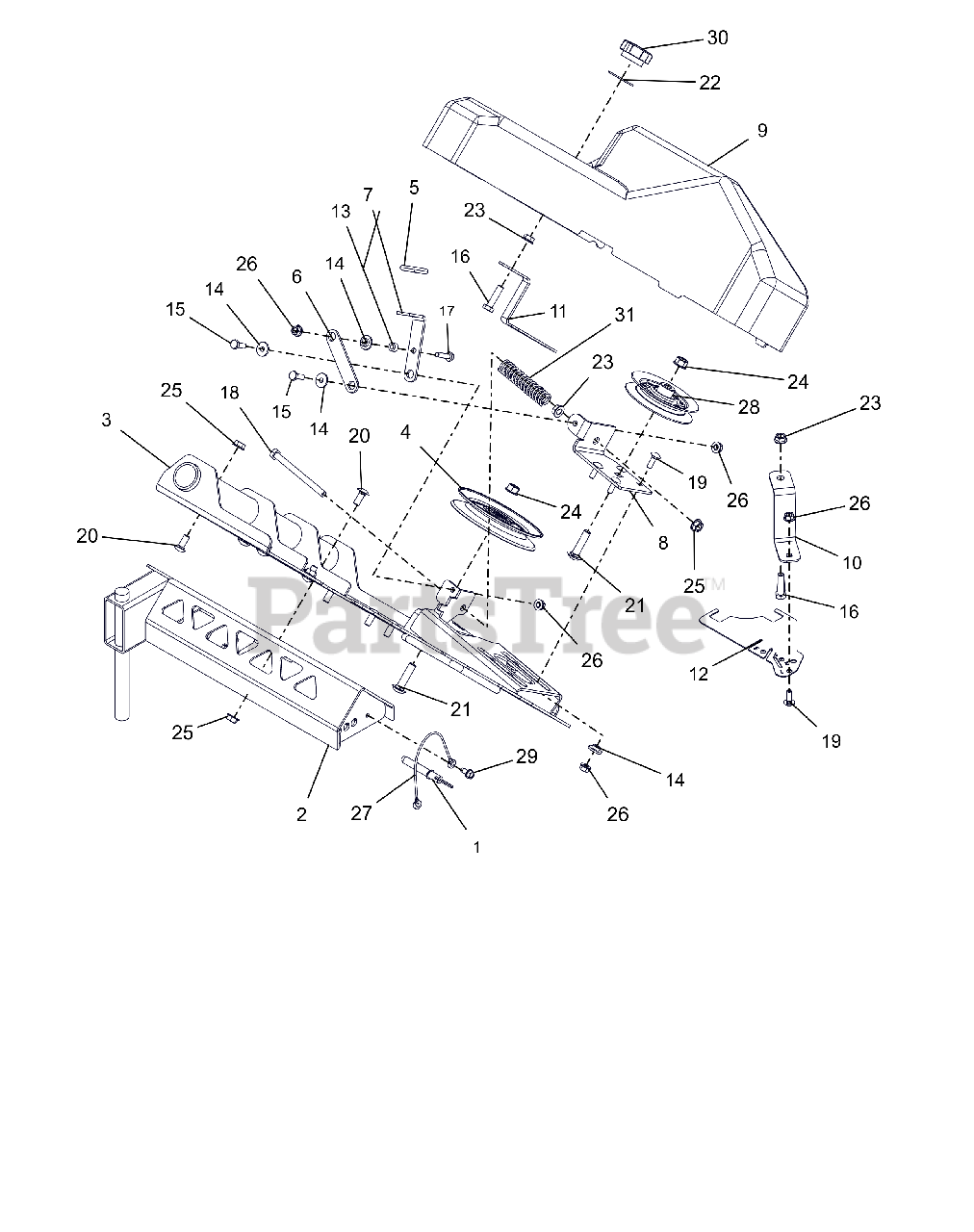

Belt Drive Assembly Parts Diagram

  • Title

1

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 15

0

2

Ariens 05143351

WLDMT, BLOWER MOUNT

$145.99

$

Usually ships in 4-12 days

0

3

Ariens 05143451

WLDMT, BLOWER SPINDLE MOUNT

$197.99

$

Usually ships in 4-12 days

0

4

Ariens 07335000

IDLER, V-5.00

$72.99

$

Usually ships in 4-12 days

0

5

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 04773951

LINK, TENSIONER

$8.49

$

Usually ships in 4-12 days

0

7

Ariens 04774051

HANDLE, TENSIONER

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 05144500

PLATE, TENSION PULLEY MOUNTING

$

$

Not available

9

Ariens 05146400

COVER, BELT HD BLOWER

$100.99

$

Usually ships in 4-12 days

0

10

Ariens 05146951

PLT, DECK COVER MNT

$11.99

$

Usually ships in 4-12 days

0

11

Ariens 05147151

PLT, COVER MNT

$26.99

$

Usually ships in 4-12 days

0

12

Ariens 05148300

PLT, TEMPLATE

$

$

Not available

13

Ariens 05501121

BUSHING, .26 ID X .44 OD X .26

$3.99

$

In Stock, Qty 5

0

14

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 4 left!

0

15

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

16

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

17

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

18

Ariens 05963200

@BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

20

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

21

Ariens 06225600

@BLT-RHDSSQNK .38-16X1.50 G5YZ
(Superseded to 06200328)

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

23

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

27

Ariens 06900317

CABLE, 12.0 LANYARD, NYLON

$3.99

$

In Stock, only 2 left!

0

28

Ariens 07327600

V-IDLER, 4.00X.38

$39.99

$

In Stock, Qty 20+

0

29

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

31

Ariens 08300709

SPRING, COMPRESSION

$14.99

$

Usually ships in 4-12 days

0
