891008 - Gravely Peco 2-Bag Bagger (SN: 002000 & Above) Bagger And Hose Parts Diagram

Peco 2-Bag Bagger

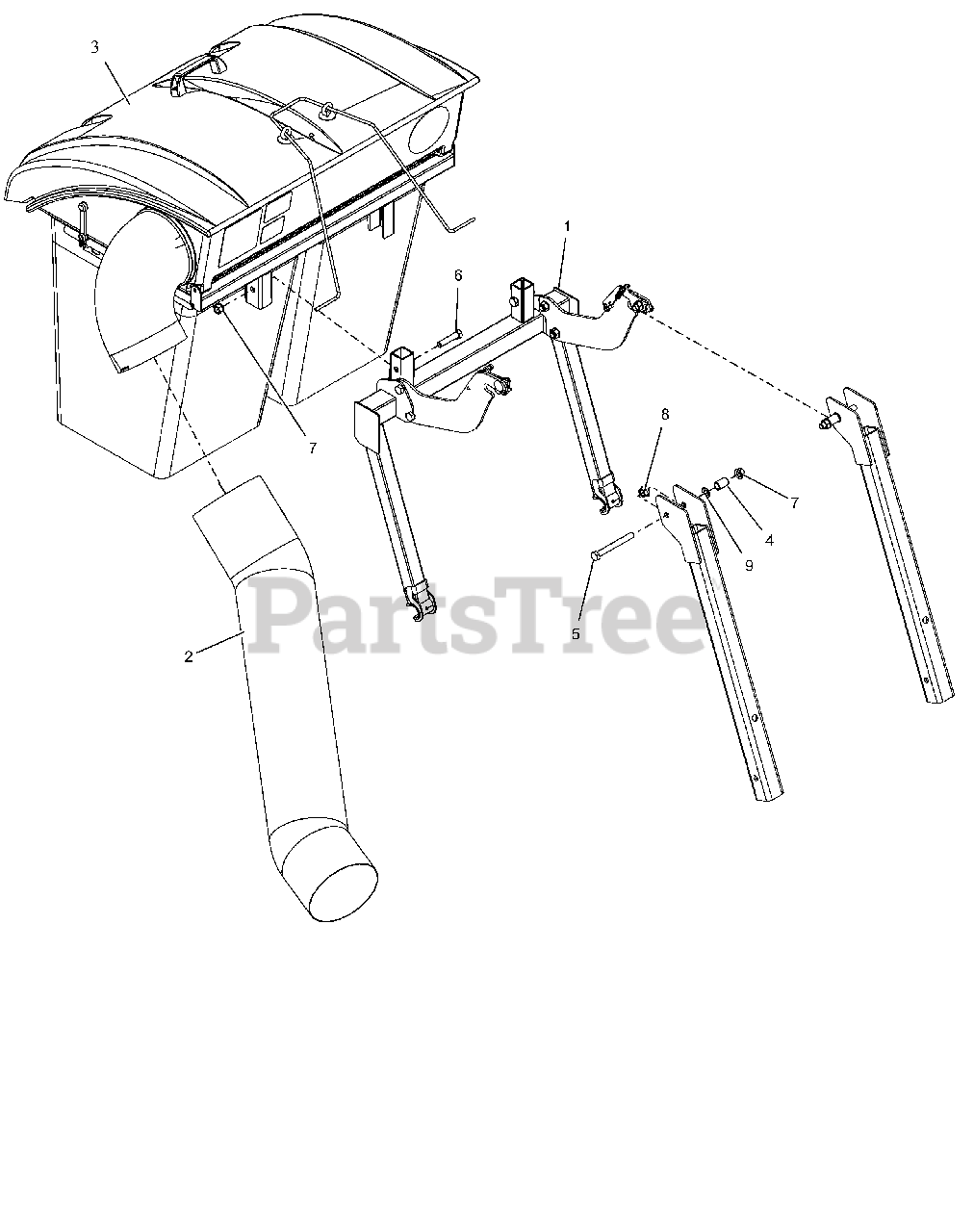

Bagger And Hose Parts Diagram

  • Title

1

Gravely 05129751

WLDMT, BAGGER POST HD BLACK

$245.99

$

Usually ships in 4-12 days

0

2

Gravely 04222900

HOSE, FLEXIBLE-47"

$113.99

$

In Stock, only 1 left!

0

3

Gravely 05192000

BAGGER, PECO 2-BAG RECEPTACLE

$814.99

$

Usually ships in 4-12 days

0

3

Gravely 21576400

CLAMP, 7' BAGGER HOSE

Note: Component Service Part

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 21564300

HOOD ASM PECO 2 BAG

Note: Component Service Part

$749.99

$

Usually ships in 4-12 days

0

3

Gravely 21564400

FRAME ASM PECO 2 BAG

Note: Component Service Part

$475.99

$

Usually ships in 4-12 days

0

3

Gravely 21562400

RUBBER HOOD STRAP

Note: Component Service Part

$30.99

$

In Stock, only 2 left!

0

3

Gravely 21562800

HANDLE

Note: Component Service Part

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 21562900

ROPE, BAGGER RELEASE

Note: Component Service Part

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 21563000

ELBOW, PECO BAGGER

Note: Component Service Part

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 09357700

SPACER .510 X .75 X 1.1485

$3.99

$

In Stock, Qty 13

0

5

Gravely 05900102

@BLT-HEX .5-13-4.5GR8 FULL THD
(Superseded to 05901736)

$11.99

$

In Stock, only 2 left!

0

6

Gravely 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

7

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, only 1 left!

0
