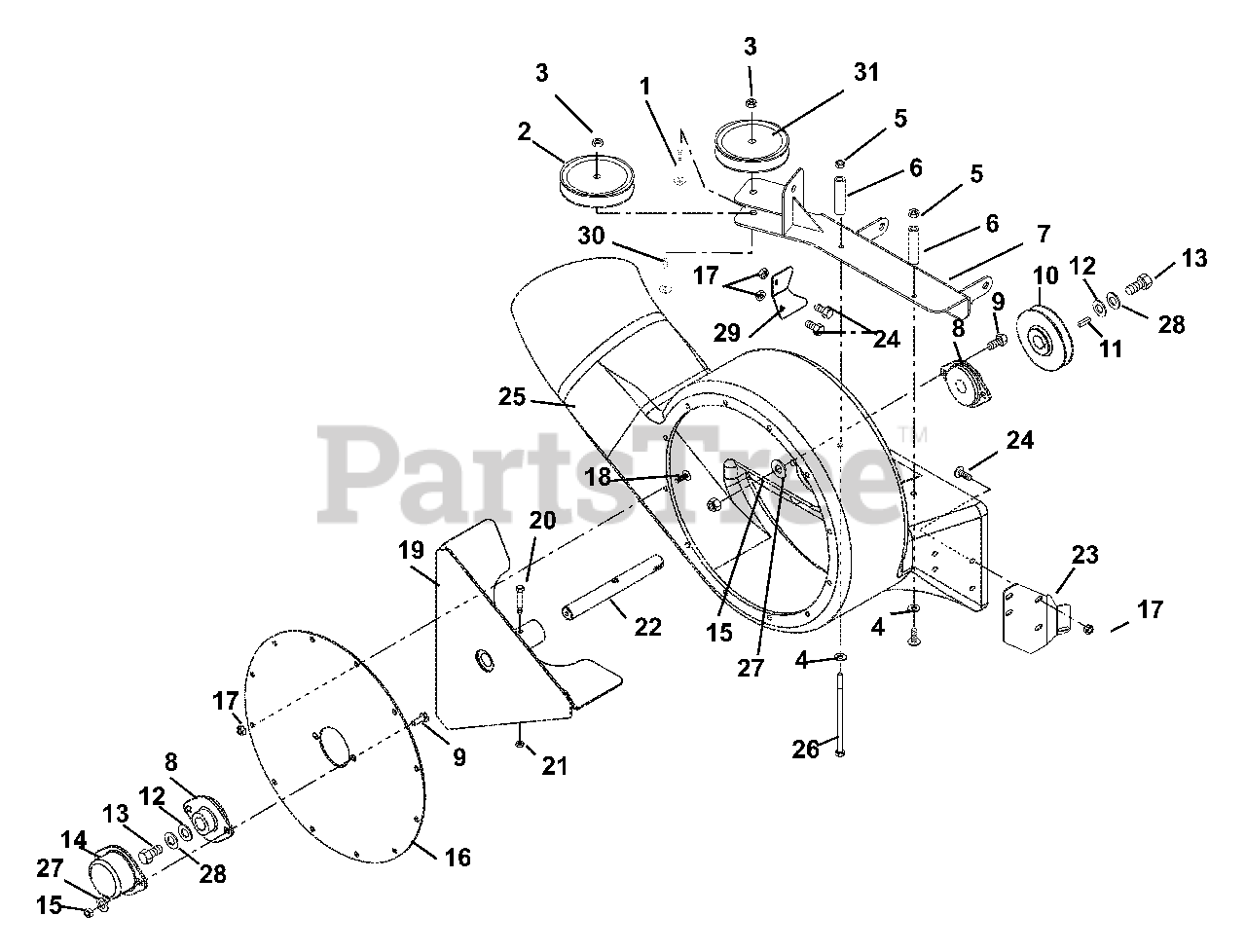

892004 - Ariens 50" Grass Bagger (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

50" Grass Bagger

Blower Housing Assembly Parts Diagram

  • Title

1

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.99

$

In Stock, only 3 left!

0

3

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

5

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 09261000

SPACER

$

$

Not available

7

Ariens 09287751

WMT - BRACKET - MOUNTING
(Superseded to 09287700)

$

$

Not available

8

Ariens 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$45.99

$

In Stock, Qty 13

0

9

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

10

Ariens 03685400

PULLEY, DRIVEN 3.50

$

$

Not available

11

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 3 left!

0

Ariens 026273

KEY-SQ .187 X .50 X .187
(Superseded to 06606000)

Note: (Gravely Part Number)

$10.99

$

In Stock, only 3 left!

0

12

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

13

Ariens 05952300

BLT-HEX .25-28X.75 GR5 YWZC

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 03687400

COVER-BEARING

$41.99

$

Usually ships in 4-12 days

0

15

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 03684900

PLATE-BEARING MOUNTING

$

$

Not available

17

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

18

Ariens 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 03685200

IMPELLER, GRASS PUMP

$

$

Not available

20

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

21

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03685100

SHAFT, GRASS PUMP - .75 OD

$68.99

$

Usually ships in 4-12 days

0

23

Ariens 09228300

BRACKET-MOUNTING,DECK TO PUMP

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 17

0

25

Ariens 09261100

HOUSING - GRASS PUMP

$

$

Not available

26

Ariens 05978100

@BLT-HEX .25-20X4.50 GR5 YWZC

$

$

Not available

27

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

28

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

29

Ariens 09260551

BRACKET-DECK STOP

$

$

Not available

30

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

31

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 9
